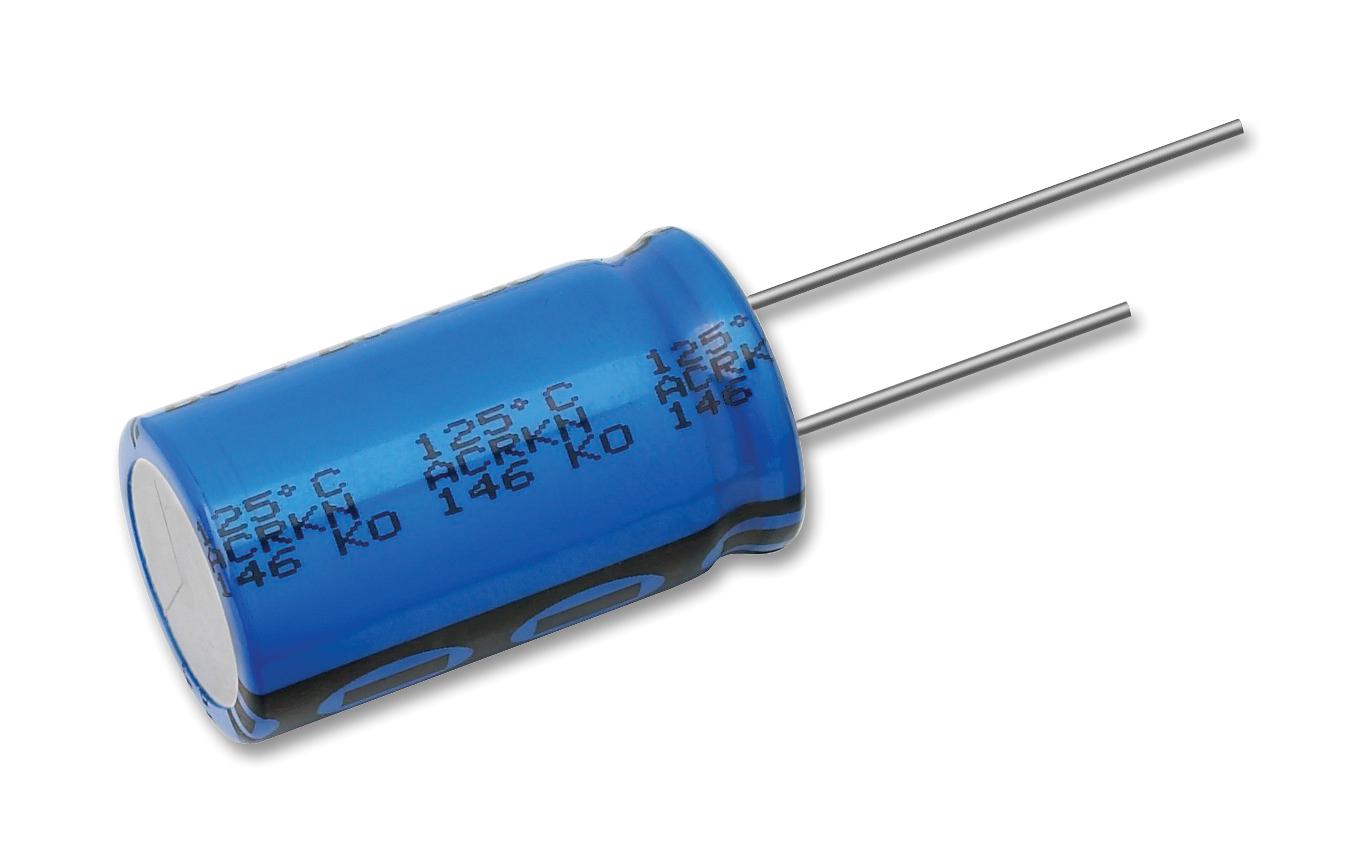

Vishay MAL214658101E3 Aluminum Electrolytic Capacitors
The Vishay 146 RTI series features aluminum electrolytic capacitors designed for high temperature and low impedance applications. With a long useful life of 2500 to 6000 hours at 125°C, these polarized cylindrical capacitors are suited for power supplies, filtering, and buffering in industrial, automotive, telecommunications, and military equipment. They have radial leads, pressure relief, blue PET insulation, and are RoHS compliant. They offer excellent ripple current capability, charge/discharge proof, high reliability, and high stability, making them ideal for demanding environments demanding durable, high-performance capacitors.
Vishay MAL214658101E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes from 10 x 12 mm to 18 x 35 mm
- Rated capacitance 68 uF to 6800 uF
- Tolerance: +20% (IEC 60062, code M)
- Rated voltage 16 V to 63 V
- Useful life at 125°C: 2500 to 6000 hours
- Operating temperature: -55°C to +125°C
- Pressure relief, blue PET sleeve insulation
- Very low ESR, high ripple current capability
- Polarized electrolytic, non-solid electrolyte
- Climatic category IEC 60068 55/125/56
- Marked with series number 146, date code, and factory code
- Case dimensions conform to IEC standards, radial lead configuration
- RoHS compliant and AEC-Q200 qualified
- UL Listed, CSA Certified
Buy the Buy Vishay Aluminum Electrolytic Capacitors Part Number MAL214658101E3 Online
Purchase Vishay aluminum electrolytic capacitors online today to ensure high performance, durability, and reliability in demanding electronic and industrial applications. These capacitors feature long useful life at elevated temperatures, low impedance, and excellent ripple current capabilities. Ideal for power supplies, filtering, and buffering in automotive, telecommunication, and military systems, they support demanding environmental conditions. With RoHS compliance and a pressure relief feature, buying online provides quick, secure access to high-quality, certified capacitors that meet technical standards for longevity and stability.
Buy Vishay MAL214658101E3 capacitors now and experience unmatched reliability and high-temperature stability for your power supply needs.
Frequently Asked Questions
Where can I buy Vishay MAL214658101E3?
You can click on the BUY or RFQ button to purchase MAL214658101E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214658101E3?
You can download the MAL214658101E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214658101E3?
Vishay
