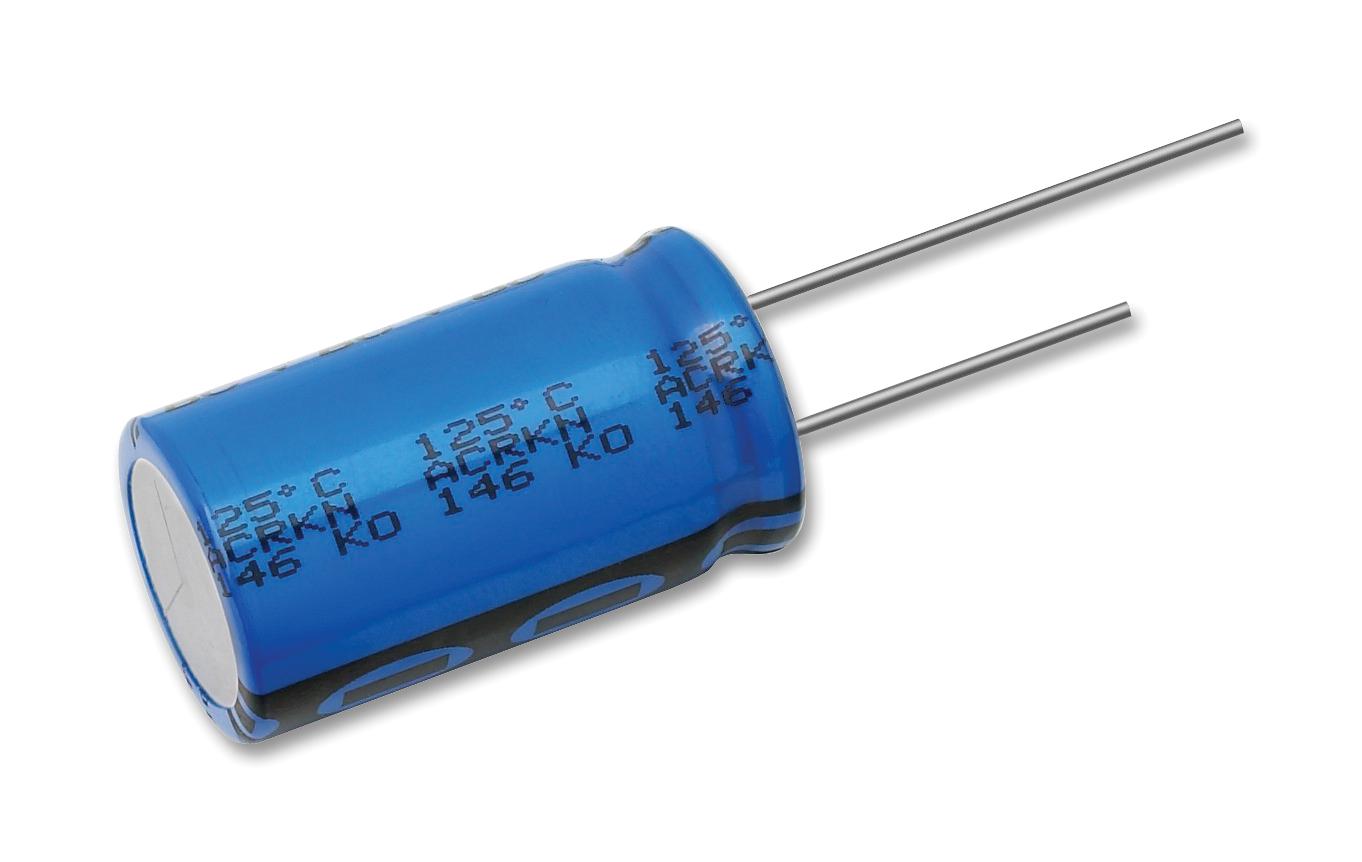

Vishay MAL214658102E3 aluminum electrolytic capacitor
These high-temperature aluminum electrolytic capacitors are designed for demanding industrial and automotive applications, offering long useful life, high stability, and low impedance. Featuring radial leads, cylindrical aluminum cases with pressure relief, they are ideal for power supplies, smoothing, filtering, and buffering in challenging environments. Qualified under AEC-Q200 and RoHS compliant, they withstand ripple currents and provide reliable performance at 125°C, with lifespan ranging from 2500 to 6000 hours depending on the model. Their robust construction ensures charge and discharge proof operation with excellent ripple current capacity.
Vishay MAL214658102E3 aluminum electrolytic capacitor Specifications:
- Capacitance Range: 68 UF to 6800 UF
- Rated Voltage: 16 V to 63 V
- Useful Life at 125°C: 2500 h to 6000 h
- Case Sizes: 10 x 12 mm to 18 x 35 mm
- Materials: Cylindrical aluminum case, blue PET sleeve insulation
- Operating Temperature: -40°C to +125°C
- Ripple Current Capability: Excellent, specified at 100 kHz
- RoHS Compliant, AEC-Q200 Qualified
- Charge and Discharge Proof Design
- Pressure Relief Incorporation for Safety
- Leakage Current: Max 0.01 Cax Un + 3 HA after 2 min at Ur
Buy the Vishay 146 RTI – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Purchase Vishay 146 RTI aluminum electrolytic capacitors online today to ensure reliable, high-temperature performance in industrial, automotive, and telecommunications power supplies. These capacitors offer long lifespan, excellent ripple current capability, and construction features like pressure relief for safety. With ratings up to 6800 microfarads and 63 volts, they suit smoothing, filtering, and buffering tasks in demanding environments. Easy to order and ideal for OEM and repair applications, optimize your power solutions with these high-quality, RoHS compliant capacitors available online now.
Get Vishay 146 RTI today—built for long-lasting durability and high stability in industrial and automotive power systems.
Frequently Asked Questions
Where can I buy Vishay MAL214658102E3?
You can click on the BUY or RFQ button to purchase MAL214658102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214658102E3?
You can download the MAL214658102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214658102E3?
Vishay
