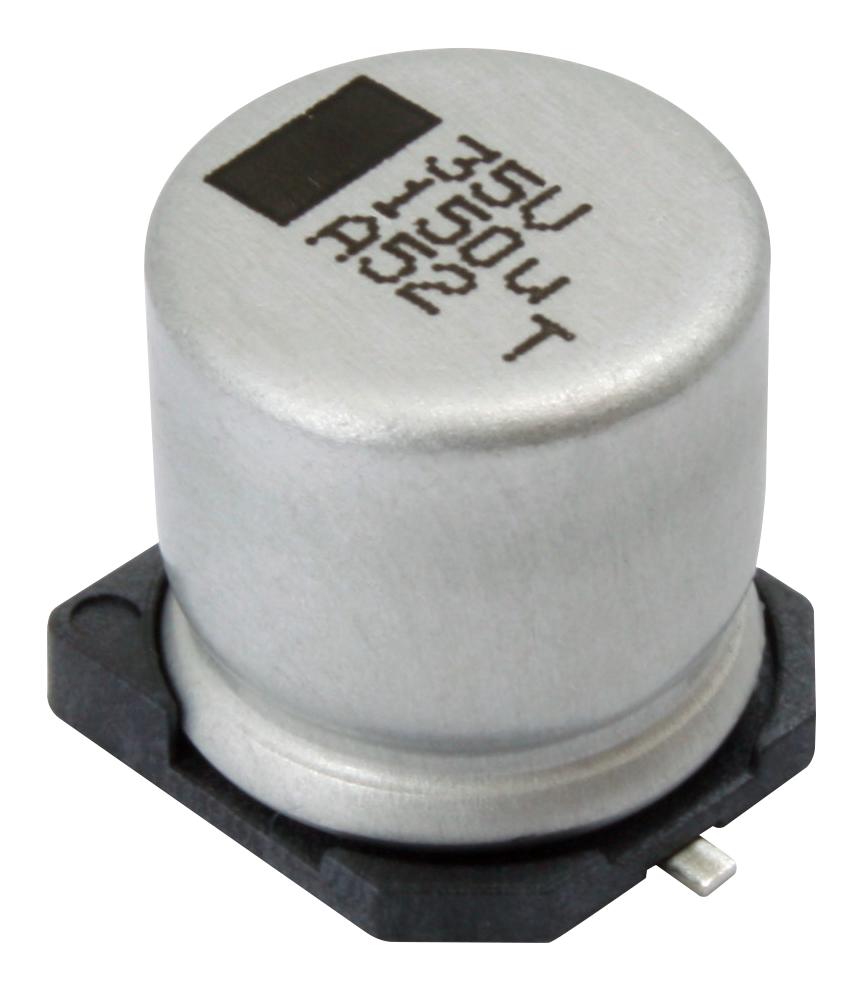

Vishay MAL214699109E3 Aluminum Electrolytic Capacitor
High-temperature, low-impedance aluminum electrolytic capacitors designed for surface-mount technology, offering extended useful life up to 6000 hours at 125°C. These RoHS-compliant, self-healing capacitors feature low ESR, high reliability, and are suitable for industrial, automotive, telecom, filtering, and buffering applications. They withstand reflow soldering with JEDEC® J-STD-020, are vibration proof, and come in various sizes with taped reel packaging for automatic placement.
Vishay MAL214699109E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 8x8x10 mm to 18x18x21 mm
- Rated capacitance: 10 pF to 4700 pF
- Tolerance: +20%
- Rated voltage: 16 V to 100 V
- Temperature range: -55°C to +125°C
- Endurance: 1000 h to 5000 h at 125°C
- Useful life: 1500 h to 6000 h at 125°C, up to 400,000 h at 40°C
- Shelf life: 1000 h at 0 V, 125°C
- Low ESR, vibration proof, RoHS compliant, self-healing, suitable for reflow soldering
- Markings include rated capacitance, voltage, date code, cathode marker, and group code
- Supplied taped on reels, compatible with automatic placement
- Soldering: JEDEC® J-STD-020 compliant reflow process with recommended pad dimensions
- Maximum Tpeak: 260°C for profiles, with controlled ramp-up rates
- Ripple current: up to 600mA to several amps depending on size and application
- Impedance and dissipation factor vary with frequency and temperature, ensuring reliable operation
Buy the Buy Vishay Aluminum Electrolytic Capacitors Part Number MAL214699109E3 Online
Discover the high-temperature, low-impedance aluminum electrolytic capacitors suitable for industrial and automotive applications. With extended life up to 6000 hours at 125°C, RoHS compliance, and vibration-proof design, these surface-mount components are ideal for filtering, smoothing, and buffering. Offered in various sizes and taped reels for automated placement, they are designed for reliable operation in harsh environments. Purchase online now to ensure your projects benefit from Vishay's trusted reliability, advanced soldering compatibility, and high stability under extreme conditions.
Order your Vishay aluminum electrolytic capacitor MAL214699109E3 today and benefit from reliable quality and high-temperature performance for demanding industrial applications.
