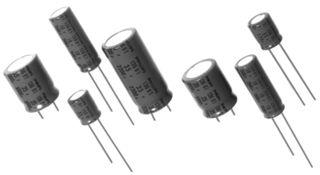

Vishay MAL215060222E3 Aluminum Capacitor
This aluminum electrolytic capacitor features radial miniature construction with low impedance and ESR, ideal for power supply smoothing, filtering, and buffering. It offers a long service life of up to 10,000 hours at 105°C, high stability, and reliability. The capacitor is polarized, with non-solid electrolyte, pressure relief, and insulated with a blue sleeve. Suitable for industrial, automotive, audio-video, and telecommunication applications, it provides excellent ripple current capability and withstands charge and discharge cycles efficiently.
Vishay MAL215060222E3 Aluminum Capacitor Specifications:
- Nominal Capacitance: 100 UF to 8200 UF
- Rated Voltage: 10 V to 100 V
- Temperature Range: -55°C to +105°C
- Endurance: 3000 h to 10 000 h at 105°C
- Useful Life: 4000 h to 10 000 h at 105°C
- Case Sizes: 8x12 mm to 18x40 mm
- Material: Aluminum electrolyte, non-solid
- Pressure Relief: Yes
- Insulation: Blue insulated sleeve
- RoHS Compliant
- AEC-Q200 Qualified
Buy the Vishay Series 150 Aluminum Capacitor: MAL215060222E3
Purchase the Vishay aluminum capacitor MAL215060222E3 online today to ensure your power systems operate with high reliability and efficiency. Designed for long-lasting performance up to 10,000 hours at 105°C, it features low impedance and ESR for superior filtering, smoothing, and buffering. Ideal for industrial, automotive, and audio-video applications, this capacitor offers excellent ripple current capacity, pressure relief, and insulation with a blue sleeve. Secure fast delivery and expert support when you buy online now.
Buy Vishay MAL215060222E3 now and experience unmatched reliability and performance in power supply filtering and industrial electronics.
Frequently Asked Questions
Where can I buy Vishay MAL215060222E3?
You can click on the BUY or RFQ button to purchase MAL215060222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215060222E3?
You can download the MAL215060222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215060222E3?
Vishay
