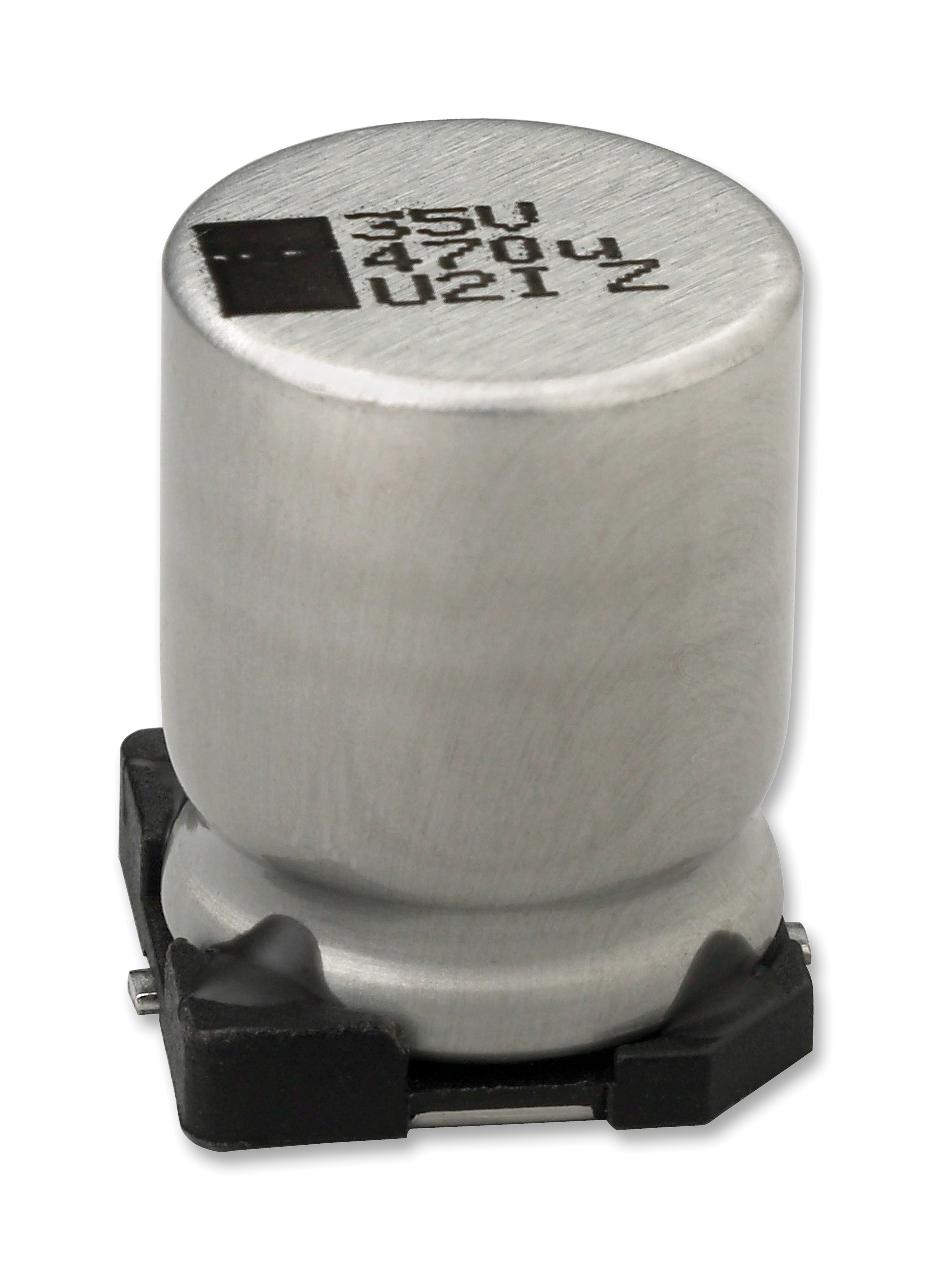

Vishay MAL215097802E3 Aluminum Capacitors
Vishay BCcomponents offers the 150 CRZ series of aluminum SMD capacitors designed for high-temperature reflow soldering in industrial, automotive, and telecommunications applications. These polarized electrolytic capacitors feature very low impedance, high ripple current capabilities, and extended useful life up to 10,000 hours at 105 °C. They provide reliable performance in smoothing, filtering, and buffering circuits with RoHS compliance and AEC-Q200 qualification, ensuring high stability, low ESR, and vibration resistance for demanding environments.
Vishay MAL215097802E3 Aluminum Capacitors Specifications:
- Nominal case sizes: 8x8x10 to 18x18x21 mm
- Rated capacitance range: 4.7 μF to 10,000 pF
- Tolerance on capacitance: +20%
- Rated voltage range: 6.3 V to 100 V
- Category temperature range: -55°C to +105°C (6.3V-63V), -40°C to +105°C (80V-100V)
- Endurance test at 105°C: 2000 h to 8000 h
- Useful life at 105°C: 2500 h to 10,000 h
- Useful life at 40°C: 125,000 h to 500,000 h
- Shelf life at 0 V, 105°C: 1000 h
- High reliability, vibration proof, RoHS compliant, AEC-Q200 qualified
- Capacitance ripple current: high ripple current capability at 100 kHz
- Leakage current after 2 min at Up: 0.01 x Cr x Un
- Equivalent series resistance: very low ESR, typical at 100 Hz
Buy the Vishay 150 CRZ U– Reliable Aluminum Capacitors for Industrial Applications
Discover the Vishay 150 CRZ series of aluminum SMD capacitors designed for high-temperature and high-reliability industrial, automotive, and telecom applications. These RoHS-compliant, vibration-proof capacitors feature low ESR, very high ripple current capacity, and extended useful life up to 10,000 hours at 105°C. Ideal for filtering, smoothing, and buffering in demanding environments, they provide excellent performance with stable electrical characteristics. Purchase online today to enhance your circuit reliability and ensure long-term operational stability.
Order your Vishay 150 CRZ Series aluminum electrolytic capacitors today and ensure high reliability and extended life for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay MAL215097802E3?
You can click on the BUY or RFQ button to purchase MAL215097802E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215097802E3?
You can download the MAL215097802E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215097802E3?
Vishay
