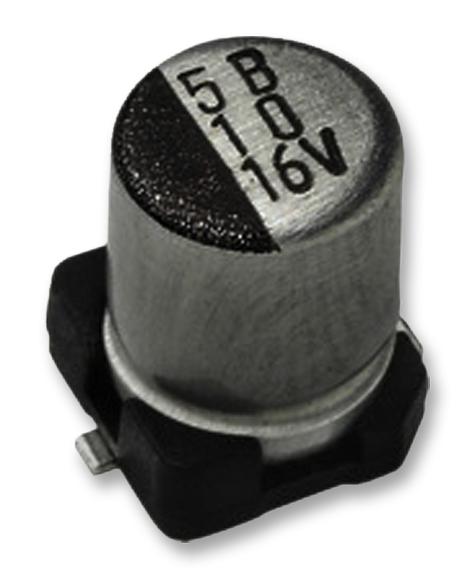

Vishay MAL215376331E3 Aluminum Capacitors
Vishay BCcomponents 153 CRV aluminum electrolytic capacitors are high-temperature, long-life SMD (chip) vertical components designed for automatic PCB placement. These polarized capacitors feature non-solid electrolyte with self-healing properties, offering high capacitance per volume for applications requiring coupling, decoupling, filtering, buffering, and timing. They are RoHS compliant, lead-free, and supplied in blister tape on reels. Suitable for telecommunications, industrial, automotive, and portable equipment, they withstand extensive thermal endurance and have a shelf life of up to 1000 hours at 105°C, making them reliable for demanding environments.
Vishay MAL215376331E3 Aluminum Capacitors Specifications:
- Nominal case sizes: 4.0x4.0x5.3 mm to 10x10x14 mm
- Rated capacitance range: 0.47 to 1000 uF
- Tolerance: ±20%
- Rated voltage range: 6.3 to 100 V
- Category temperature range: -55 to +105°C
- Endurance: 2000 to 3000 hours at 105°C depending on size
- Useful life: Up to 300,000 hours at 40°C with 1.3xIp applied
- Shelf life: 1000 hours at 105°C
- Lead material: RoHS compliant, lead-free
- Packaging: Blister tape on reel
- Mounting: Automatic placement, suitable for reflow soldering
- Impedance: Low ESR at 100 kHz, typically 0.24 to 0.30 Ω
- Ripple current: Specified up to 1.35x at certain frequencies
- Maximum reflow soldering temperature: 250°C with controlled profile
- Lifetime at 105°C: 2000 to 3000 hours depending on the size
- Climatic category IEC 60068: 55/105/56
- RoHS compliant, lead-free
- Voltage surge: 1.15× Up
- Leakage current: Less than 0.01× Cr after 2 minutes at Up
Buy the Vishay Series 153 CRV Aluminum Capacitors: MAL215376331E3
Enhance your electronic designs with Vishay 153 CRV long-life aluminum electrolytic capacitors. These high-temperature, RoHS-compliant SMD components provide excellent filtering, decoupling, and buffering capabilities. Their compact size and vertical construction enable efficient PCB layouts for industrial, automotive, and telecom applications. With a lifespan up to 3000 hours at 105°C and reliable performance at high ripple currents, they are ideal for demanding environments. Order online today and benefit from fast delivery, quality assurance, and competitive pricing for your project needs.
Buy Vishay 153 CRV aluminum electrolytic capacitors now and experience unmatched reliability and performance in demanding electronic applications.
