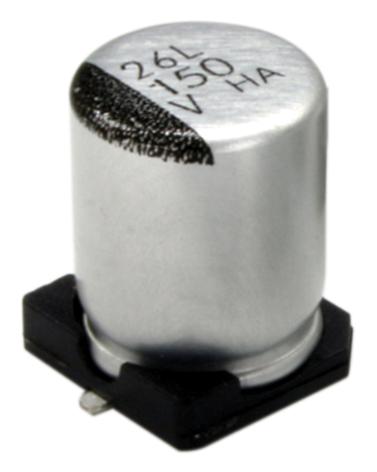

Vishay MAL218397104E3 Hybrid Capacitor
These high-reliability hybrid conductive polymer aluminum capacitors are designed for automotive, industrial, and telecommunication applications. They feature long useful life of up to 4000 hours at 125°C, very low ESR, high ripple current capacity, and can operate at voltages up to 80 V. The SMD version with a base plate is lead-free reflow solderable, making them suitable for automatic placement on printed circuit boards. They comply with RoHS standards and are IEC 60384-25 / CECC 32300 compliant, ensuring durability and high performance in demanding environments.
Vishay MAL218397104E3 Hybrid Capacitor Specifications:
- Nominal case sizes: 5.0 x 5.0 x 5.8 mm to 10.0 x 10.0 x 10.5 mm
- Rated capacitance range: 10 µF to 330 µF
- Tolerance on Cr: ±20%
- Rated voltage range: 25 V to 80 V
- Category temperature range: -55°C to +125°C
- Endurance at 125°C: 4000 hours
- Useful life at 125°C: 4000 hours
- Shelf life at 0 V, 125°C: 1000 hours
- RoHS compliant, AEC-Q200 qualified on request
- Designed for automatic SMT placement with lead-free reflow soldering
- Climatic category IEC 60068: 55 / 125/56
- Maximum reflow cycles: 2
- ESR at 100 kHz: as low as 0.08 mΩ depending on series
- Ripple current: up to 1600 mA at 125°C
- Maximum leakage current: specified per series
- Peak reflow temperature: 240°C for lead-free reflow
Buy the Vishay Series CPHT Hybrid Conductive Polymer Aluminum Capacitors: MAL218397104E3
Order Vishay MAL218397104E3 online today to ensure your electronic designs benefit from advanced hybrid conductive polymer technology. These capacitors offer durable performance across automotive, industrial, and telecom sectors, featuring a long lifespan of 4000 hours at 125°C, very low ESR, and high ripple current handling up to 80 V. Their lead-free, reflow-solderable SMD design simplifies assembly. With RoHS compliance and IEC 60384-25 / CECC 32300 standards, buy now for dependable, high-quality power management in your projects.
Buy Vishay MAL218397104E3 now and experience unmatched reliability and high-performance stability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay MAL218397104E3?
You can click on the BUY or RFQ button to purchase MAL218397104E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL218397104E3?
You can download the MAL218397104E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL218397104E3?
Vishay
