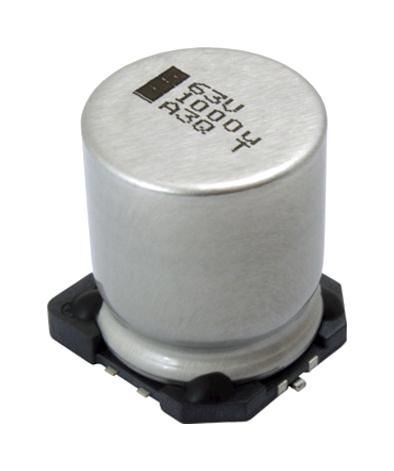

Vishay MAL219299606E3 High Voltage SMD Capacitor
The 192 CTX series aluminum electrolytic capacitors are surface-mount, high-voltage devices designed for industrial, automotive, and telecommunication applications. With a temperature range of -40°C to +125°C, they offer extended life up to 2500 hours at 125°C, high reliability, and advanced reflow soldering suitability according to JEDEC standards. These capacitors feature a rated voltage of 400 V, capacitance from 2.2 uF to 33 pF, and are suitable for filtering, smoothing, and buffering in demanding environments, with RoHS compliance and robust performance across various conditions.
Vishay MAL219299606E3 High Voltage SMD Capacitor Specifications:
- Nominal case sizes: 10x 10x 10 mm to 18x 18x 21 mm
- Rated capacitance: 2.2 uF to 33 pF with +20% tolerance
- Rated voltage: 400 V
- Temperature range: -40°C to +125°C
- Endurance: 1000 to 2500 hours at 125°C
- Useful life: up to 150,000 hours at 40°C
- Frequency for ripple current: 100 Hz to 10 kHz, up to 400 A
- RoHS compliant, non-solid electrolyte, self-healing
- Advanced reflow soldering according to JEDEC J-STD-020
- Vibration resistant, AEC-Q200 qualified
- Marking includes capacitance, voltage, date code, cathode indicator
Buy the Vishay 192 CTX – Reliable High Voltage Capacitors for Industrial Applications
Discover the Vishay 192 CTX series surface-mount aluminum electrolytic capacitors, engineered for high voltage applications in industrial, automotive, and telecom sectors. Featuring a rated voltage of 400 V and a capacitance range from 2.2 uF to 33 pF, these capacitors excel in filtering, smoothing, and buffering functions. They are designed for reflow soldering per JEDEC standards, offering high reliability, vibration resistance, and long operational life up to 2500 hours at 125°C. Order online today for exceptional quality and durability in critical applications.
Get Vishay 192 CTX capacitors today—built for high reliability, extended life, and optimal performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay MAL219299606E3?
You can click on the BUY or RFQ button to purchase MAL219299606E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL219299606E3?
You can download the MAL219299606E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL219299606E3?
Vishay
