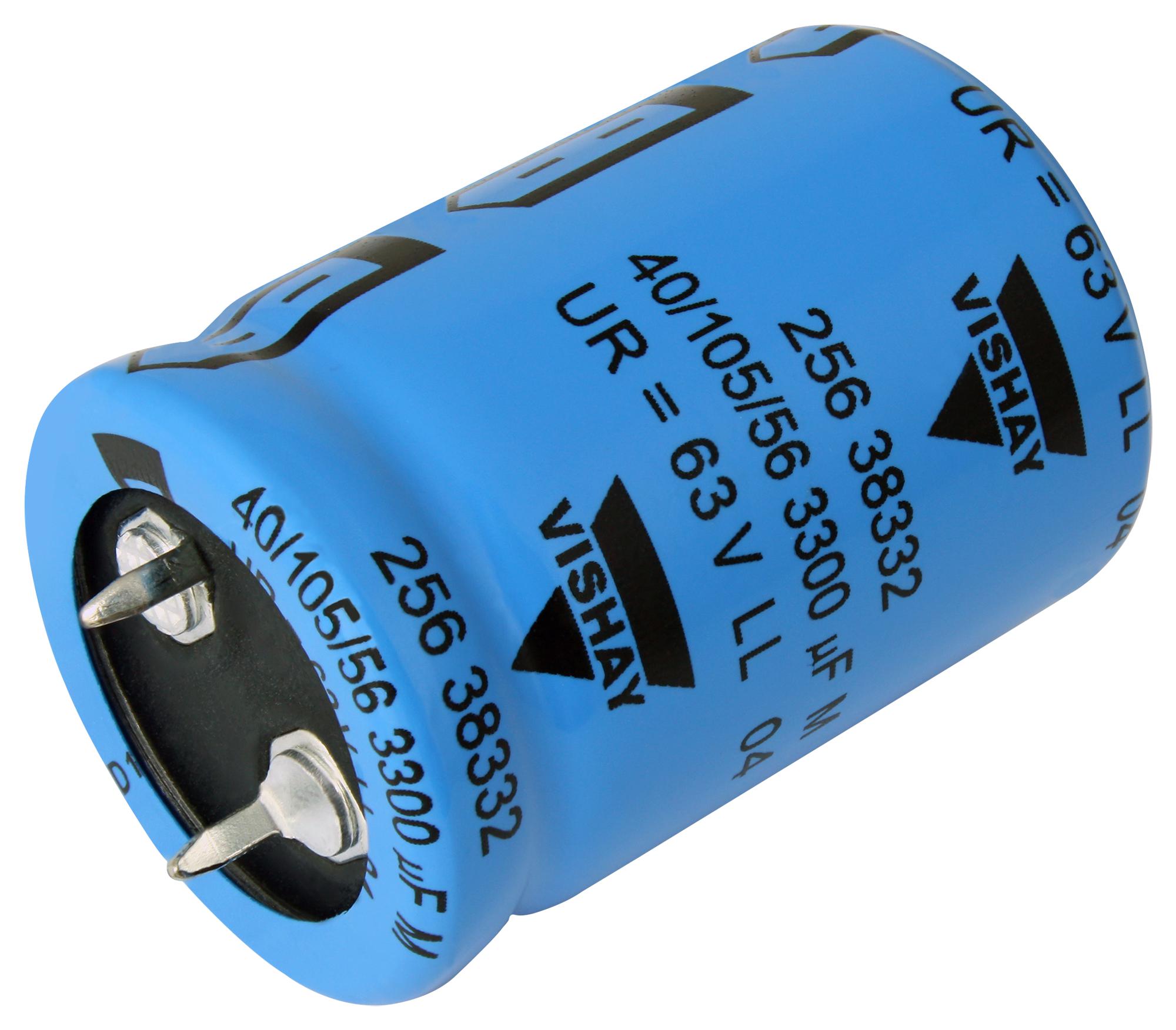

Vishay MAL219359391E3 Aluminum Electrolytic Capacitors
Vishay aluminum electrolytic capacitors of the PUR-SI series offer high ripple current capability, compact design, and reliable performance for power supplies, motor controls, and solar inverters. These polarized capacitors feature non-solid electrolyte, enhanced thermal endurance up to 105°C, and available ratings up to 500 V. They provide long useful life of 5000 hours at 105°C, making them suitable for demanding industrial and energy applications. Marked with detailed info including capacitance, voltage, and manufacturing details, they ensure easy identification and safe operation.
Vishay MAL219359391E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22x 25 mm to 35x 60 mm
- Rated capacitance: 47 UF to 820 UF
- Tolerance on capacitance: + 20%
- Rated voltage: 400 V, 450 V, 500 V
- Category temperature range: -40°C to 105°C
- Endurance test at 105°C: 2000 hours
- Useful life at 105°C: 5000 hours
- Shelf life at 0 V, 105°C: 1000 hours
- Ripple current at 100 Hz and 105°C: Up to 1.78 A depending on size
- Leakage current after 5 minutes at rated voltage: < 0.01 Ca x Un
- Maximum ESR at 100 Hz: 0.69 to 3.27 mΩ depending on capacitance and size
- Maximum impedance at 10 kHz: 566.8 to 16821 mΩ depending on size
- Maximum inductance: Typ. 19 nH, Max. 25 nH
- Mounting: Two or three terminal snap-in, with mounting hole diagrams
- Operating temperature: -40°C to 105°C
- Compliance: RoHS, IEC 60384-4, EN 130300
Buy the Buy Vishay PUR-SI Aluminum Electrolytic Capacitors Part Number MAL219359391E3 Online
Order Vishay PUR-SI aluminum electrolytic capacitors online today and benefit from high ripple current capacity, reliable long-term performance, and excellent thermal endurance. These polarized capacitors are perfect for industrial power supplies, motor controls, and energy-efficient solar inverters. With ratings up to 500 V and a lifespan of 5000 hours at 105°C, they ensure your electronic systems operate smoothly and efficiently. Experience fast delivery and secure purchase options to upgrade your power management solutions now.
Get Vishay PUR-SI high ripple current aluminum electrolytic capacitor today—built for power stability and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay MAL219359391E3?
You can click on the BUY or RFQ button to purchase MAL219359391E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL219359391E3?
You can download the MAL219359391E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL219359391E3?
Vishay
