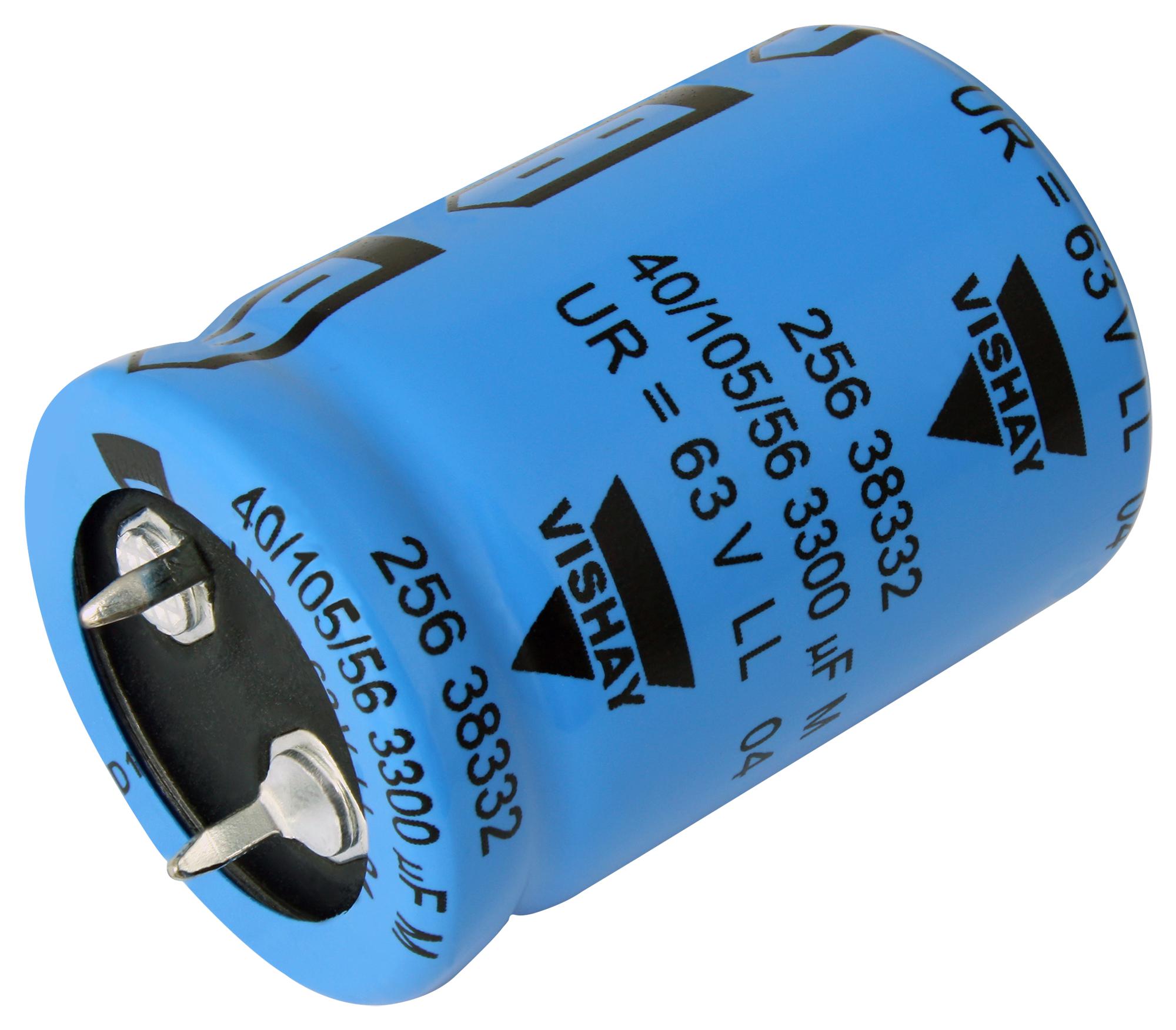

Vishay MAL219367121E3 Aluminum Electrolytic Capacitors
Vishay BCcomponents 193 PUR-SI aluminum electrolytic capacitors offer reliable performance with high ripple current capability, extended life, and broad voltage ratings up to 500 V. Designed with a compact snap-in form factor, these polarized capacitors are suitable for industrial, solar inverters, motor controls, and power supply filtering applications. They feature improved thermal stability, RoHS compliance, and robust life endurance of up to 5000 hours at 105 °C. Marked with detailed specifications for easy identification, these capacitors combine durability with excellent electrical performance for demanding electronic systems.
Vishay MAL219367121E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22x25 mm to 35x60 mm
- Rated capacitance: 47 UF to 820 UF
- Tolerance on capacitance: +20%
- Rated voltage: 400 V, 450 V, 500 V
- Category temperature range: -40°C to 105°C
- Endurance at 105°C: 2000 hours
- Useful life at 105°C: 5000 hours
- Shelf life at 0 V and 105°C: 1000 hours
- Ripple current at 100 Hz and 105°C: Up to 870 mA
- Maximum ESR at 100 Hz: Varies with size, e.g., 0.69 mΩ for 68 UF
- Impedance at 10 kHz: Varies with size, e.g., 5668 mΩ for 68 UF
- Maximum leakage current after 5 min at rated voltage: < 0.01 Ca x Un
- Typical inductance: 19 nH, max 25 nH
- Mounting form: Two terminal and three terminal snap-in
- Dimensions vary with case size, detailed in charts
- Surge voltage: > 400 V versions, Us = 1.1 Up
- Compliance: RoHS, IEC 60068 climatic category
- Markings include capacitance, voltage, date code, manufacturer, polarity
- Temperature range: -40°C to 105°C
Buy the Vishay 193 PUR-SI U+2013 Reliable Aluminum Capacitors for Industrial Applications
Order Vishay 193 PUR-SI aluminum electrolytic capacitors online today and ensure your industrial power systems operate with maximum reliability. These high ripple current capacitors are ideal for solar inverters, motor controls, and filtering applications, offering extended life up to 5000 hours at 105°C. With broad voltage ratings up to 500 V and compact snap-in design, they provide excellent electrical performance and durability. Shop now for fast delivery and boost your project’s efficiency with trusted Vishay components.
Buy Vishay 193 PUR-SI electrolytic capacitors now and experience unmatched reliability and performance in power filtering and motor control systems.
