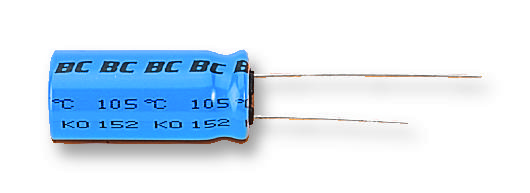

Vishay MAL224655472E3 Aluminum Electrolytic Capacitors
High-temperature, radial aluminum electrolytic capacitors designed for industrial power supply applications, smoothing, filtering, and buffering with excellent vibration resistance up to 50 g. They feature long useful life of 4000 to 6000 hours at 125°C, high stability, low ESR, and RoHS compliance. Qualified for automotive and telecommunication use, these polarized capacitors have cylindrical aluminum cases with blue PET insulation, rated capacitance from 390 uF to 6800 uF, and voltage ratings from 16 V to 63 V. They demonstrate reliable ripple current capacity and robust performance under vibration and thermal stress, ensuring durability in demanding environments.
Vishay MAL224655472E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 16 x 20 mm to 18 x 35 mm
- Rated capacitance: 390 uF to 6800 uF
- Tolerance on Cr: 20%
- Rated voltage range: 16 V to 63 V
- Temperature range: -55°C to +125°C
- Endurance: 3000 to 5000 hours at 125°C; useful life: 4000 to 6000 hours at 125°C
- Ripple current capability suitable for high stability applications
- Vibration resistance: up to 50 g, no electrolyte leakage or visible damage
- Polarized aluminum case, cylindrical with blue PET sleeve insulation
- RoHS compliant, qualified for automotive and telecom environments
- Impedance at 100 kHz: specified maximum values depending on case size
- Leakage current: max 0.01 Cx Un + 3 pA after 2 min at Up
- Dimensions vary per case size, with long lead forms (CA), taped versions (TFA), and cut leads (CB)
- Total weight and packaging quantities per case size: approx. 100-250 units
- Electrolytic, non-solid electrolyte, charge/discharge proof, high vibration resistance
Buy the VISHAY MAL224655472E3 – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Secure your power filtering solutions with the VISHAY MAL224655472E3 aluminum electrolytic capacitors. Designed for high temperature stability, long life, and vibration resistance, these polarized capacitors are perfect for industrial, automotive, and telecom power supplies. With extensive endurance and low ESR, they ensure reliable operation under thermal and mechanical stress. Purchase online today to enhance your projects with high-quality components that deliver performance, durability, and compliance for demanding environments. Trust VISHAY for your electronic needs.
Order your VISHAY SeriesMAL224655472E3 high-temperature aluminum electrolytic capacitor today and enhance your power supply reliability with long-lasting performance.
