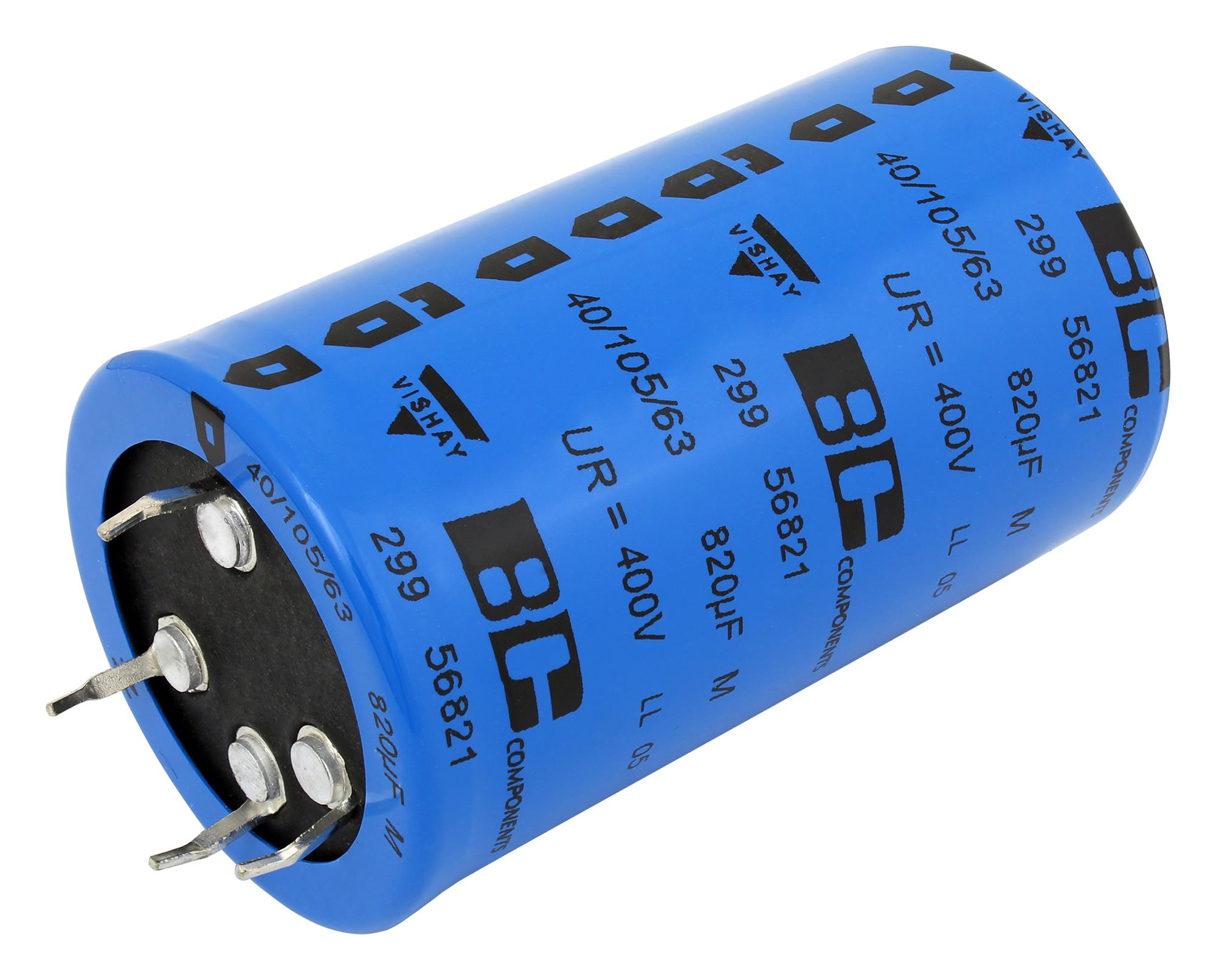

Vishay MAL229956561E3 Aluminum Electrolytic Capacitor
Vishay PHL-4TSI aluminum electrolytic capacitors are high ripple current, long-life, polarized components with a non-solid electrolyte. Designed for demanding applications such as switched mode power supplies and renewable energy converters, they feature a cylindrical aluminum case with a blue sleeve for insulation, pressure relief on the side, and stable mounting with keyed polarity. These capacitors offer a useful life of 5000 hours at 105°C, with a temperature range up to 105°C. They are suitable for pulse systems and energy storage, providing reliable performance in high-temperature environments with RoHS compliance.
Vishay MAL229956561E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case size: 35 x 50 mm to 45 x 100 mm
- Rated capacitance: 470 µF to 2200 µF
- Tolerance: ±20%
- Rated voltage: 400 V to 450 V
- Temperature range: -40°C to +105°C
- Useful life: 5000 hours at 105°C
- Endurance: 2000 hours at 105°C
- Leakage current: < 0.006 Cp x Un + 4 pA after 1 min at Ur
- Maximum ESR at 100 Hz varies with capacitance, typically between 0.427 Ω and 1.764 Ω
- Impedance at 10 kHz: varies with capacitance
- Physical dimensions: OD from 36 mm to 46 mm, length varies with case size
- Mounting: 4-terminal snap-in with dummy terminals free from electrical circuit
- Compliance: RoHS, IEC 60384-4, EN 130300, IEC 60068
Buy the Vishay Series PHL-4TSI Aluminum Electrolytic Capacitors: MAL229956561E3
Buy Vishay PHL-4TSI aluminum electrolytic capacitors online today and enjoy reliable, high-performance energy storage solutions. Designed for long life and stable operation, these polarized capacitors feature a cylindrical aluminum case with insulation, pressure relief, and a wide temperature range up to 105°C. Perfect for switched mode power supplies, renewable energy converters, and pulse systems, they provide excellent ripple current capability and are compliant with RoHS standards. Order now for durable and efficient power management.
Get Vishay PHL-4TSI aluminum electrolytic capacitor today—built for high ripple current and long-lasting durability in power supplies and energy conversion.
Frequently Asked Questions
Where can I buy Vishay MAL229956561E3?
You can click on the BUY or RFQ button to purchase MAL229956561E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL229956561E3?
You can download the MAL229956561E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL229956561E3?
Vishay
