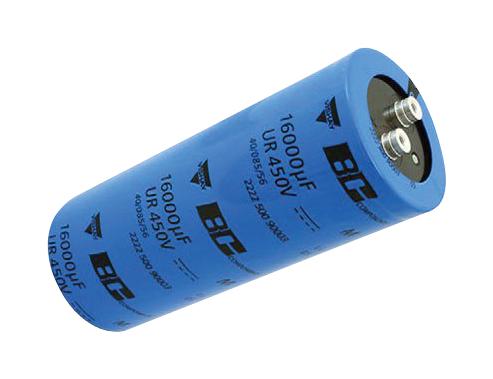

Vishay MAL250139332E3 Aluminum Capacitors
Vishay aluminum electrolytic capacitors are power general-purpose miniaturized screw terminal models. Designed for energy storage in UPS, medical, industrial pulse systems, and solar inverters, these polarized capacitors feature a large cylindrical aluminum case insulated with a blue sleeve. They offer useful life of 5000 hours at +85°C, with case sizes up to 90 mm x 195 mm and rated voltages between 400 V to 450 V. Suitable for applications requiring high ripple current, low ESR, and reliable long-term operation. They are delivered with screws and washers for versatile mounting options, complying with RoHS standards.
Vishay MAL250139332E3 Aluminum Capacitors Specifications:
- Case Size: up to 90 mm x 195 mm
- Rated Capacitance: 7000 pF to 15000 μF
- Tolerance: +20% (IEC 60062 code M)
- Rated Voltage: 400 V to 450 V
- Useful Life: 5000 hours at +85°C
- Endurance Test: 2000 hours at 65°C
- Shelf Life: 1000 hours at 0 V, 85°C
- Temperature Range: -40°C to +85°C
- RoHS Compliant
- Pressure relief in sealing disc
- Available in various case sizes with mounting options including screw, clamp, threaded stud, and high current disc
- Materials: Aluminum case, non-solid electrolyte, insulated with blue sleeve
- Mechanical drawings available for mounting accessories and dimensions
- Screw and washers included; torque up to 2 Nm for M5, 2.5 Nm for M6
- Marked with capacitance, voltage, and manufacturing information
- Suitable for energy storage, filtering, and pulse applications
- Designed to meet IEC 60384-4 / EN 130300 climatic and electrical standards
Buy the Buy Vishay Aluminum Capacitors Part Number MAL250139332E3 Online
Purchase the Vishay Series501 PGM-ST aluminum electrolytic capacitor online today to benefit from robust energy storage, high ripple current handling, and long-term durability. Perfect for UPS, medical pulse systems, and industrial inverters, these capacitors feature a large cylindrical aluminum case, insulated with a blue sleeve, and provide a useful life of 5000 hours at +85°C. Delivered with screws and washers, they offer versatile mounting options for various applications requiring dependable performance and compliance with RoHS standards. Secure your supply chain now and elevate your project reliability with ease.
Order your Vishay Series501 PGM-ST aluminum electrolytic capacitor today and ensure reliable energy storage for your UPS or inverter projects.
