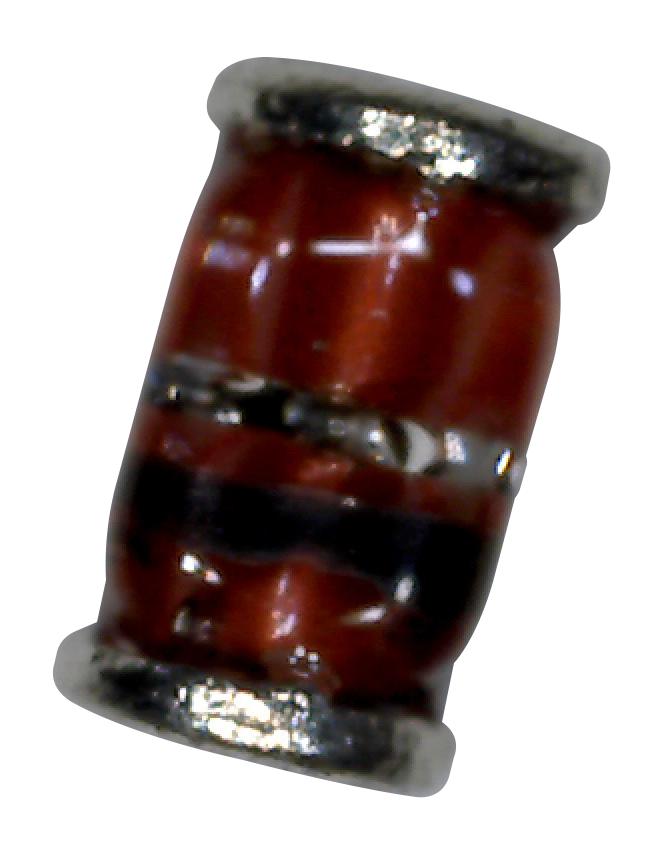

Vishay MCL4151TR High-Speed Switching Diode
The MCL4151 is a high-speed switching diode in a MicroMELF package, designed for fast switching applications. It features a maximum repetitive peak reverse voltage of 75 V and a forward voltage of approximately 880 to 1000 mV at 50 mA. Suitable for extreme fast switching, it is qualified under AEC-Q101, RoHS compliant, with a thermal resistance of 45 K/W junction to ambient. Its compact design and reliable electrical characteristics make it ideal for high-speed signal processing in various industrial environments.
Vishay MCL4151TR High-Speed Switching Diode Specifications:
- Repetitive Peak Reverse Voltage: 75 V
- Reverse Voltage: 50 V
- Peak Forward Surge Current: 2 A
- Repetitive Peak Forward Current: 450 mA
- Forward Continuous Current: 200 mA
- Average Forward Current: 150 mA
- Power Dissipation: 500 mW
- Thermal Resistance Junction to Ambient: 45 K/W
- Junction Temperature: 175°C
- Storage Temperature Range: -65°C to +175°C
- Forward Voltage at 50 mA: 880 to 1000 mV
- Reverse Current at 50 V, 150°C: 50 µA
- Breakdown Voltage: 75 V
- Diode Capacitance: 2 pF
- Reverse Recovery Time: ns range
- Package: MicroMELF with cathode band, approx. weight 12 mg
- Case Dimensions: in mm, surface plan, with surface mount design
Buy the Vishay MCL4151 – Reliable Fast Switching Diode for Industrial Applications
Order the Vishay MCL4151 online today and enjoy swift delivery of this reliable, high-speed switching diode. Perfect for industrial signal processing, it offers a maximum repetitive peak reverse voltage of 75 V, low forward voltage, and excellent thermal characteristics. Its compact MicroMELF package ensures easy integration into your electronic designs. Whether for high-speed switching or signal control, this diode provides consistent performance, durability, and compliance with RoHS standards. Upgrade your electronic projects now with the MCL4151 for optimal reliability and efficiency.
Buy Vishay MCL4151 now and experience unparalleled reliability and high-speed switching performance for industrial signal processing needs.
Frequently Asked Questions
Where can I buy Vishay MCL4151TR?
You can click on the BUY or RFQ button to purchase MCL4151TR from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCL4151TR?
You can download the MCL4151TR datasheet or visit the Vishay website for support.
Who is the manufacturer of MCL4151TR?
Vishay
