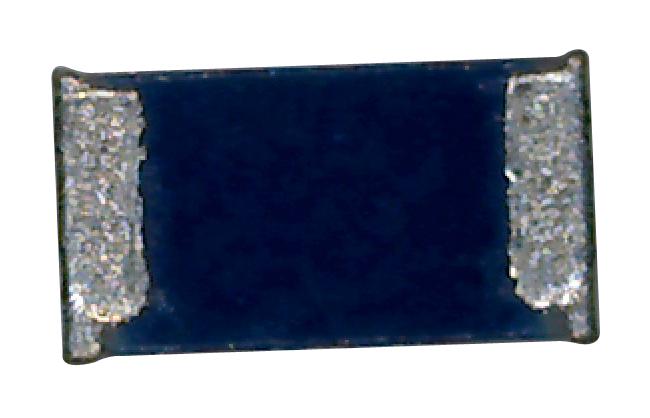

Vishay MCT0603MD1003BP100 Precision Thin Film Resistor
Vishay Beyschlag's precision thin film chip resistors cater to modern electronics demanding high reliability and stability. Suitable for automotive, telecommunication, industrial, and medical applications, they feature excellent temperature cycling robustness, sulfur resistance, and RoHS compliance. Available in sizes from 0402 to 1206, with resistance ranges up to 1 MΩ, they are qualified to EN 140401-801 and AEC-Q200 standards. These resistors handle rated dissipation up to 0.4 W in 1206 size, operate within -55°C to 155°C, and are designed for automatic SMD assembly with robust encapsulation and long shelf life.
Vishay MCT0603MD1003BP100 Precision Thin Film Resistor Specifications:
- Size: 0402, 0603, 0805, 1206
- Resistance Range: 47 Q to 1 MΩ
- Resistance Tolerance: ±0.1% to ±1%
- Temperature Coefficient: +25 ppm/K, +15 ppm/K, +10 ppm/K
- Rated Dissipation: up to 0.4 W (1206 size)
- Operating Voltage: up to 200 V
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to 155°C
- Permissible voltage: 75 V to 300 V
- Compliance: RoHS, AEC-Q200, EN 140401-801
- Durability: Extensive temperature cycling and sulfur resistance tested
- Assembly: Suitable for automatic SMD processing, wave, reflow, vapor phase
- Encapsulation: Protective coating with matte tin nickel plating
- Materials: High-grade ceramic substrate with special metal alloy film
- Test Standards: EN 60115-1, EN 60115-8, IEC 60068-2
Buy the Vishay Series Precision Thin Film Chip Resistors: MCT 0603 AT
Enhance your electronic designs with Vishay's high-precision thin film chip resistors. Engineered for durability, stability, and compliance, these resistors are ideal for automotive, industrial, telecommunication, and medical applications. Sizes from 0402 to 1206 offer resistance ranges up to 1 MΩ with tight tolerances of ±0.1% or better. Designed for automatic SMD assembly, they feature excellent temperature cycling robustness and sulfur resistance. Available now online for quick delivery, ensuring your project meets the highest standards of quality and reliability.
Buy Vishay MCT 0603 AT now and experience unmatched reliability and performance in your precision electronics projects.
Frequently Asked Questions
Where can I buy Vishay MCT0603MD1003BP100?
You can click on the BUY or RFQ button to purchase MCT0603MD1003BP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCT0603MD1003BP100?
You can download the MCT0603MD1003BP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MCT0603MD1003BP100?
Vishay
