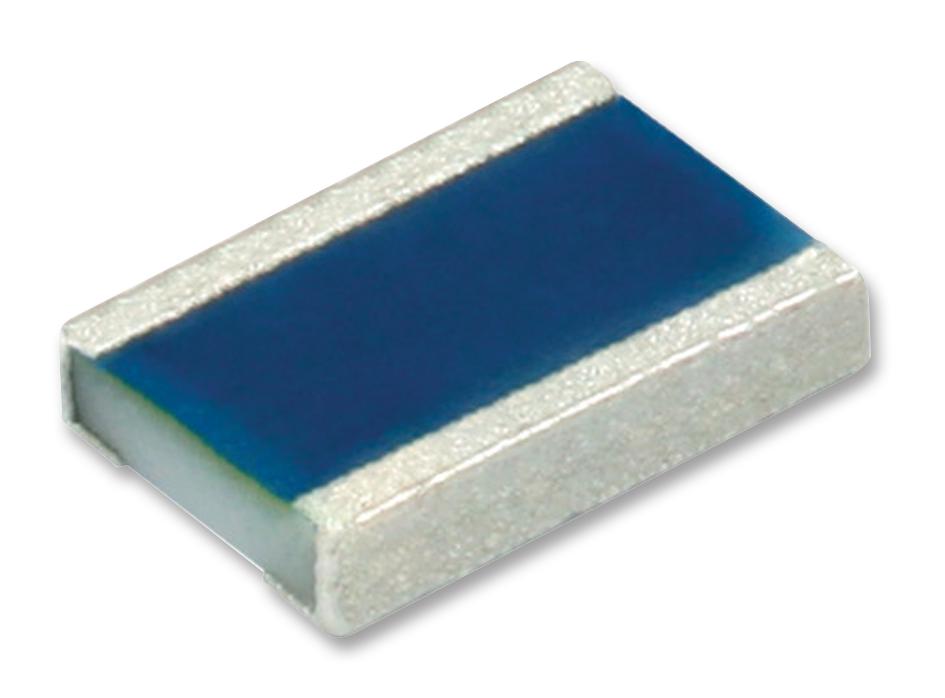

Vishay MCW0612MC1009FP100 Wide Terminal Thin Film Resistor
MCW 0609-1004FP resistors are high power, highly reliable thin film chip resistors suitable for automotive and industrial applications. They feature a wide terminal design, excellent temperature cycling robustness, and RoHS compliance. Designed for power electronics, these resistors handle up to 1 W dissipation, operate at temperatures up to 175°C, and are qualified under AEC-Q200 standards. Ideal for power measurement systems, automotive electronics, and demanding industrial environments, these resistors ensure minimal resistance drift over extended operation and meet stringent performance and environmental standards.
Vishay MCW0612MC1009FP100 Wide Terminal Thin Film Resistor Specifications:
- Size: 0612 (RR1632M), imperial size 0612, metric size code RR1632M
- Resistance range: 10^2 to 100 ka, with ±0.5% tolerance
- Temperature coefficient: + 25 ppm/K; + 50 ppm/K
- Rated dissipation: 1.0W
- Operating voltage: 75V maximum
- Film temperature: Max 175°C
- Operating temperature range: -55°C to 175°C
- Permissible voltage against ambient: 100V (insulation)
- Resistance drift after 1000 hours at 175°C: <0.4%
- Thermal cycling robustness: Up to 3000 cycles between -55°C and 155°C
- RoHS compliant, suitable for automatic SMD assembly, reflow soldering compatible
- Material: Homogeneous metal alloy film on ceramic substrate (Al2O3)
- Terminations: Pure matte tin on nickel plating
- Certifications: AEC-Q200 qualified, IEC 60115, EN 60115-1, EN 60115-8
Buy the Vishay MCW0612AT – Reliable Thin Film Chip Resistors for Industrial Applications
Purchase Vishay MCW0612AT resistors online today for high power, robust performance in automotive and industrial electronics. These resistors meet strict standards, withstand high temperatures up to 175°C, and offer excellent temperature cycling robustness. With a dissipation capacity of 1 W and low resistance drift over extended operation, they ensure reliable performance in power measurement and demanding environments. Ideal for automatic SMD assembly, these RoHS-compliant resistors help you achieve durable, high-quality electronic designs efficiently and with confidence.
Order your Vishay SeriesMCW0612AT high power resistors today and give your power measurement and automotive projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay MCW0612MC1009FP100?
You can click on the BUY or RFQ button to purchase MCW0612MC1009FP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCW0612MC1009FP100?
You can download the MCW0612MC1009FP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MCW0612MC1009FP100?
Vishay
