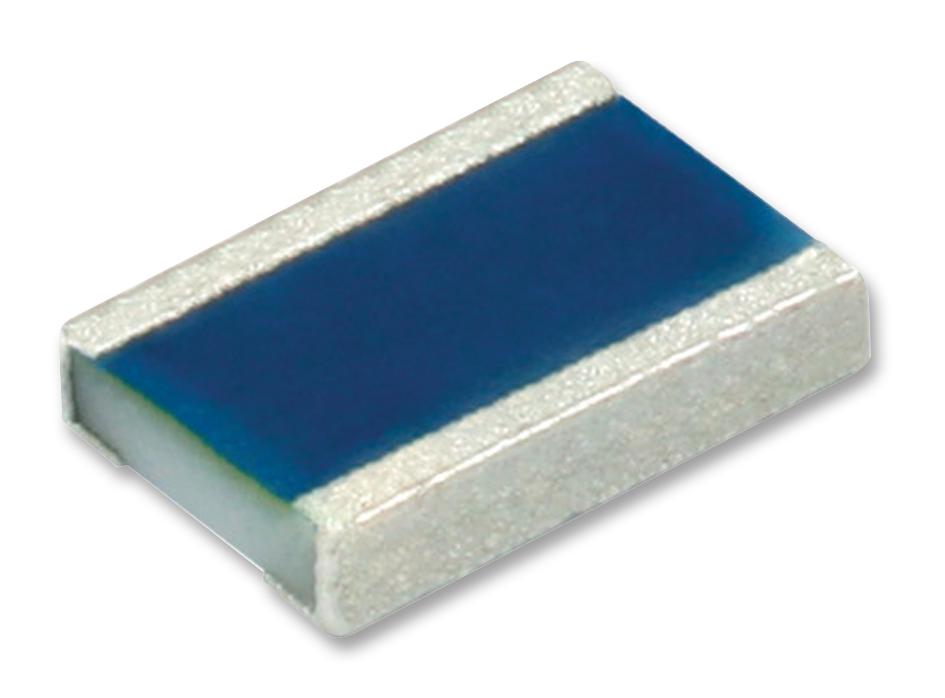

Vishay MCW0612MC2001FP100 Wide Terminal Thin Film Resistor
Vishay Beyschlag's MCW 0406 AT and MCW 0612 AT are professional wide terminal thin film chip resistors designed for high power and temperature cycling robustness. They feature resistance ranges from 1 to 100 ka, with tight tolerance of ±0.05% or ±1%. Rated dissipation is up to 1 W for size 0612 and 0.3 W for size 0406. Operating temperatures extend from -55°C to 175°C, with excellent long-term stability, sulfur resistance, and compliance with RoHS, suitable for automotive, industrial, and power electronics applications.
Vishay MCW0612MC2001FP100 Wide Terminal Thin Film Resistor Specifications:
- Size: 0406 (RR1016M), 0612 (RR1632M)
- Resistance Range: 1 to 100 ka
- Resistance Tolerance: ±0.05%, ±1%
- Temperature Coefficient: +25 ppm/K, +50 ppm/K
- Rated Dissipation: 0.3 W for 0406, 1.0 W for 0612
- Operating Voltage: 50V AC/DC for 0406, 75V AC/DC for 0612
- Maximum Film Temperature: 175°C
- Operating Temperature Range: -55°C to 175°C
- Permissible Voltage Against Ambient: 75V for 0406, 100V for 0612
- Packaging: Tape and reel, 180 mm/7" standard
- Material: Ceramic substrate with metal alloy film, matte tin finish
- Compliance: RoHS, AEC-Q200 qualified, sulfur resistant
- Dimensions: Length approx. 0.3-0.45 mm, width 1.0-1.6 mm, height 0.3-0.45 mm
- Solder Pad Dimensions (for reflow): GxY, e.g., 0.35x0.55 mm for 0406
- Certifications: IECQ-CECC, IEC 60115, IEC 60068 tests
- Reliability: Stable resistance over long-term operation, minimal drift under rated power
Buy the Vishay Series Professional Wide Terminal Thin Film Chip Resistors: MCW 0406 AT
Purchase the Vishay Series MCW 0612 AT wide terminal thin film resistor online today. These reliable, high-temperature resistors are ideal for automotive, industrial, and power electronic applications. With a resistance range up to 100 ka, tolerance of ±0.05% or ±1%, and dissipation up to 1 W, they deliver exceptional stability and robustness. Suitable for automatic SMD assembly, they meet RoHS standards and are backed by extensive testing and certifications, ensuring long-term performance and durability for your critical projects.
Order your Vishay Series MCW 0406 AT high-power thin film resistor today and ensure reliable performance in power electronics and automotive applications.
Frequently Asked Questions
Where can I buy Vishay MCW0612MC2001FP100?
You can click on the BUY or RFQ button to purchase MCW0612MC2001FP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCW0612MC2001FP100?
You can download the MCW0612MC2001FP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MCW0612MC2001FP100?
Vishay
