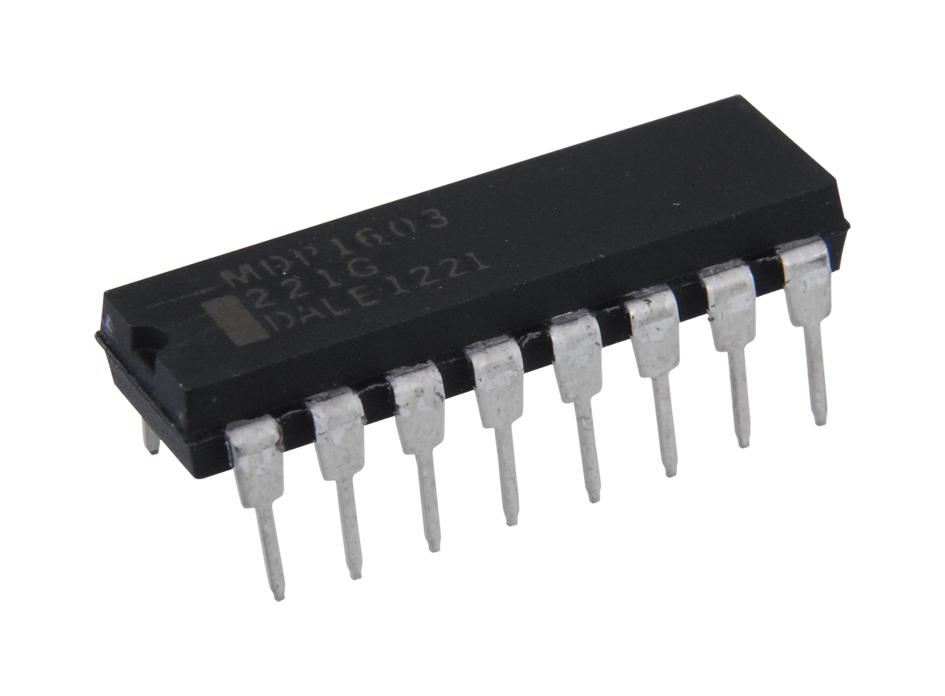

Vishay MDP1603220RGD04 Resistor Network
The Vishay Dale MDP series resistor networks are molded, dual-in-line components designed for circuit applications requiring isolated or bussed resistor arrangements. Featuring a rugged epoxy body, these networks offer low temperature coefficients of -55 °C to +125 °C, high dielectric strength, and are compatible with automatic insertion equipment. Available in various resistance ranges (10 Q to 2.2 MΩ) with pin counts of 14 and 16, they are ideal for pull-up, pull-down, impedance balancing, and line termination in digital and analog circuits. RoHS-compliant and lead-free options are available, ensuring safety and environmental standards compliance.
Vishay MDP1603220RGD04 Resistor Network Specifications:
- Package Power Rating at +70 °C: 1.73 W (MDP14), 1.92 W (MDP16)
- Resistance Range: 10 Q to 2.2 MΩ
- Temperature Coefficient: Typical < 50 ppm/°C
- Dielectric Strength: 200 V
- Insulation Resistance: > 10,000 MΩ
- Operating Temperature Range: -55 °C to +125 °C
- Storage Temperature Range: -55 °C to +150 °C
- Package Dimensions: MDP14 - Length 0.750 in (19.05 mm), Width 0.600 in (15.24 mm); MDP16 - Length 0.850 in (21.59 mm), Width 0.700 in (17.78 mm)
- Terminal Material: Solder plated leads
- Body Material: Molded epoxy
- Impact Resistance: 18 shocks at 100 g
- Vibration Resistance: 12 hours at 20 g, 10 Hz to 2000 Hz
- Solderability: Per MIL-STD-202, method 208E
- Sealing: RoHS-compliant, lead-free or tin/lead options
- Impedance Codes: Various per datasheet
Buy the Vishay Series MDP Resistor Networks: 16 Pin 2.2 MΩ RGD04
Discover the Vishay Dale resistor networks, designed for reliable circuit connections in digital and analog systems. Available in 14 and 16 pin configurations, these molded epoxy networks feature resistance ranges from 10 Q to 2.2 MΩ, low temperature coefficients, high dielectric strength, and RoHS compliance. Suitable for pull-up, pull-down, line termination, and impedance balancing applications, they are compatible with automatic insertion equipment. Order online now to ensure your projects meet high standards of performance, safety, and environmental compliance efficiently and affordably.
Order your Vishay Series MDP resistor network today and enhance your circuit reliability with rugged, RoHS-compliant dual-in-line resistor arrays.
Frequently Asked Questions
Where can I buy Vishay MDP1603220RGD04?
You can click on the BUY or RFQ button to purchase MDP1603220RGD04 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MDP1603220RGD04?
You can download the MDP1603220RGD04 datasheet or visit the Vishay website for support.
Who is the manufacturer of MDP1603220RGD04?
Vishay
