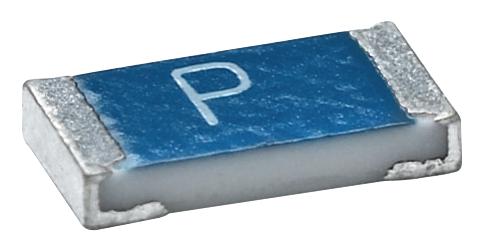

Vishay MFU1206FF01000P100 Thin Film Chip Fuse
MFU 1206 Thin Film Chip Fuses are designed with advanced thin film technology, offering very quick acting fuse characteristics suitable for various electronic applications including industrial, automotive, and telecommunication electronics. These fuses feature high stability of fusing characteristics, RoHS compliance, and are suitable for automatic SMD assembly processes. They have a compact size of 3.2 mm x 1.6 mm, rated voltage up to 63 V, and rated currents ranging from 0.1 A to 6.3 A. Their high-quality ceramic body, pure tin plating, and rigorous testing ensure reliability and safety in modern electronic circuits.
Vishay MFU1206FF01000P100 Thin Film Chip Fuse Specifications:
- Size: 3.2 mm x 1.6 mm
- Rated Voltage: up to 63 V
- Rated Current: 0.1 A to 6.3 A
- Breaking Capacity: 50 A at 32 V / 63 V
- Temperature Range: -55°C to 125°C
- Operating Temperature: 15°C to 35°C
- Material: Ceramic body with metal alloy film, pure tin plated terminations
- Soldering Compatibility: Wave, reflow, vapor phase
- Compliance: RoHS, IEC 60127-1, IEC 60127-4, UL 248-14
- Mass: 1.6 mg
Buy the Vishay Series MFU Thin Film Chip Fuse: MFU1206FF01000P
Experience reliable circuit protection with Vishay's MFU1206 Thin Film Chip Fuse, engineered for high stability and quick response. This compact fuse measures 3.2 mm x 1.6 mm, rated up to 63 V and 6.3 A, making it ideal for industrial, automotive, telecommunication, and audio/video applications. Manufactured with advanced thin film technology on a ceramic body, it offers RoHS compliance and robust construction. Suitable for automatic SMD assembly and reflow soldering, it ensures safety, longevity, and high performance for critical electronic systems. Purchase online today for dependable circuit protection.
Get Vishay MFU1206FF01000P today—built for precision and long-lasting durability in modern electronic circuits.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF01000P100?
You can click on the BUY or RFQ button to purchase MFU1206FF01000P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF01000P100?
You can download the MFU1206FF01000P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF01000P100?
Vishay
