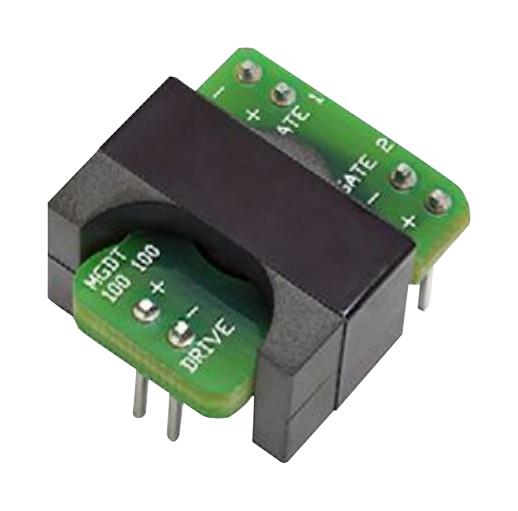

Vishay MGDT100100SM Gate Drive Transformer
The MGDT series from Vishay comprises miniaturized planar gate drive transformers designed for efficient MOSFET and IGBT gate signaling in industrial applications. These RoHS-compliant transformers deliver high-speed gate drive signals with excellent rise time, overshoot, and peak current characteristics. Suitable for driving high-side MOSFETs and IGBTs on busses up to 1200 V, they feature low profile planar packages with through-hole and surface-mount options. Their robust design ensures reliable performance in high-frequency switching environments, maintaining thermal stability over wide operating temperature ranges.
Vishay MGDT100100SM Gate Drive Transformer Specifications:
- Size: 20.57 x 18.42 x 11.43 mm
- Material: RoHS-compliant planar package
- Maximum dielectric withstand: Gate to gate 2500 Vac, Drive to gate 3750 Vac for 1 min
- Total power dissipation: 20 W at Ta=25°C
- Operating temperature range: -55°C to +125°C, Storage temperature: -55°C to +130°C
- Frequency range: 100 to 500 kHz
- Drive level derating: 33.3 mW/°C above 25°C, drive voltage derating: 60 V/s above 85°C
- Terminals: Through-hole and surface-mount
- Electrical: RATIO, PAVE, CABLE, Fe, Max., Min., Leakage, Capacitance specifics vary per model
- Models: MGDT100100, MGDT100100LF, MGDT100100-SM, MGDT100125, MGDT100125LF, MGDT100125-SM
Buy the Vishay MGDT100100SM – Reliable Gate Drive Transformer for Industrial Applications
Purchase the Vishay Gate Drive Transformer today and enhance your power switching efficiency. Designed for high-voltage MOSFET and IGBT applications, this transformer offers excellent rise time, overshoot, and peak current characteristics. Its compact, low profile planar design ensures easy installation in industrial systems. Featuring robust dielectric strength, wide temperature range, and high-frequency performance, the MGDT series guarantees reliability and durability. Buy online now to optimize your power electronics with superior gate drive performance and dependable operation.
Get Vishay MGDT100100SM today—built for precision and long-lasting durability in high-frequency power switching.
Frequently Asked Questions
Where can I buy Vishay MGDT100100SM?
You can click on the BUY or RFQ button to purchase MGDT100100SM from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MGDT100100SM?
You can download the MGDT100100SM datasheet or visit the Vishay website for support.
Who is the manufacturer of MGDT100100SM?
Vishay
