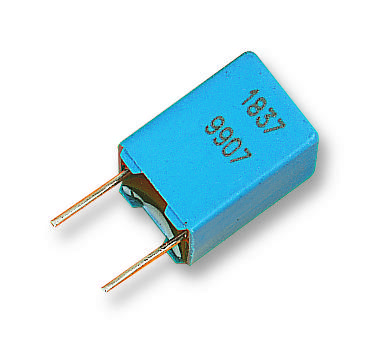

Vishay MKP1837333011 Metallized Polypropylene Film Capacitor
The MKP 1837 is a high-quality metallized polypropylene film capacitor designed for use in oscillator, timing, and LC/RC filter circuits, as well as high-frequency coupling and decoupling applications. It features flame-retardant plastic and epoxy resin sealing, with tinned leads and a dielectric of polypropylene film. It is RoHS-compliant, with a temperature range from -55°C to +100°C, and rated voltage of 160 VDC. Suitable for reliable operation in various electronic and industrial circuits, it offers low dissipation factor, high insulation resistance, and long operational life exceeding 300,000 hours.
Vishay MKP1837333011 Metallized Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Vacuum deposited aluminum
- Coating: Flame retardant plastic case, epoxy resin sealed, UL-class 94 V-0
- Construction: Extended metallized film
- Leads: Tinned wire
- Operating Temperature Range: -55°C to +100°C
- Capacitance Range: 0.01pF to 0.1pF
- Capacitance Tolerance: +10% (K), +5% (J), #2.5% (H), +1% (F)
- Rated Voltage: 160 VDC
- Permissible AC Voltage: Up to 100 VAC at up to 60Hz
- Test Voltage: 1.6× Up for 2 seconds
- Insulation Resistance: ≥100,000 MΩ at 100 VDC after one minute
- Temperature Coefficient: -250°C×10^-8/°C
- Dissipation Factor: TAN δ
- Self Inductance: Approximately 6 nH
- Operational Life: Over 300,000 hours
- Failure Rate: Less than 5 FIT at 40°C and 0.5× Up
Buy the VISHAY MKP 1837 – Reliable Metallized Polypropylene Film Capacitor for Industrial Applications
Purchase the Vishay MKP 1837 metallized polypropylene film capacitor online today for high reliability, excellent performance in RF, filter, and timing circuits. Featuring flame-retardant casing, RoHS compliance, and a temperature range of -55°C to +100°C, this capacitor ensures long-term stability and minimal dielectric absorption. Its low dissipation factor and high insulation resistance make it ideal for critical electronic applications requiring stable capacitance, low losses, and durability. Secure your supply now and optimize your industrial and electronic projects with trusted Vishay quality.
Order your Vishay SeriesMKP 1837 high-frequency capacitor today and ensure dependable performance in oscillator and filtering circuits.
Frequently Asked Questions
Where can I buy Vishay MKP1837333011?
You can click on the BUY or RFQ button to purchase MKP1837333011 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1837333011?
You can download the MKP1837333011 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1837333011?
Vishay
