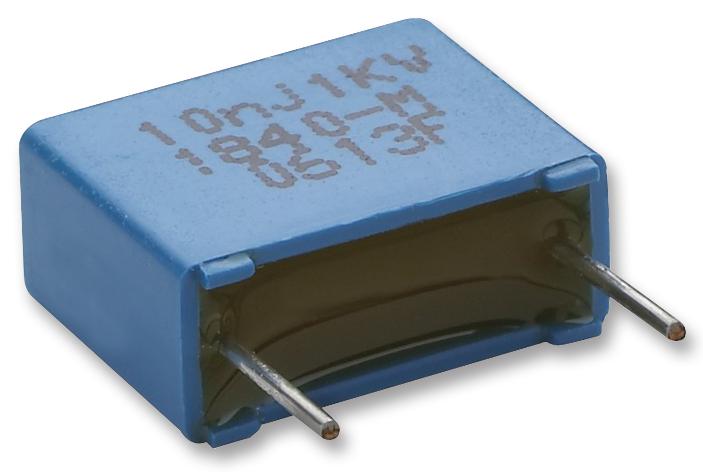

Vishay MKP1840422104M Polypropylene Film Capacitor
Vishay's MKP1840 M is a metallized polypropylene film capacitor designed for high-frequency and pulse operations. It features a compact mini version construction with various voltage ratings, suitable for use in electronic circuits demanding stability and reliability. Encapsulated in a flame-retardant epoxy resin, it offers excellent insulation resistance and thermal stability up to 100°C. The capacitor's precise dimensions and low loss angle make it ideal for filtering, sampling, and timing applications in industrial electronics. Its construction ensures long service life and consistent performance in demanding environments.
Vishay MKP1840422104M Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Mono, internal series construction
- Material: Metallized electrodes
- Encapsulation: Plastic case, epoxy resin sealed, flame retardant UL 94 V-0
- Capacitance Range: 1000 pF to 6.8 μF
- Capacitance Tolerance: +5%, +2%, +25%
- Maximum Application Temperature: 100°C
- Rated DC Voltage: 250 V to 2000 V
- Rated AC Voltage: 160 Vac to 700 Vac
- Physical Dimensions: Length approximately 35-41 mm, width 17-27 mm, height varies by model
- Lead Pitch: 5 mm to 37.5 mm
- Maximum Pulse Rise Time: up to 1365 V/μs depending on capacitance and voltage
- Climatic Testing Class: EN 60068-1 55/10/56
- Insulation Resistance: >100,000 MΩ between leads
- Certifications: RoHS, UL 94 V-0 flame retardant
- Soldering: Suitable for automatic insertion, wave soldering as per guidelines
Buy the VISHAY MKP1840 – Reliable Polypropylene Film Capacitor for Industrial Applications
Enhance your electronic designs with Vishay MKP1840 polypropylene film capacitors. Ideal for high-frequency, pulse, and filtering applications, these reliable components withstand temperatures up to 100°C and feature precise capacitance and voltage ratings. Packaged for easy automation, they deliver long service life in demanding environments. Whether building filters, sampling circuits, or timing modules, these capacitors assure stability and performance. Order online today and optimize your industrial electronics with dependable, high-quality film capacitors by Vishay.
Buy Vishay MKP1840 mini polypropylene film capacitor now and experience unmatched reliability and performance in high-frequency applications.
Frequently Asked Questions
Where can I buy Vishay MKP1840422104M?
You can click on the BUY or RFQ button to purchase MKP1840422104M from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1840422104M?
You can download the MKP1840422104M datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1840422104M?
Vishay
