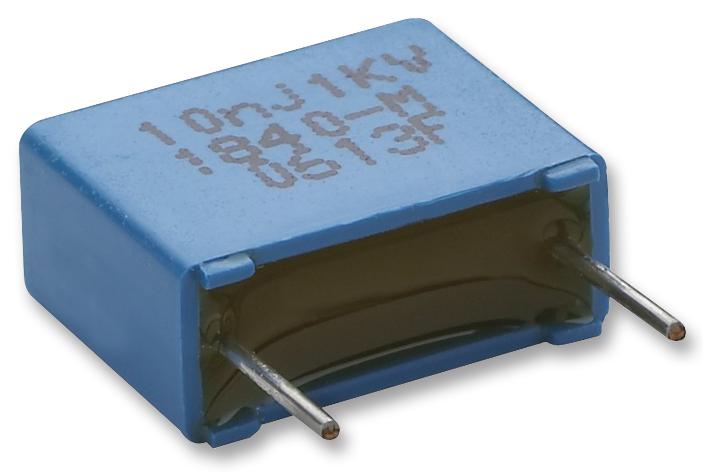

Vishay MKP1840447104M High-frequency film capacitor
Vishay Roederstein offers high-quality AC and pulse metallized polypropylene film capacitors, suitable for high-frequency and pulse applications such as SMPS, loudspeaker crossover networks, electronic ballast, and filtering circuits. These capacitors feature a plastic epoxy resin sealed, flame-retardant casing, with metallized dielectric and tinned wire leads. Available in various voltage ratings up to 2000 V, with capacitance values ranging from 1000 pF to 6.8 μF, they meet RoHS standards and are designed for reliable operation in industrial electronics with a maximum temperature of 100°C.
Vishay MKP1840447104M High-frequency film capacitor Specifications:
- Material: Polypropylene film with metallized electrodes
- Dielectric: Polypropylene
- Capacitance Range: 1000 pF to 6.8 μF
- Capacitance Tolerance: +5%, +2%, +25%
- Maximum Application Temperature: 100 °C
- Rated DC Voltages: 250 V, 400 V, 630 V, 1000 V, 1600 V, 2000 V
- Rated AC Voltages: 160 Vac, 220 Vac, 250 Vac, 400 Vac, 500 Vac, 600 Vac, 700 Vac
- Construction: Mono and internal series construction
- Encapsulation: Flame retardant epoxy resin sealed plastic case
- Leads: Tinned wire, lead pitch varies from 5 mm to 37.5 mm
- Compliance: RoHS, IEC 60384-16, UL class 94 V-0
- Temperature Range: -55°C to +100°C
- Climatic Testing: EN 60068-1
- Package Types: Reel, bulk (see Vishay packaging standards)
Buy the VISHAY MKP1840 – Reliable Capacitors for Industrial Applications
Discover VISHAY MKP1840 metallized polypropylene film capacitors, designed for high-frequency and pulse circuits in industrial environments. These reliable, RoHS-compliant components feature a flame-retardant epoxy sealed casing, various voltage ratings up to 2000 V, and capacitance values from 1000 pF to 6.8 μF. Ideal for SMPS, filters, ballast, and crossover networks, they ensure stability and durability with a maximum temperature of 100°C. Purchase online today for proven quality in demanding electronic applications.
Order your VISHAY MKP1840 high-frequency film capacitor today and ensure reliable performance in your industrial electronics projects.
Frequently Asked Questions
Where can I buy Vishay MKP1840447104M?
You can click on the BUY or RFQ button to purchase MKP1840447104M from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1840447104M?
You can download the MKP1840447104M datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1840447104M?
Vishay
