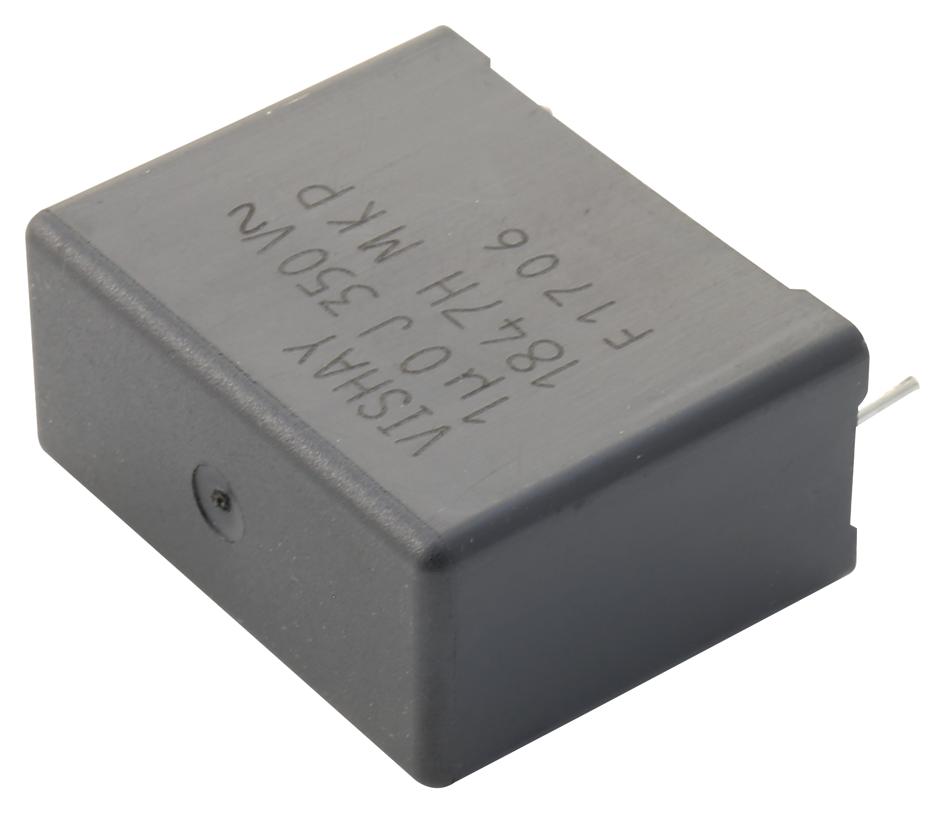

Vishay MKP1847H53035JK2 AC Filtering Capacitor
Vishay Roederstein MKP1847H AC filtering capacitors are metallized polypropylene film components designed for high humidity robustness and reliable operation in outdoor, UPS, renewable energy, and industrial harmonic filter applications. Featuring rated voltages up to 480 Vac and capacitance from 1 UF to 35 UF, these flame-retardant sealed units withstand climatic extremes, including 85°C and 105°C temperatures. They comply with IEC standards, incorporate self-healing properties, and are suitable for mounting on printed circuit boards, ensuring long-term stability and high performance in demanding environments.
Vishay MKP1847H53035JK2 AC Filtering Capacitor Specifications:
- Capacitance: 1 UF to 35 UF
- Rated Voltage: Up to 480 Vac (Uopac at 85°C 350 Vac, at 105°C 240 Vac)
- Temperature Rating: 85°C
- Maximum case temperature: 105°C
- Climatic Testing Class: 40/105/56B
- Dielectric: Metallized polypropylene film
- Construction: Mono, sealed with resin in flame retardant case
- Terminals: Tinned wire, 2 or 4 pins (customizable)
- Power Dissipation: Limited to ensure max component temperature rise of 15°C
- Insulation Resistance: >10,000s at 500V after 1 minute
- Self-healing: Permitted after dielectric punctures
- Compliance: UL 810 pending, RoHS, IEC 61071, IEC 60068
- Life Expectancy: >10^10 hours at 0.5 x Un
- Basing on IEC standards for vibration, shock, damp heat, and temperature cycling
Buy the Buy Vishay MKP1847H AC Filtering Part Number MKP1847H53035JK2 Online
Purchase Vishay MKP1847H AC filtering capacitor online today to ensure high-quality, durable performance for your electrical and industrial applications. Designed for excellent noise suppression, high humidity resilience, and long-term stability, these metallized polypropylene film capacitors are ideal for outdoor setups, UPS, renewable energy systems, and harmonic filters. With rated voltages up to 480 Vac and capacitance options from 1 UF to 35 UF, they meet IEC standards and are sealed in flame retardant cases. Order now for reliable performance and quick delivery!
Get Vishay MKP1847H53035JK2 today—built for precision, high humidity resilience, and long-lasting performance in industrial environments.
Frequently Asked Questions
Where can I buy Vishay MKP1847H53035JK2?
You can click on the BUY or RFQ button to purchase MKP1847H53035JK2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H53035JK2?
You can download the MKP1847H53035JK2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H53035JK2?
Vishay
