Vishay MKP1847H58035JP5 AC Filtering Capacitor
The MKP1847H AC filtering capacitor by Vishay Roederstein is a metallized polypropylene film component designed for high robustness in outdoor, UPS, renewable energy, and harmonic filtering applications. It features a flame-retardant sealed resin case, reliable operation at rated voltages up to 480 Vac, and a temperature rating of 85°C with a case maximum of 105°C. Suitable for vibration and shock mounting on PCBs, it offers high insulation resistance, low inductance, and excellent endurance under climatic and electrical stress, making it ideal for demanding industrial environments.
Vishay MKP1847H58035JP5 AC Filtering Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Monolithic, segmented film, epoxy sealed in flame-retardant resin case
- Rated Voltage: 250 Vac to 480 Vac depending on series
- Temperature Rating: 85°C maximum operating temperature, case max 105°C
- Capacitance Range: 1 UF to 35 UF with tolerances ±5%, ±10%
- Climatic Testing: 40/105/56B (humidity, temperature, durability)
- Insulation Resistance: > 10,000 S after 1 min at 500 V (up to 50,000 S per models)
- Impregnation: Resin potted for vibration and shock resistance
- Dimensions: Length varies with capacitance, typical 27.5 mm to 52.5 mm, width 15 mm to 57.5 mm
- Mounting: PCB mounting with stand-off pins, fixable via leads
- Standards: IEC 61071, IEC 60068, UL 810 (pending)
- Life Expectancy: > 10^10 hours at 0.5 Un rated voltage and 40°C
- Pulse Slope: Max voltage pulse slope complies with voltage ratings
- Additional: UL and RoHS compliant, segmented dielectric for safety and reliability

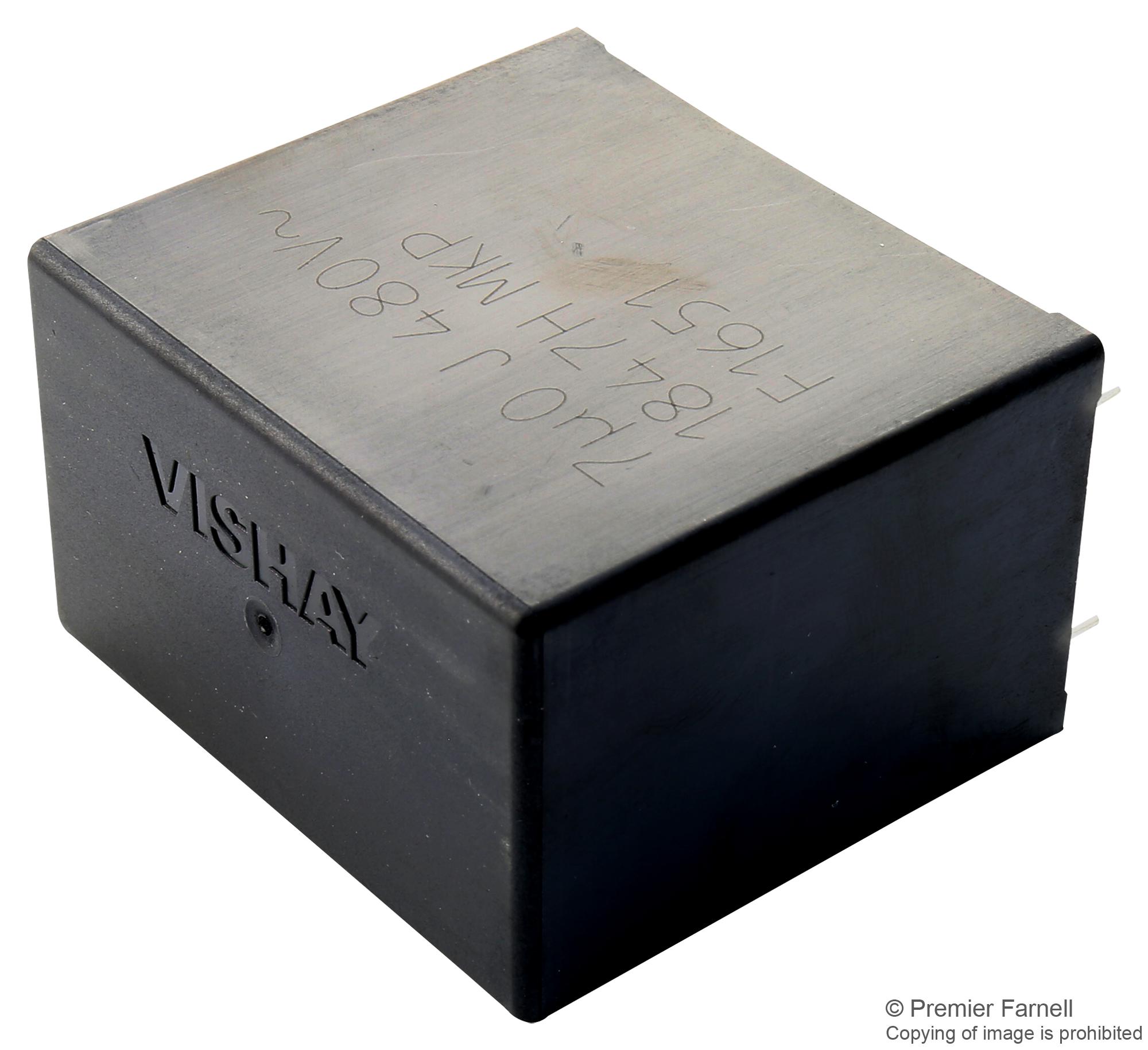

Buy the Vishay Series MKP1847H AC Filtering: 35 UF 480 Vac
Order the Vishay MKP1847H AC filtering capacitor online today and enjoy reliable performance in outdoor, UPS, renewable energy, and harmonic filtering applications. Designed with metallized polypropylene film and sealed with flame-retardant resin, this high-quality capacitor withstands harsh conditions, vibrations, and electrical stress. It offers excellent insulation resistance and low inductance, ensuring durable operation over long service life. Perfect for industrial applications requiring high stability, safety, and compliance with international standards. Ensure reliable electrical filtering by purchasing online now.
Get Vishay MKP1847H AC Filtering capacitor today—built for high reliability and industrial-grade performance in demanding environments.
Frequently Asked Questions
Where can I buy Vishay MKP1847H58035JP5?
You can click on the BUY or RFQ button to purchase MKP1847H58035JP5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H58035JP5?
You can download the MKP1847H58035JP5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H58035JP5?
Vishay
