Vishay MKP1847H61025JP4 Metallized Polypropylene Film Capacitor
The MKP1847H series consists of metallized polypropylene film capacitors designed for high humidity robustness and reliable performance in outdoor, UPS, renewable energy, and harmonic filtering applications. With ratings up to 480 Vac and capacitance values from 1 UF to 35 UF, these capacitors feature low inductance, flame-retardant resin encapsulation, and meet IEC and UL standards. They are suitable for vibration and shock resistance, with specific mounting and installation instructions to ensure durability and safety in demanding industrial environments.
Vishay MKP1847H61025JP4 Metallized Polypropylene Film Capacitor Specifications:
- Capacitance range: 1 UF to 35 UF, tolerance: +10%, +5%
- Rated voltage: 250 Vac, 310 Vac, 350 Vac, 480 Vac (Unac)
- Maximum continuous AC voltage at 85°C: 250 Vac, 310 Vac, 350 Vac, 480 Vac
- Reference standards: IEC 61071, IEC 60068, UL 810 (pending)
- Climatic testing class: 40/105/56B
- Temperature rating: 85 °C, maximum case temperature: 105 °C
- Dielectric: Polypropylene film, with metallized dielectric film electrodes
- Construction: Mono and series configurations, resin-sealed plastic case
- Self inductance: <1 nH per mm of lead spacing
- Insulation resistance: >10,000s at 500 V after 1 min
- Life expectancy: <10 x 10^-9/h at 0.5 x Unac and 40°C
- Dimensions include: length, width, height with specified tolerances; terminal types include tinned wire, pins
- Compliance: UL 810, RoHS, segmented film compliant

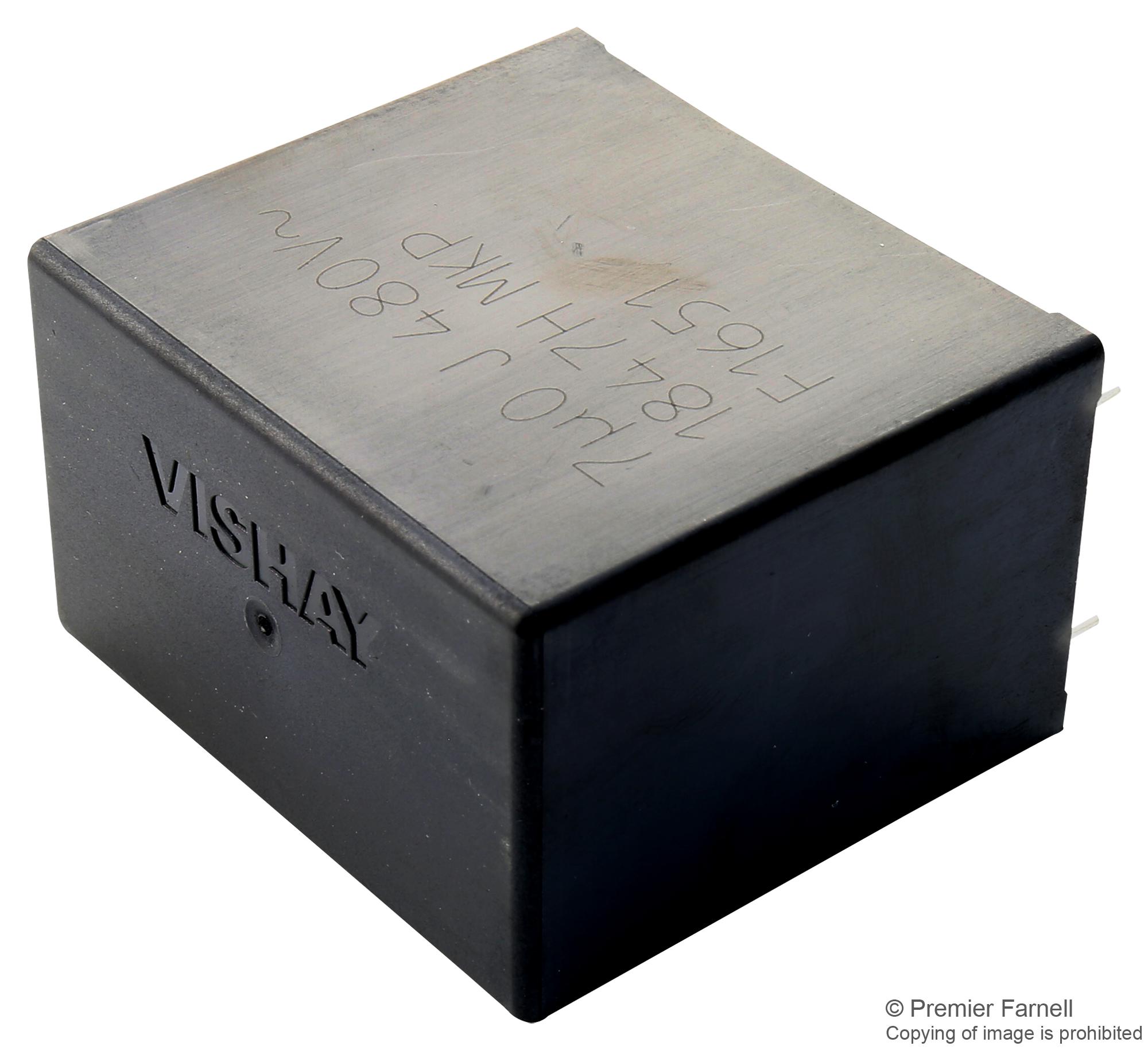

Buy the Vishay MKP1847H – Reliable Capacitors for Industrial Applications
Enhance your industrial projects with Vishay MKP1847H capacitors, offering high humidity robustness, high voltage ratings up to 480 Vac, and a broad capacitance range. Designed for outdoor and renewable energy applications, these flame-retardant, resin-encapsulated capacitors meet strict IEC and UL standards, ensuring durability against vibration and shock. Their low inductance and high insulation resistance make them ideal for harmonic filtering, UPS systems, and energy-efficient solutions. Order online now for dependable performance and seamless integration into your industrial systems.
Buy Vishay MKP1847H capacitors now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay MKP1847H61025JP4?
You can click on the BUY or RFQ button to purchase MKP1847H61025JP4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H61025JP4?
You can download the MKP1847H61025JP4 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H61025JP4?
Vishay
