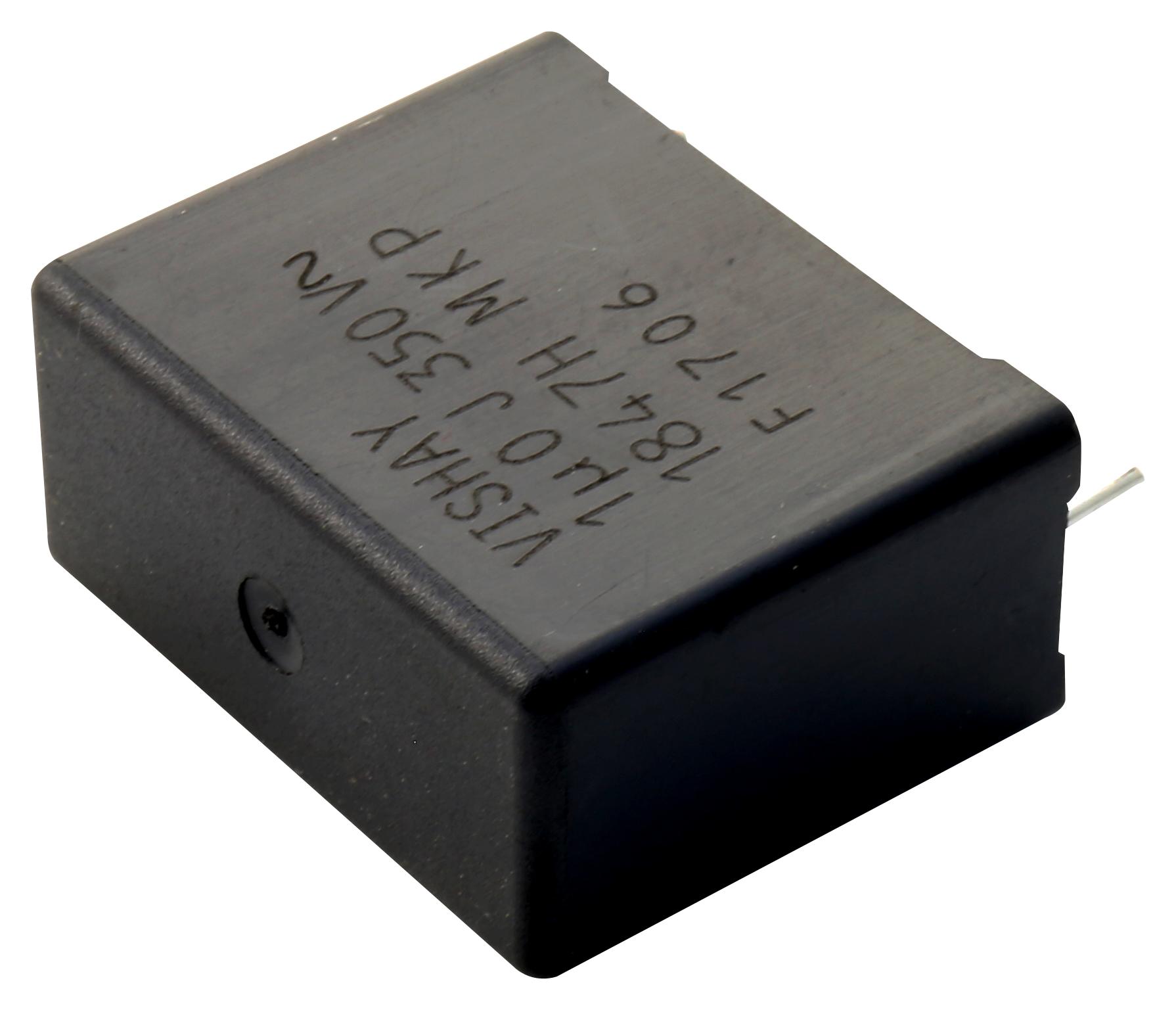

Vishay MKP1847H61031JP2 AC Filtering Capacitor
The MKP1847H series offers metallized polypropylene film capacitors designed for high humidity robustness, outdoor, UPS, renewable energy, and harmonic filtering applications. Constructed with low inductance wound cell elements in flame-retardant resin-sealed cases, they withstand vibration, shock, and thermal stress. Rated at 85°C with voltage ratings up to 480 Vac, these capacitors meet IEC standards. Suitable for mounting on printed circuit boards, they feature reliable insulation resistance, self-healing properties, and are RoHS compliant. Variants include different capacitance values, voltage tolerances, and pin configurations, making them versatile for industrial uses.
Vishay MKP1847H61031JP2 AC Filtering Capacitor Specifications:
- Capacitance range: 1 UF to 35 UF
- Rated temperature: 85°C
- Maximum continuous AC voltage: 250 Vac to 480 Vac depending on model
- Climatic testing class: 40/105/56B
- Dielectric: Polypropylene film
- Construction: Metallized dielectric film in flame-retardant sealed resin case
- Insulation resistance: > 10,000 s after 1 min at 500 V (typical)
- Withstanding DC voltage: 1.5 Un for 10 s, 10 mA cutoff
- Life expectancy: < 10 x 10^-6/h at 0.5 Un, 40°C
- Mounting: PCB mounted with stand-off pips, mechanically fixed via leads
- Dimensions: Varies by capacitance and pin configuration, typical length 15-35 mm
- Certifications: UL 810 pending, RoHS compliant
- Environmental: Resistant to high humidity, vibration, shock
- Standards: IEC 61071, IEC 60068, UL 810
Buy the Vishay MKP1847H – Reliable AC Filtering Capacitors for Industrial Applications
Discover the durability and reliability of Vishay MKP1847H AC filtering capacitors. Designed for outdoor, industrial, and renewable energy applications, these capacitors offer excellent humidity resistance, stable performance under high voltage, and compliance with safety standards. Perfect for harmonic filtering, UPS systems, and vibration-prone environments, they provide long-term stability with low dielectric loss and self-healing properties. Shop online today and experience premium quality that meets your industrial requirements with quick delivery and assured performance.
Buy Vishay MKP1847H high-performance AC filter capacitors now and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay MKP1847H61031JP2?
You can click on the BUY or RFQ button to purchase MKP1847H61031JP2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H61031JP2?
You can download the MKP1847H61031JP2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H61031JP2?
Vishay
