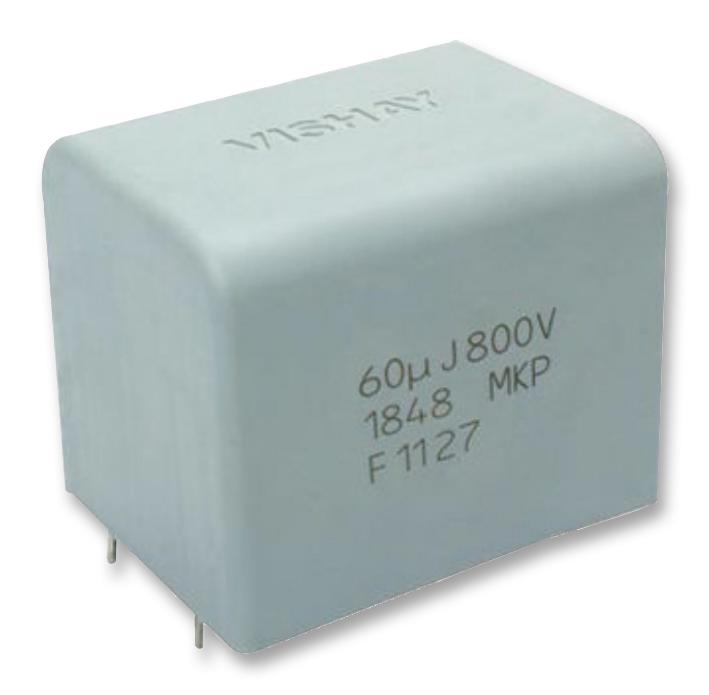

Vishay MKP1848510094K2 DC Link Capacitor
High-performance DC-link capacitors with metallized polypropylene film suitable for automotive, renewable energy, motor drives, and power supply applications. They feature low ESR, high peak and RMS current capabilities, and are qualified to AEC-Q200 standards. Designed with sealed plastic case and tinned leads, these capacitors withstand voltages up to 1500 V at 70°C, with temperature ratings from -55°C to +105°C. They ensure reliable filtering and power smoothing in demanding industrial and automotive environments, offering excellent electrical stability, vibration resistance, and long life expectancy.
Vishay MKP1848510094K2 DC Link Capacitor Specifications:
- Capacitance range: 1 UF to 400 UF, tolerance ±5%
- Rated voltage: 450 V to 1200 V, voltage derating at higher temperatures
- Material: Polypropylene film, metallized electrodes
- Temperature range: -55°C to +105°C, maximum case temperature 105°C
- Construction: Mono, sealed with flame-retardant resin
- Mounting: Radial, terminals tinned wires
- Self inductance: < 1nH per mm lead spacing
- Withstanding voltage: 1.5 Unpc for 10 seconds, cut-off current 10 mA
- Peak ripple voltage: 0.2 x Unpc, climatic class 40/105/56
- Dimensions: Various sizes with specific pin configurations (2, 4, 6, 8, 12 pins), height from 30mm to 70mm
- Compliance: RoHS, IEC standards IEC 61071, IEC 60068
- Application: DC filtering, power train, EV/HEV, renewable inverters, motor drives
- Maximum ripple current capabilities: Up to 1600 A at 85°C, depending on size
- Shelf life: > 10 years under recommended storage conditions
- Designed to withstand vibration, shock, and electrical stress in industrial environments
Buy the Vishay MKP1848510094K2 – Reliable DC-Link Capacitor for Industrial Applications
Order Vishay MKP1848510094K2 online today and enhance your power systems with high-performance, reliable DC filtering. These capacitors are specially designed for demanding industrial and automotive applications, supporting voltages up to 1500V, with excellent ESR, peak current, and long-term stability. Their sealed construction ensures durability under vibration, shock, and temperature fluctuations, making them perfect for EV power trains, renewable energy inverters, and motor drives. Purchase now for trusted quality and optimal system performance.
Get Vishay MKP1848510094K2 today—built for precision, high voltage stability, and long-lasting durability in demanding industrial and automotive systems.
Frequently Asked Questions
Where can I buy Vishay MKP1848510094K2?
You can click on the BUY or RFQ button to purchase MKP1848510094K2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848510094K2?
You can download the MKP1848510094K2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848510094K2?
Vishay
