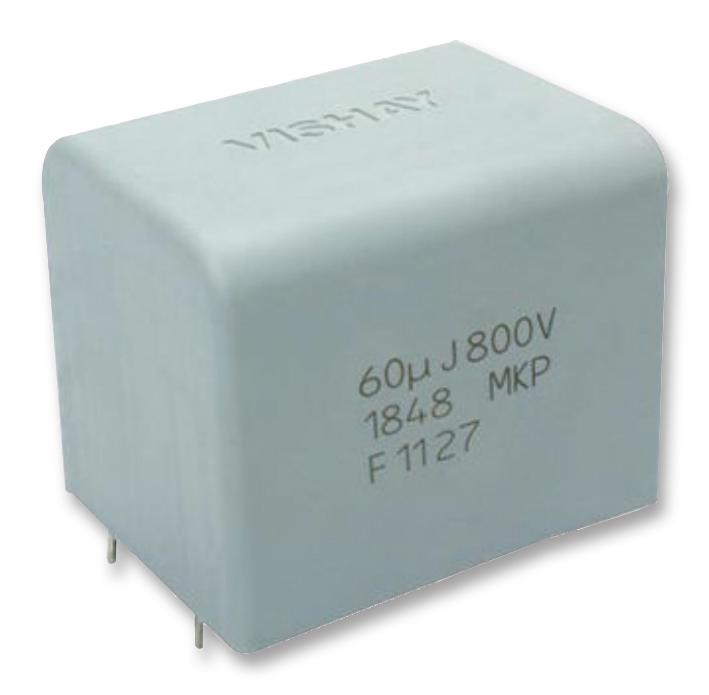

Vishay MKP1848622454P4 DC-Link Capacitor
The MKP 1848 DC-Link capacitor by Vishay Roederstein is a high-performance metallized polypropylene film capacitor designed for DC filtering in industrial applications such as EV powertrain, renewable energy inverters, motor drives, and power supplies. It features low ESR, high peak and RMS current capabilities, and is AEC-Q200 qualified. Encased in a sealed plastic resin flame-retardant housing, it offers reliable operation at rated voltages up to 1200 V and temperatures up to 105°C, with rigorous testing for vibration, shock, and regular electrical standards.
Vishay MKP1848622454P4 DC-Link Capacitor Specifications:
- Capacitance Range: 1 UF to 400 UF
- Capacitance Tolerance: 5%
- Rated Voltage Range: 450 V to 1200 V
- Temperature Rating: 85°C, Max case temperature 105°C with derating
- Dielectric: Polypropylene film
- Construction: Mono, sealed plastic case with resin
- Terminals: Tinned wires, radial mounting
- Self Inductance: < 1nH per mm of lead spacing
- Peak Ripple Voltage: 0.2 x Unpc
- Certifications: AEC-Q200, RoHS compliant
- Climatic Test: 40/105/56
- Standards: IEC 61071, IEC 60068
- Maximum Ripple Voltage: According to rated voltage and temperature
- Case Dimensions: Refer to detailed datasheet for specific sizes
- Mounting: Radial, mechanically fixed
Buy the Vishay MKP1848622454P4 – Reliable DC-Link Capacitor for Industrial Applications
Purchase the Vishay MKP 1848 DC-Link capacitor online today and ensure your industrial systems benefit from high peak current capabilities, low ESR, and robust construction. This metallized polypropylene film capacitor is ideal for high voltage DC filtering in electric vehicle powertrain, renewable energy inverters, and motor drives. With rigorous testing for vibration, shock, and safety standards, it guarantees long-term durability at voltages up to 1200 V and temperatures up to 105°C. Secure your supply chain with quick online ordering and fast delivery.
Buy Vishay MKP1848622454P4 now and experience unmatched reliability and performance in industrial DC filtering applications.
Frequently Asked Questions
Where can I buy Vishay MKP1848622454P4?
You can click on the BUY or RFQ button to purchase MKP1848622454P4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848622454P4?
You can download the MKP1848622454P4 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848622454P4?
Vishay
