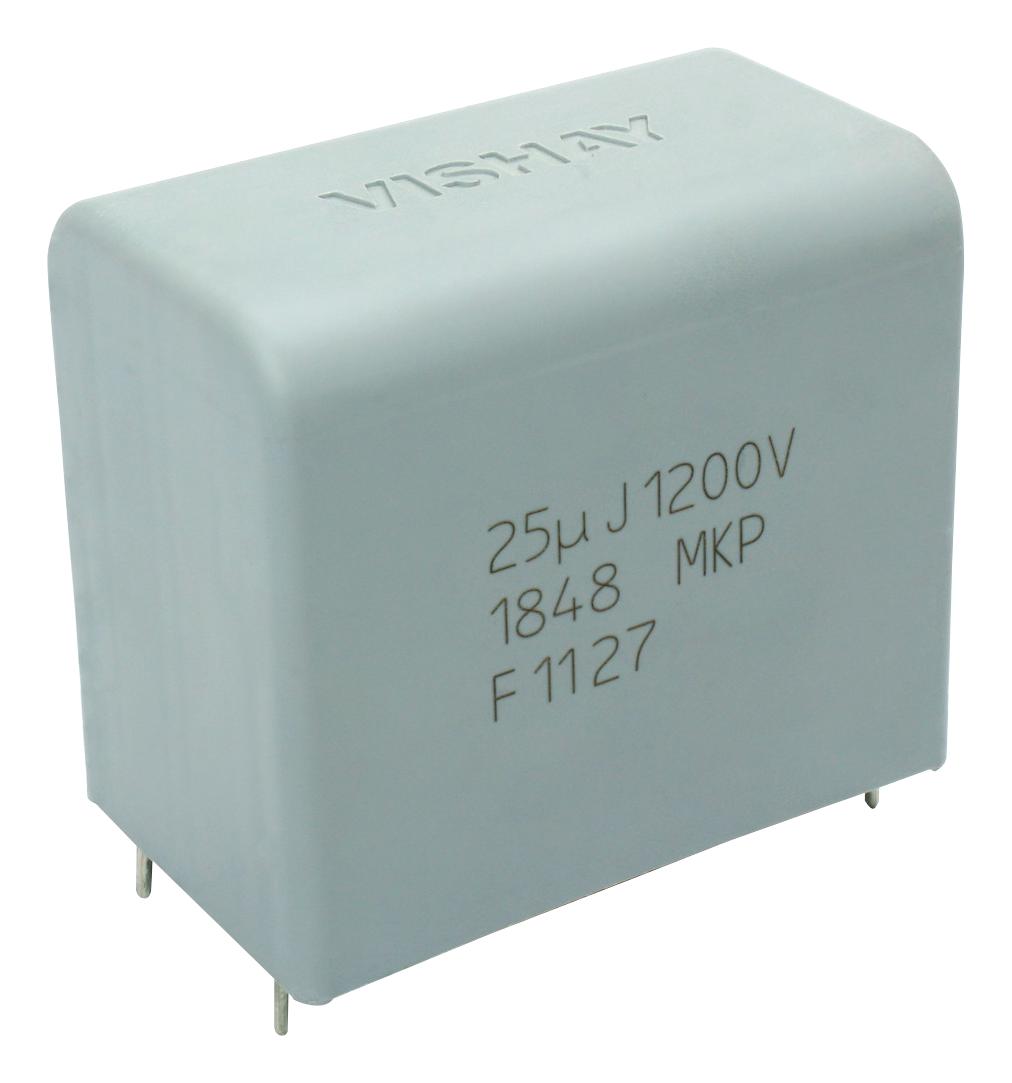

Vishay MKP1848C71050JY5 DC-Link Capacitor
The MKP1848C71050JY5 is a radial leaded DC-Link film capacitor featuring polypropylene film dielectric and metalized electrodes. It is designed with a mono construction and tinned wire terminals. The capacitor is encased in a flame-retardant resin-sealed plastic housing, offering high density, and supports high ripple current capability. It also exhibits low equivalent series resistance (ESR) and low equivalent series inductance (ESL), suitable for demanding power applications.
Vishay MKP1848C71050JY5 DC-Link Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric
- Construction: Mono construction
- Encapsulation: Plastic case sealed with resin, flame retardant
- Terminals: Tinned wire
- Mounting: Radial
- Useful life time: > 100,000 hours at Unpc and 70°C
- Rated temperature: 85°C
- Maximum case temperature: 105°C
- Rated capacitance: 1.0 μF
- Dimensions: Diameter 20 mm, Height 45 mm
- Ripple current capability: High
- Low ESR and ESL
- Maximum DC voltage: 700 V at 70°C
- Reference standards: IEC 61071, IEC 60068
- Chemical composition: Metallized polypropylene film
- Flammability: UL 94V-0
- Connection: Tinned wire terminals
Buy the Buy Vishay MKP1848C71050JY5 Part Number Online
Order the Vishay MKP1848C71050JY5 online today to ensure your power electronics system benefits from high-density polypropylene film technology, excellent ripple current handling, and long operational life. This capacitor’s low ESR and ESL enhance efficiency and reliability in demanding renewable energy inverters, UPS, and motor drives. Compact and flame-retardant sealed in a resin case, it guarantees safety, durability, and superior performance. Purchase now for seamless integration into your power management and industrial applications.
Get Vishay MKP1848C71050JY5 today—built for high ripple currents, long-lasting durability, and reliable power conversion performance.
Frequently Asked Questions
Where can I buy Vishay MKP1848C71050JY5?
You can click on the BUY or RFQ button to purchase MKP1848C71050JY5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848C71050JY5?
You can download the MKP1848C71050JY5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848C71050JY5?
Vishay
