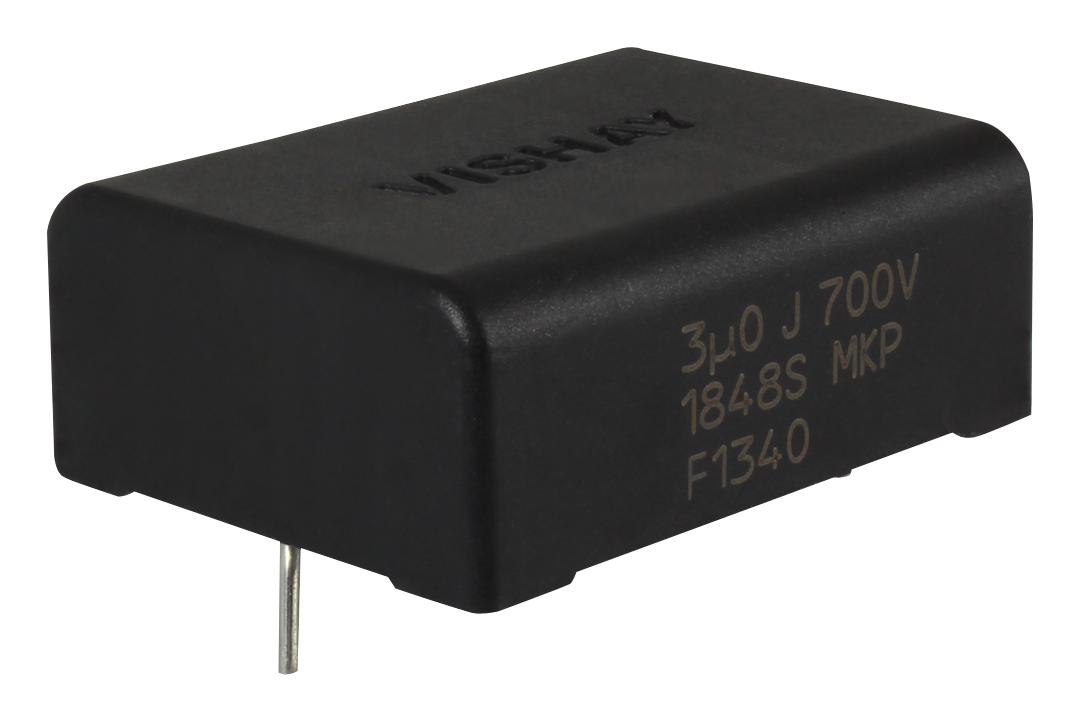

Vishay MKP1848S53070JK2A DC-Link Capacitor
Metallized polypropylene film capacitor designed for high ripple current capability, low ESR, and long lifetime up to 100,000 hours at 70°C. Suitable for PV micro inverters, LED street lighting, and EV/HEV onboard chargers, it features a slim profile with low building height, robust construction, and excellent vibration and shock resistance. With voltage ratings up to 1000V and operating temperature of 105°C, it offers reliable performance in demanding industrial applications. Encased in a sealed, flame-retardant plastic case with tin-plated terminals, it adheres to strict safety and environmental standards for durable electrical performance.
Vishay MKP1848S53070JK2A DC-Link Capacitor Specifications:
- Dielectric: Metallized polypropylene film
- Construction: Mono construction, sealed in flame-retardant plastic case with resin
- Rated voltage range: 500 V to 1000 V
- Capacitance range: 2 UF to 100 UF
- Capacitance tolerance: 5%
- Temperature Range: -55°C to +105°C, rated at 85°C
- Maximum case temperature: 105°C with voltage derating
- Climatic class: 40/105/56
- Self inductance (Ls): <1 nH per mm of lead spacing
- Rated lifetime: > 100,000 hours at 70°C
- Ripple current capability: High with low ESR and ESL
- Terminals: Tinned wire, radial mounting
- Construction material: Metallized dielectric polypropylene film
- Standards compliance: IEC 61071, IEC 60068
- Dimensions: Height varies with option, typical case size around 12 - 57.5 mm in height
- Isolation resistance: >10,000 s after 1 min at rated voltage
- Sealing: Resin-encapsulated, flame retardant
- Power dissipation: Limited to prevent exceeding maximum component temperature rise
Buy the Vishay MKP1848S – Reliable DC-Link Capacitor for Industrial Applications
Purchase Vishay MKP1848S DC-Link capacitor today for reliable and durable operation in industrial applications. Designed with metallized polypropylene film, it offers high ripple current capacity, low ESR, and an extended lifespan exceeding 100,000 hours at 70°C. Ideal for PV micro inverters, LED street lighting, and EV onboard chargers, this capacitor features a slim profile, robust construction, and excellent vibration and shock resistance. Easy to mount with radial terminals, it ensures stable electrical performance under harsh conditions. Order now to experience high-quality, long-term reliability.
Get Vishay MKP1848S today—built for high ripple current, exceptional stability, and long-lasting performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay MKP1848S53070JK2A?
You can click on the BUY or RFQ button to purchase MKP1848S53070JK2A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848S53070JK2A?
You can download the MKP1848S53070JK2A datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848S53070JK2A?
Vishay
