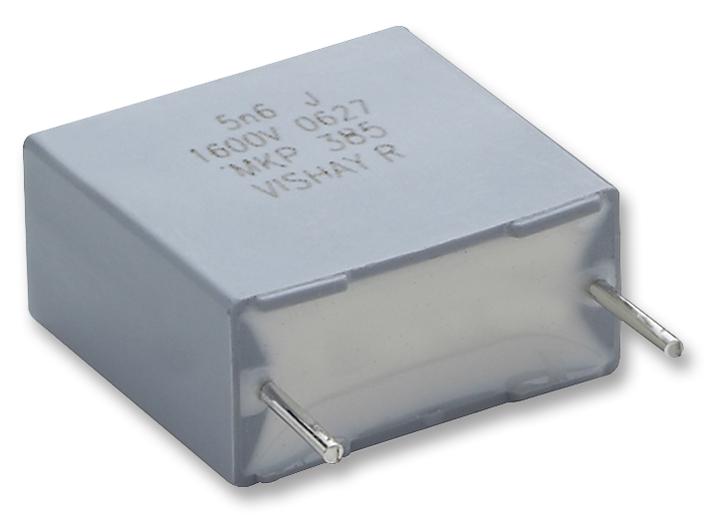

Vishay MKP385410040JFM2B0 High Voltage Polypropylene Capacitor
High-performance AC and pulse metallized polypropylene film capacitors designed for applications requiring high frequency, pulse operations, and high-density packaging. Suitable for SMPS, electronic lighting, motor control, deflection circuits in TVs, loudspeaker crossovers, and filtering circuits. Features include low contact resistance, low dielectric loss, and various voltage ratings up to 2500 V. Constructed with metallized polypropylene film, encapsulated in flame-retardant plastic case, with tinned leads, and compliant with RoHS standards. They are supplied loose or taped on reels, supporting reliable mounting and vibration resistance in demanding environments.
Vishay MKP385410040JFM2B0 High Voltage Polypropylene Capacitor Specifications:
- Capacitance range: 0.00047 pF to 82 μF
- Capacitance tolerance: 25%
- Rated DC and AC temperature: 85°C
- Maximum application temperature: 110°C
- Maximum operating temperature for limited time: 125°C
- Dielectric: Polypropylene film
- Electrodes: Metallized
- Construction: Mono and internal serial configuration
- Encapsulation: Flame-retardant plastic case and epoxy resin
- Leads: Tinned wire
- Rated DC voltage: 160 V to 2500 V
- Rated AC voltage: 110 V to 900 V
- Peak-to-peak voltage: 310 V to 2500 V
- Physical dimensions vary with lead pitch from 5 mm to 52.5 mm
- Compliance: RoHS, IEC 60384-17, UL listed
- Lead pitch: 5 mm to 52.5 mm
- Supply formats: Loose, taped on reel, taped in ammo pack.
Buy the Vishay Series MKP: 385 High Voltage Polypropylene Capacitor: MKP385410040JFM2B0
Order Vishay MKP385410040JFM2B0 online today to secure high-quality polypropylene film capacitors with versatile voltage ratings up to 2500 V. These capacitors feature low dielectric loss, robust construction, and are ideal for applications such as switching power supplies, motor control, and high-frequency filtering. Available in various formats—loose, tape, and reel—these capacitors ensure easy mounting and vibration resistance. Purchase now to enhance your electronic designs with proven reliability, long-term stability, and RoHS compliance for demanding industrial environments.
Buy Vishay MKP385410040JFM2B0 now and experience unmatched reliability and performance with high voltage polypropylene film capacitors designed for demanding industrial applications.
Frequently Asked Questions
Where can I buy Vishay MKP385410040JFM2B0?
You can click on the BUY or RFQ button to purchase MKP385410040JFM2B0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP385410040JFM2B0?
You can download the MKP385410040JFM2B0 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP385410040JFM2B0?
Vishay
