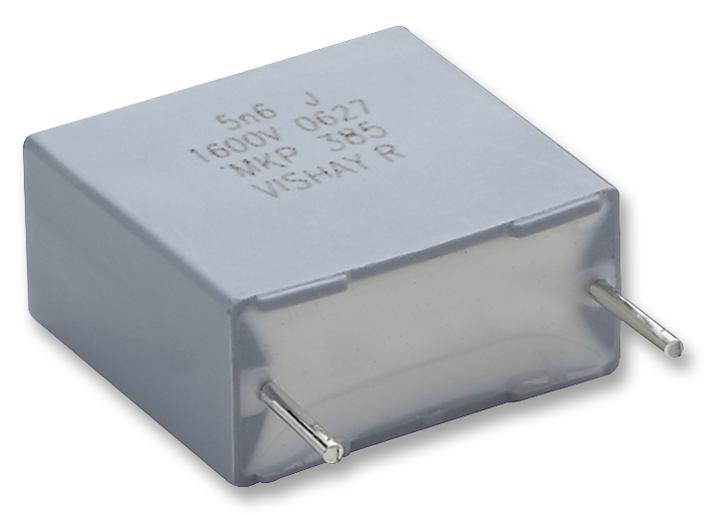

Vishay MKP385420016JDA2B0 High-Voltage Polypropylene Capacitor
Vishay MKP385 series AC and pulse metallized polypropylene film capacitors are designed for high-frequency, pulse, and high-density applications, including switch mode power supplies, electronic lighting, motor control, deflection circuits, and crossover networks. They offer low contact resistance, low dielectric loss, small dimensions, and RoHS compliance, with ratings up to 2000 V and temperature tolerance up to 125°C. These mono and serial construction capacitors are encapsulated in flame-retardant cases, with tinned leads, and can be mounted on printed circuit boards using automatic insertion or fixed with leads and body clamps for vibration resistance.
Vishay MKP385420016JDA2B0 High-Voltage Polypropylene Capacitor Specifications:
- Capacitance range: 0.00047 pF to 82 uF
- Rated DC Temperature: 85°C
- Maximum Application Temperature: 110°C
- Maximum Operating Temperature (limited time): 125°C
- Dielectric: Polypropylene film
- Electrodes: Metallized
- Construction: Mono and internal serial
- Encapsulation: Flame retardant plastic case and epoxy resin
- Leads: Tinned wire
- Rated DC Voltage: 160 V to 2500 V
- Rated AC Voltage: 110 V to 900 V at various pitches
- Peak-to-peak Voltage: up to 2500 V
- Lead Pitch: 5 mm to 52.5 mm, with bent back options
- Dimensions: Length varies with pitch, typical lead length 5-16 mm
- Climatic Classification: IEC 60068-1 55/110/56
- Temperature Range: -55°C to +125°C
- RoHS compliant
- Test and inspection comply with IEC 60384-17 standards
Buy the Vishay Series MKP385 High-Voltage Polypropylene Capacitor: MKP385420016JDA2B0
Order the Vishay MKP385 high-voltage polypropylene capacitor online today. Designed for high-frequency, pulse, and motor control applications, this capacitor offers excellent electrical stability, low dielectric loss, and robust construction. With ratings up to 2000 V and temperature tolerance up to 125°C, it is ideal for switch mode power supplies, electronic lighting, deflection circuits, and crossover networks. Purchase now for reliable, high-performance voltage and pulse filtering with easy online shopping and fast delivery.
Get Vishay MKP385420016JDA2B0 high-voltage polypropylene capacitor today—built for high-frequency pulse and motor control reliability.
Frequently Asked Questions
Where can I buy Vishay MKP385420016JDA2B0?
You can click on the BUY or RFQ button to purchase MKP385420016JDA2B0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP385420016JDA2B0?
You can download the MKP385420016JDA2B0 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP385420016JDA2B0?
Vishay
