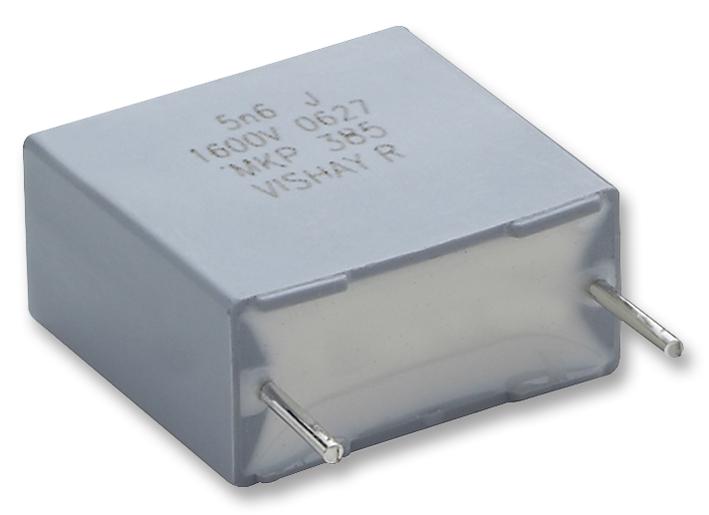

Vishay MKP385510040JIM2T0 Polypropylene Capacitor
Vishay BCcomponents MKP385 series are high-quality AC and pulse metallized polypropylene film capacitors designed for high frequency, pulse operations, motor control, and electronic lighting. Featuring low contact resistance, RoHS compliance, and compact dimensions for high-density packaging, these capacitors are suitable for SMPS, deflection circuits, loudspeaker crossovers, and storage circuits. They are potted in flame-retardant plastic cases with epoxy resin, with ratings up to 2500 V, rated temperature of 85°C, and maximum application temperature of 110°C for reliable performance in demanding electronic applications.
Vishay MKP385510040JIM2T0 Polypropylene Capacitor Specifications:
- Capacitance range: 0.00047 pF to 82 uF
- Dielectric: Polypropylene film
- Electrodes: Metallized
- Construction: Mono and internal serial
- Rated DC temperature: 85°C
- Maximum operating temperature: 110°C
- Rated DC voltage: 160 to 2500 V
- Rated AC voltage: 110 to 900 V
- Peak-to-peak voltage: 310 to 2500 V
- Capacitance tolerance: 25%
- Climatic testing class: 55/110/56 IEC 60068-1
- Leakage current and impedance: Low loss dielectric, RoHS compliant
- Encapsulation: Flame-retardant plastic case with epoxy resin
- Lead pitch: 5mm to 52.5mm with specific configurations
- Rated temperatures and voltage surges: Suitable for pulse and high-frequency operations
- Supply: Loose in box, taped on reel, or green ammo pack
Buy the Buy Vishay MKP385 Part Number MKP385510040JIM2T0 Online
Order Vishay MKP385 polypropylene film capacitors online today. These high-quality components support high frequency, pulse, and motor control applications. With ratings up to 2500 V and operating temperatures of 85°C, they ensure reliable performance in electronic lighting, deflection, and crossover networks. Their low loss dielectric and RoHS compliance make them ideal for demanding applications. They come in various packing options, including loose, tape, reel, and ammo packs, providing flexibility for automated assembly and high-density packaging needs.
Get Vishay MKP385 series capacitors today—designed for high-frequency pulse and motor control applications with reliable performance and durability.
Frequently Asked Questions
Where can I buy Vishay MKP385510040JIM2T0?
You can click on the BUY or RFQ button to purchase MKP385510040JIM2T0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP385510040JIM2T0?
You can download the MKP385510040JIM2T0 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP385510040JIM2T0?
Vishay
