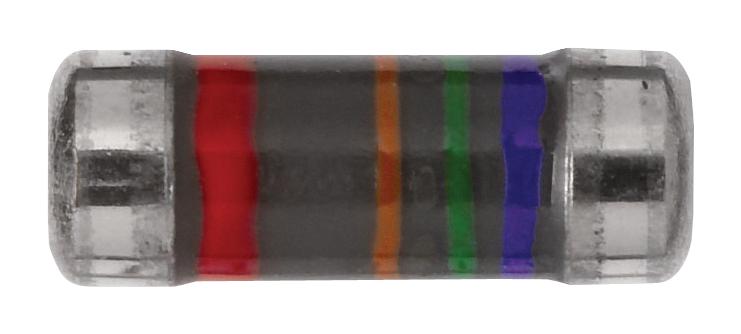

Vishay MMB02070C1500FB200 Thin Film MELF Resistor
The MMB 0207 professional thin film MELF resistor is designed for high reliability and stability in modern electronics applications. It features advanced metal film technology, excellent stability surpassing class 0.25, and superior pulse load capability. Approved according to EN 140401-803 and AEC-Q200 qualified, it also offers intrinsic sulfur resistance, making it suitable for automotive, telecommunication, and medical equipment where dependable performance is critical. High demand may lead to extended lead times and delivery date fluctuations. This product is sold without discounts, ensuring quality and consistency.
Vishay MMB02070C1500FB200 Thin Film MELF Resistor Specifications:
- DIN size: 0207
- Resistance range: 0.19 to 15 MO
- Resistance tolerance: ±5%, ±2%, ±1%, ±0.5%
- Resistance series: E24, E96
- TCR: +25 ppm/K, +50 ppm/K, +100 ppm/K
- Rated dissipation: 1.0W
- Operating voltage: 350V max
- Permissible film temperature: 155°C
- Operating temperature range: -55°C to 155°C
- Approval: EN 140401-803, AEC-Q200 qualified
- Pulse load capability: Excellent, up to specified limits
- Material: Homogeneous metal alloy film on ceramic substrate
- Termination: Nickel-plated steel with matte tin coating
- Dimensions: Length 5.8 mm, width 2.2 mm, height 3.2 mm
- Compliance: RoHS, REACH, GADSL compliant
Buy the Buy Vishay Thin Film MELF Resistor Part Number MMB02070C1500FB200 Online
Purchase the Vishay MMB02070C1500FB200 thin film MELF resistor online today to ensure high reliability and stability in your electronic projects. With advanced metal film technology, excellent stability surpassing class 0.25, and superior pulse load capabilities, this resistor is optimized for automotive, telecommunication, and medical applications requiring dependable performance. Approved according to EN 140401-803 and qualified under AEC-Q200 standards, it offers intrinsic sulfur resistance and long-term stability. Its compact size fits seamlessly into surface-mount assemblies, providing precision and durability for demanding environments.
Buy Vishay MMB02070C1500FB200 high stability precision resistor now and experience unmatched reliability in critical electronic applications.
