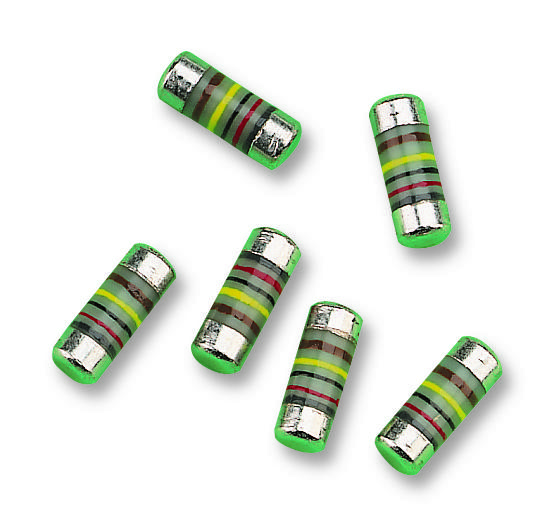

Vishay MMB02070C4700FB200 Thin Film MELF Resistor
The MMB 0207 professional thin film MELF resistor is designed for high reliability and stability in modern electronic applications. It features advanced metal film technology, excellent stability surpassing class 0.25, and superior pulse load capability. The resistor is approved according to EN 140401-803, qualified to AEC-Q200 standards, and possesses intrinsic sulfur resistance. Its proven reliability makes it suitable for automotive, telecommunications, and medical equipment.
Vishay MMB02070C4700FB200 Thin Film MELF Resistor Specifications:
- Resistance Range: 0.19 to 15 MO
- Resistance Tolerance: ±2%
- Temperature Coefficient: +50 ppm/K
- Rated Dissipation: 1.0W
- Operating Voltage: 350V
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to 155°C
- Dimensions: Length 5.8 mm ±0.15, Width 2.2 mm ±0.2, Height 3.2 mm ±0.2
- Material: Metal film on ceramic body
- Terminations: Nickel-plated steel with tin final coating
- Approval: EN 140401-803, AEC-Q200
- Pulse Load Capability: Superior, with specific limits for pulse duration and voltage.
Buy the Vishay Series Professional MELF Resistor: 15 MO
Purchase the Vishay MMB0207C4700FB200 thin film MELF resistor online today for unmatched reliability, stability, and performance in automotive, telecom, and medical applications. This high-precision resistor provides excellent pulse load capacity, sulfur resistance, and compliance with industry standards, ensuring long-term durability. With easy online ordering, you can ensure your electronic designs meet demanding specifications while benefiting from Vishay’s proven quality. Don’t miss out—order now to enhance your project’s reliability and performance.
Get Vishay MMB0207C4700FB200 today—built for high stability and long-lasting performance in critical electronic systems.
Frequently Asked Questions
Where can I buy Vishay MMB02070C4700FB200?
You can click on the BUY or RFQ button to purchase MMB02070C4700FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB02070C4700FB200?
You can download the MMB02070C4700FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB02070C4700FB200?
Vishay
