Vishay MMB02070C4708FB200 Thin Film MELF Resistor
The MMB 0207 professional thin film MELF resistor is designed for high-reliability modern electronics, offering excellent stability surpassing class 0.25 and superior pulse load capacity. Utilizing advanced metal film technology, it features inherent sulfur resistance, approved under EN 140401-803, and is AEC-Q200 qualified. Suitable for automotive, telecommunication, and medical applications, this resistor provides dependable performance in demanding environments. Its precise construction ensures consistent resistance values, making it ideal for precision circuitry. The resistor's compact size and high stability make it a preferred choice in critical electronic systems requiring long-term stability and durability.
Vishay MMB02070C4708FB200 Thin Film MELF Resistor Specifications:
- Series: MMB 0207
- Type: Thin film MELF resistor
- Resistances: 0.19 to 15 MO
- Resistance Tolerance: ±2%, ±5%
- Resistance Coefficient: +50 ppm/K, +100 ppm/K
- Rated Dissipation: 1.0W
- Operating Voltage: 350 V max
- Temperature Range: -55°C to 155°C
- Film Temperature: Max 155°C
- Resistance Range: 0.19 MO to 15 MO
- Resistance Change after 8000 hours at 70°C: <0.5%
- Dimensional: Length 5.8mm, Width 2.2mm
- Material: Metal film on ceramic substrate
- Certifications: EN 140401-803, IECQ-CECC, AEC-Q200
- Compliance: RoHS, WEEE, allergen-free construction

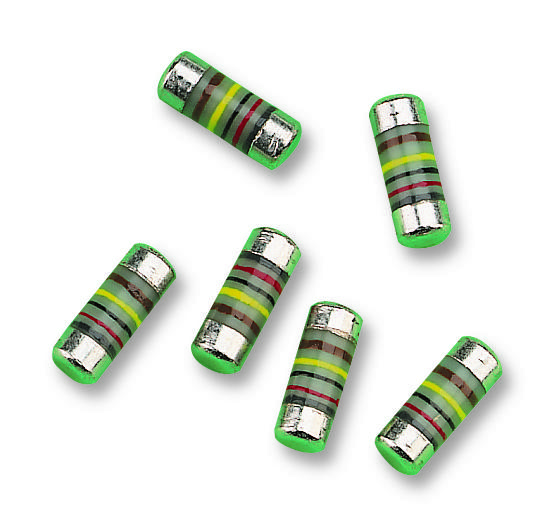

Buy the Vishay Series MMB 0207 Professional Thin Film MELF Resistor: 562R
Purchase the Vishay Series MMB 0207 thin film MELF resistor online today for your high-reliability applications. Featuring advanced metal film technology, these resistors offer superb stability exceeding class 0.25, excellent pulse load capacity, and inherent sulfur resistance. Approved under EN 140401-803 and AEC-Q200 qualified, they are perfect for automotive, telecommunication, and medical equipment. Compact and robust, these resistors provide consistent resistance values over long-term operation, ensuring your electronic systems operate reliably under demanding conditions. Get yours now for quality and durability in every component.
Order your Vishay Series MMB 0207 high-performance thin film MELF resistor today and ensure long-term reliability for your critical electronic projects.
