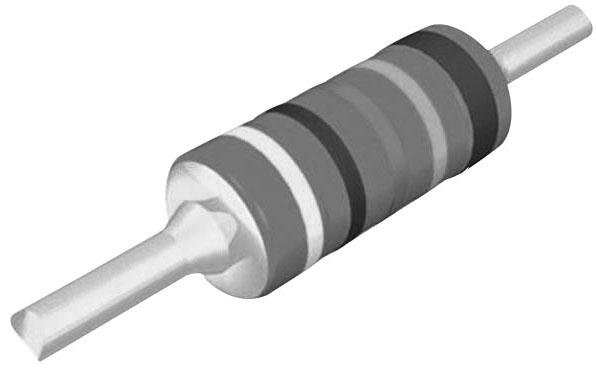

Vishay MRS25000C4753FRP00 Thin Film Leaded Resistor
Vishay MRS16 and MRS25 are professional thin film leaded resistors designed with a homogeneous metal alloy film on high-grade ceramic. They feature a helical groove in the resistive layer, with electrolytic copper tinned connection wires welded to end-caps, and are coated for protection. Available in small outline sizes, these resistors offer low noise, high stability, and a resistance range from 4.99 Ω to 1 MΩ for MRS16 and 1.2 to 10 MΩ for MRS25. Suitable for general purposes, they operate up to 155°C with rated dissipation of 0.4 W and 0.6 W respectively, for reliable electronic circuit functionality.
Vishay MRS25000C4753FRP00 Thin Film Leaded Resistor Specifications:
- Technology: metal film
- DIN sizes: 0204 (MRS16), 0207 (MRS25)
- Resistance Range: 4.99 Ω to 1 MΩ (MRS16), 1.2 to 10 MΩ (MRS25)
- Resistance Tolerance: ±1%
- Temperature Coefficient: +50 ppm/K
- Rated Dissipation: 0.4 W (MRS16), 0.6 W (MRS25)
- Operating Voltage: 200 V (MRS16), 350 V (MRS25)
- Operating Temperature Range: -55°C to 155°C
- Peak Film Temperature: 185°C
- Insulation Voltage: 300 V (MRS16), 500 V (MRS25)
- Body Dimensions: MRS16 - 29 mm length, 1.6 mm diameter; MRS25 - 28 mm length, 25 mm diameter
- Mass: 125 mg (MRS16), 220 mg (MRS25)
Buy the Buy Vishay MRS16 Part Number 28724 Online
Order Vishay MRS16 series thin film leaded resistors online today for precise resistance, high stability, and low noise performance. These resistors are ideal for general electronic applications, supporting a wide temperature range from -55°C to 155°C with rated dissipation of 0.4 W. Their compact size and robust construction ensure durability and reliable circuit operation. Perfect for diverse industrial and consumer electronics, these resistors help maintain circuit performance over time. Purchase now to enhance your project’s reliability with Vishay's quality components.
Order your Vishay Series MRS16 resistance resistor today and ensure dependable quality in your electronic projects.
