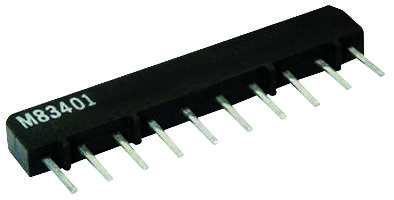

Vishay MSP08A031K00GDA Thick Film Resistor Network
The MSP series thick film resistor networks are durable, molded, and designed for high reliability in various electronic applications. Featuring isolated, bussed, and dual terminator schematics, these components offer low temperature coefficients (-55°C to +125°C), rugged construction, and compatibility with automatic insertion equipment. Available in multiple resistance ranges up to 2.2MΩ, with standard resistance values, these resistor networks are suitable for pull-up, pull-down, and termination functions in digital and power circuits, ensuring reduced assembly costs and robust performance in demanding environments.
Vishay MSP08A031K00GDA Thick Film Resistor Network Specifications:
- Maximum Voltage: 200 V dielectric strength
- Resistance Range: 10Ω to 2.2MΩ
- Resistance Tolerance: ±1%, ±2%, ±5%
- Operating Temperature: -55°C to +125°C
- Storage Temperature: -55°C to +150°C
- Body Material: Molded epoxy
- Terminals: Copper alloy, solder plated
- Power Rating (A profile): 0.20 W to 1.25 W depending on package
- Dimensions: MSP06A - 0.590 in (14.99 mm) length, MSP08A - 0.790 in (20.07 mm) length, and others as specified
- Insulation Resistance: > 100 MΩ
- Vibration Endurance: 20 g for 12 hours
- Shock Resistance: 100 g for 18 shocks
- Solderability: Meets MIL-STD-202, Method 208E
- Marking: Resistance value and tolerance
Buy the Buy Vishay MSP Series Thick Film Resistor Network Part Number MSP08A031K00GDA Online
Purchase the Vishay MSP08A031K00GDA resistor network online now and enjoy our fast, secure shipping. Designed for high reliability and low noise, these resistor networks are ideal for digital signal termination, pull-up/pull-down applications, and precision circuitry. With resistance values up to 2.2MΩ and operating temperatures from -55°C to +125°C, they provide excellent performance in demanding environments. Ensure your electronic projects are equipped with durable, high-quality resistor networks that simplify assembly and reduce costs—order today to experience our top-tier service and product quality.
Order your Vishay Series MSP08A031K00GDA resistor network today and ensure robust, reliable performance for your digital and power applications.
Frequently Asked Questions
Where can I buy Vishay MSP08A031K00GDA?
You can click on the BUY or RFQ button to purchase MSP08A031K00GDA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MSP08A031K00GDA?
You can download the MSP08A031K00GDA datasheet or visit the Vishay website for support.
Who is the manufacturer of MSP08A031K00GDA?
Vishay
