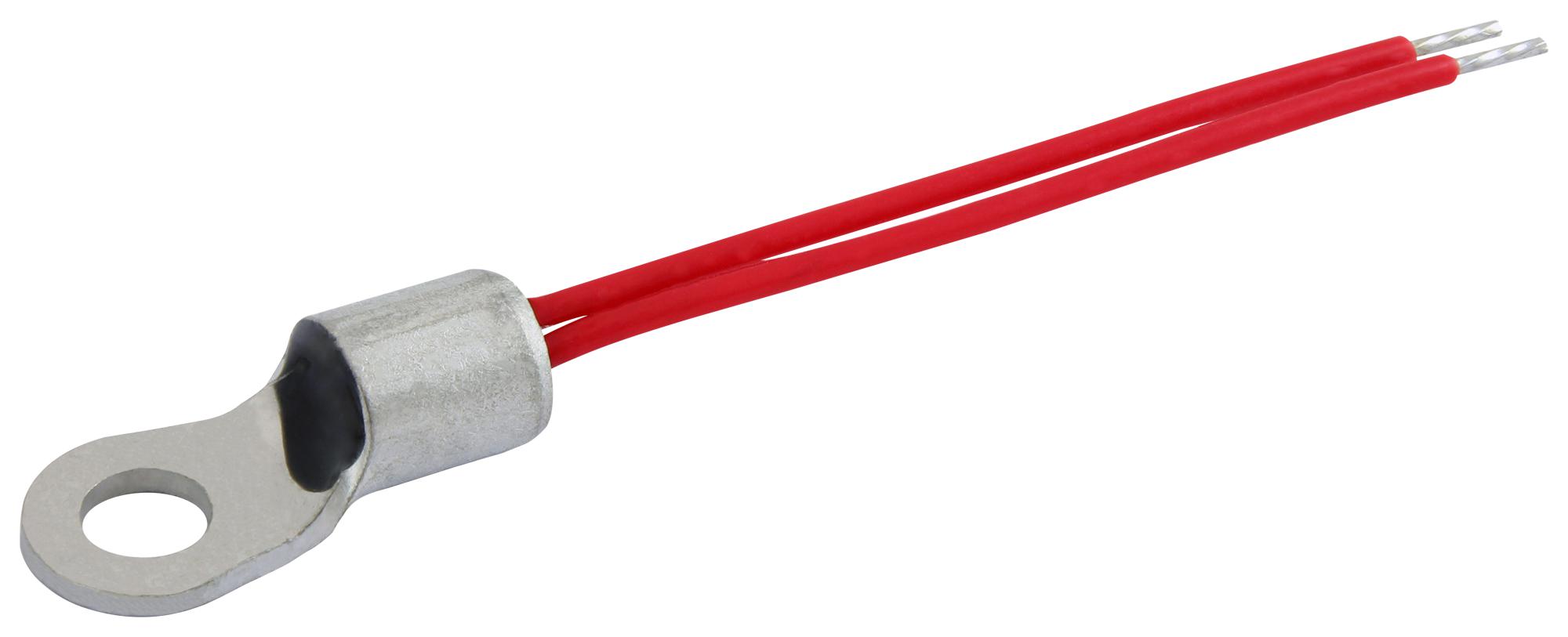

Vishay NTCALUG01A103F161L NTC Thermistor Sensor
The NTCALUG01A Series features rugged, surface-mount NTC thermistor sensors mounted on insulated copper ring lugs, ideal for surface sensing applications requiring electrical insulation and thermal contact. Manufactured with PTFE insulation and epoxy coating, these sensors are suitable for screw mounting on metal surfaces using M3 or M3.5 screws, with leads twist-tinned or soldered for easy PCB integration. They are RoHS compliant, AEC-Q200 qualified, and recognized by UL for reliable performance in demanding environments, making them perfect for temperature sensing and control in industrial and automotive applications.
Vishay NTCALUG01A103F161L NTC Thermistor Sensor Specifications:
- Resistance values: 4.7K to 100K at 25°C with tolerances of 1-5%
- Operating temperature range: -40°C to +150°C
- Response time: 275 seconds
- Dissipation factor: 23 mW/K
- Thermal time constant: 275 seconds
- Unusually rugged construction with PTFE insulation and epoxy coating
- Mounting: M3 or M3.5 screw, leads suitable for soldering or crimping
- Lead length options: 38 mm, 80 mm, 160 mm
- Material: PTFE insulated, epoxy-coated chip sensor on copper lug
- UL Recognized, RoHS compliant, and AEC-Q200 qualified
- Weight: approximately 1.5 to 2.3 grams
- Test voltage: 3.4 kV
Buy the Buy Vishay NTCALUG01A Series NTC Thermistor Part Number NTCALUG01A103F161L Online
Order the Vishay NTCALUG01A103F161L thermistor sensor online today to ensure precise surface temperature measurement with rugged construction, insulated mounting, and wide temperature range. Designed for industrial, automotive, and control systems, this sensor offers easy mounting via screws, suitable for metal surfaces, with leads ideal for soldering or crimping. Its PTFE insulation provides excellent electrical isolation while maintaining thermal contact. RoHS compliant and UL recognized, this thermistor guarantees reliable performance in challenging environments, enhancing your temperature control solutions effectively.
Buy Vishay NTCALUG01A103F161L now and experience unmatched reliability and accurate temperature sensing in critical industrial and automotive applications.
