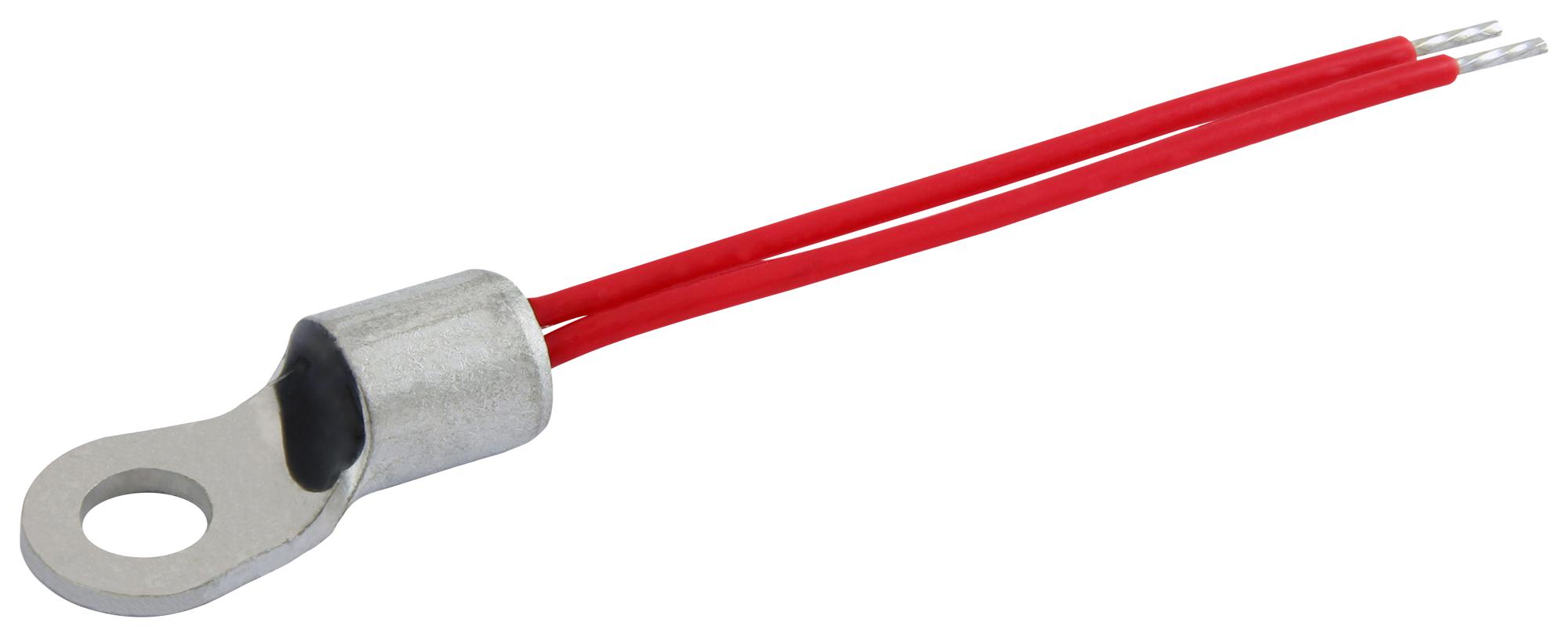

Vishay NTCALUG01A103F800 Temperature Sensor
The NTCALUGO1A series features ruggedly built NTC thermistor sensors with a ring lug for easy mounting, suitable for surface sensing applications requiring good electrical insulation and thermal contact. These thermistors are soldered to AWG#24 stranded copper leads insulated with PTFE and epoxy coating, with certifications including RoHS compliance and UL recognition. Ideal for scenarios demanding precise temperature sensing and insulation, they come in various resistance values, lengths, and tolerances, and can be mounted via screws on metal surfaces for reliable thermal contact and electrical isolation.
Vishay NTCALUG01A103F800 Temperature Sensor Specifications:
- Resistance at 25°C: 4.7K to 100KΩ
- Tolerance on Rs-value: ±1% to ±5%
- Operating temperature range: -40°C to +150°C
- Dissipation factor: 23 mW/K
- Thermal time constant: 275 s
- Lead material: Tinned copper, AWG#24
- Cable insulation: PTFE
- Cable length options: 38 mm, 80 mm, 160 mm
- Material: Ceramic chip with epoxy coating, ring lug for mounting
- Rated voltage: 600 V (test voltage 3.4 kV)
- Compliance: RoHS, UL recognized, cULus recognized
- Mounting: Via M3 or M3.5 screws, soldering, or crimping
Buy the Vishay Series NTCALUGO1A Thermistor: NTCALUG01A103F800
Buy your Vishay Series NTCALUGO1A thermistor sensor today online for precise temperature measurement, rugged design, and easy mounting. Ideal for surface sensing applications where electrical insulation and thermal contact are critical. With various resistance and length options, these sensors are perfect for industrial, electronic, and control projects requiring reliable thermal sensing and insulation. Order now to ensure dependable performance in your temperature monitoring solutions and benefit from quick delivery and expert support.
Order your Vishay Series NTCALUGO1A thermistor sensor today and ensure reliable surface temperature sensing with rugged construction and excellent thermal contact.
Frequently Asked Questions
Where can I buy Vishay NTCALUG01A103F800?
You can click on the BUY or RFQ button to purchase NTCALUG01A103F800 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG01A103F800?
You can download the NTCALUG01A103F800 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG01A103F800?
Vishay
