Vishay NTCALUG01A104F Temperature Sensor

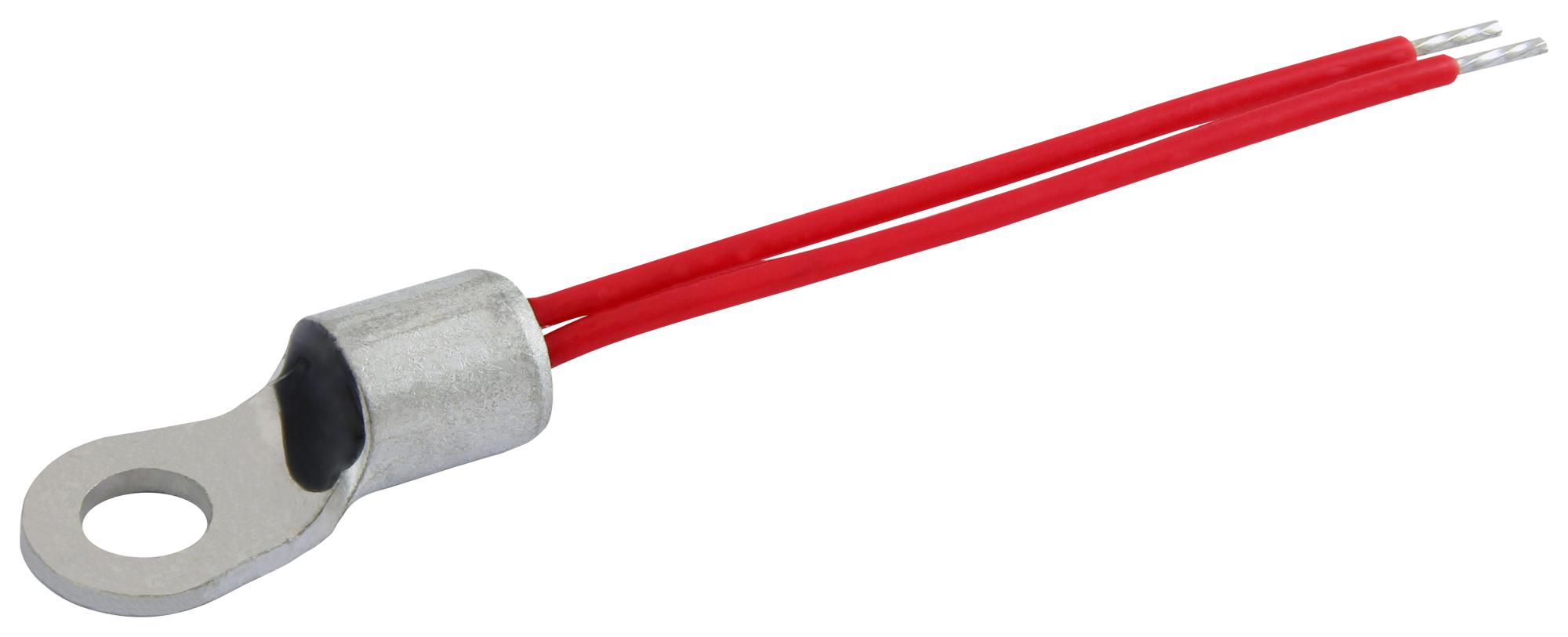

This is a rugged, surface-mount NTC thermistor sensor suitable for sensing applications requiring good electrical insulation and thermal contact with metal surfaces. It features a soldered chip on AWG#24 stranded copper leads with PTFE insulation and epoxy coating, attached to a tin-plated copper ring lug via a buffer layer. The sensor supports easy mounting using M3 screws, with leads suitable for soldering or crimping onto PCBs or metal surfaces. It is UL recognized, RoHS compliant, and qualified under AEC-Q200, making it ideal for precise temperature measurement in industrial and automotive environments.
Vishay NTCALUG01A104F Temperature Sensor Specifications:
- Resistance values: 4.7K to 100K at 25°C
- Tolerance on resistance: ±3% to ±5%
- B-values: 3435K to 4190K
- Operating temperature: -40°C to +150°C
- Dissipation factor: 23 mW/K
- Thermal time constant: 275 seconds
- Material: PTFE-insulated copper leads, epoxy coating, tin-plated copper ring lug
- Lead length options: 38 mm, 80 mm, 160 mm
- Mounting: M3 screw, leads for soldering or crimping
- UL recognized, RoHS compliant, AEC-Q200 qualified
Buy the Buy Vishay NTCALUGO1A Series Temperature Sensor Part Number 104F Online
Purchase the Vishay NTCALUGO1A104F thermistor online today to benefit from its rugged construction, precise temperature sensing, UL recognition, and RoHS compliance. Ideal for surface sensing applications requiring excellent electrical insulation and thermal contact, it features PTFE-insulated copper leads, epoxy coating, and an easy mounting method with M3 screws. With multiple lead length options (38 mm, 80 mm, 160 mm), this thermistor is suitable for industrial, automotive, and other demanding environments. Ensure your project’s success by ordering now for fast delivery and dependable quality.
Order your Vishay NTCALUGO1A104F rugged temperature sensing thermistor today and ensure reliable thermal measurements in your industrial or automotive project.
Frequently Asked Questions
Where can I buy Vishay NTCALUG01A104F?
You can click on the BUY or RFQ button to purchase NTCALUG01A104F from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG01A104F?
You can download the NTCALUG01A104F datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG01A104F?
Vishay
