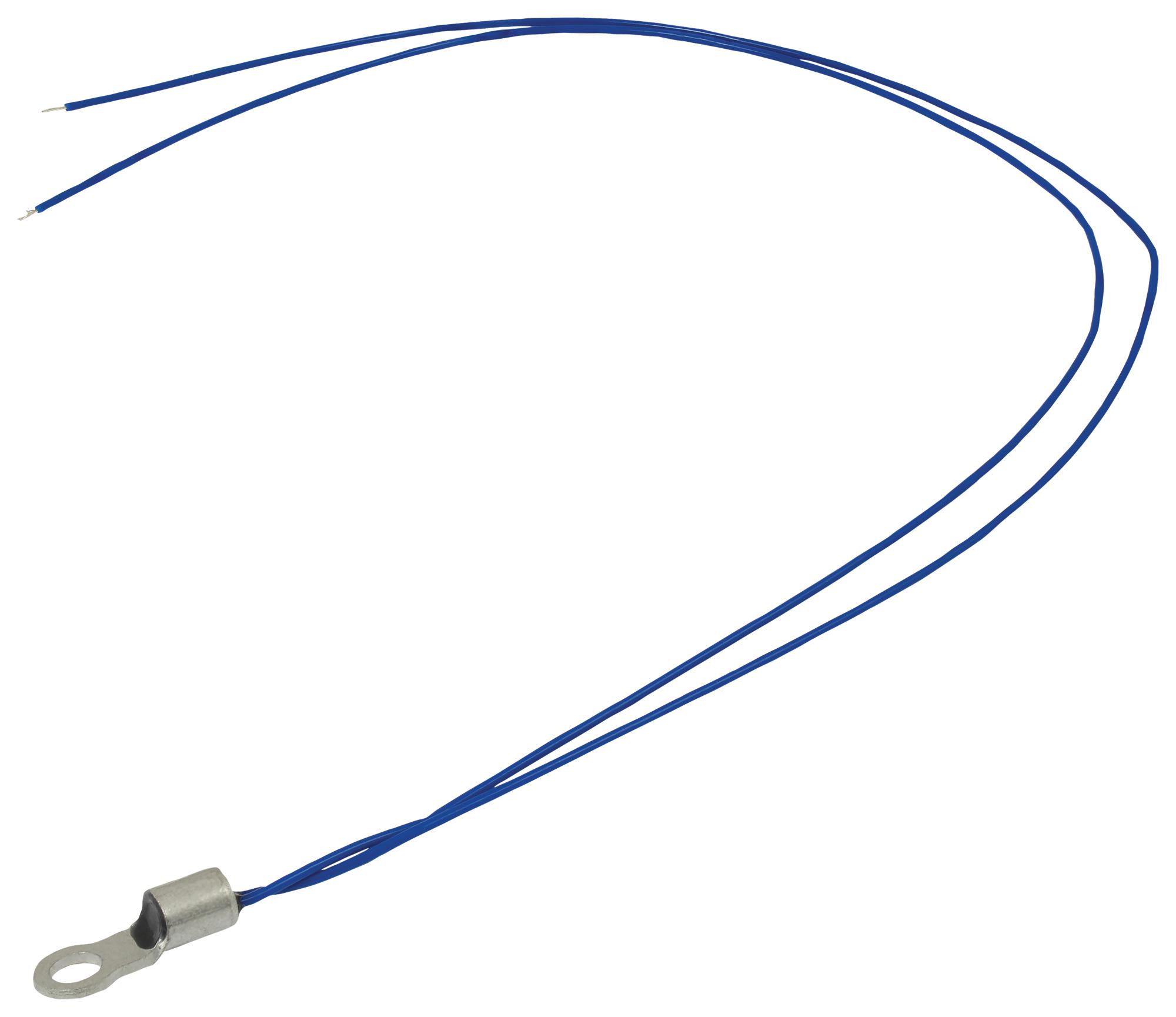

Vishay NTCALUG01T103F Lug Mount NTC Thermistor
This rugged lug mount NTC thermistor sensor is ideal for surface temperature sensing in automotive and industrial environments. Featuring easy mounting with a ring tongue terminal, ETFE insulation cable rated up to 600 V, and AEC-Q200 Grade 1 qualification, it offers high reliability and durability. Suitable for power electronics, battery management, and consumer appliances, it maintains stable performance over a temperature range of -40°C to +150°C. Its compact design ensures easy installation on metal surfaces, making it a versatile choice for demanding applications.
Vishay NTCALUG01T103F Lug Mount NTC Thermistor Specifications:
- Resistance value at 25 °C: 10K Ω ±1%
- Resistance Tolerance: 1% or 2%
- Thermal B-value: 3435K or 3984K ±5%
- Operating Temperature Range: -40°C to +150°C
- Dielectric Withstanding Voltage: 2700 Vac
- Insulation Resistance: 400 MΩ at 500 Vac
- Material: ETFE insulated cable, epoxy coating on thermistor
- Cable Lengths Available: 150 mm, 200 mm, 300 mm, 500 mm
- Lead Wire: AWG26 silver plated copper
- Mounting: On metal surfaces with M3 screw, soldering or crimping leads
- UL Recognized: File E148885
- RoHS Compliant
- Rated Voltage: 600 V
- Dimensions: Refer to detailed millimeter dimensions provided
- Design Qualification: AEC-Q200 Grade 1
Buy the Vishay NTCALUG01T – Reliable Temperature Sensor for Industrial Applications
Order the rugged Lug Mount NTC thermistor sensor today to ensure precise surface temperature measurement in demanding environments. Easy to install with a ring tongue terminal, it offers high durability, stability, and reliable performance across a wide temperature range. Suitable for automotive, power electronics, and industrial applications, this UL recognized sensor is ideal for temperature sensing solutions requiring robust construction and compliance with industry standards. Invest in quality and improve your project’s reliability by purchasing online now.
Buy Vishay NTCALUG01T now and experience unmatched reliability and performance in high-temperature sensing environments.
Frequently Asked Questions
Where can I buy Vishay NTCALUG01T103F?
You can click on the BUY or RFQ button to purchase NTCALUG01T103F from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG01T103F?
You can download the NTCALUG01T103F datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG01T103F?
Vishay
