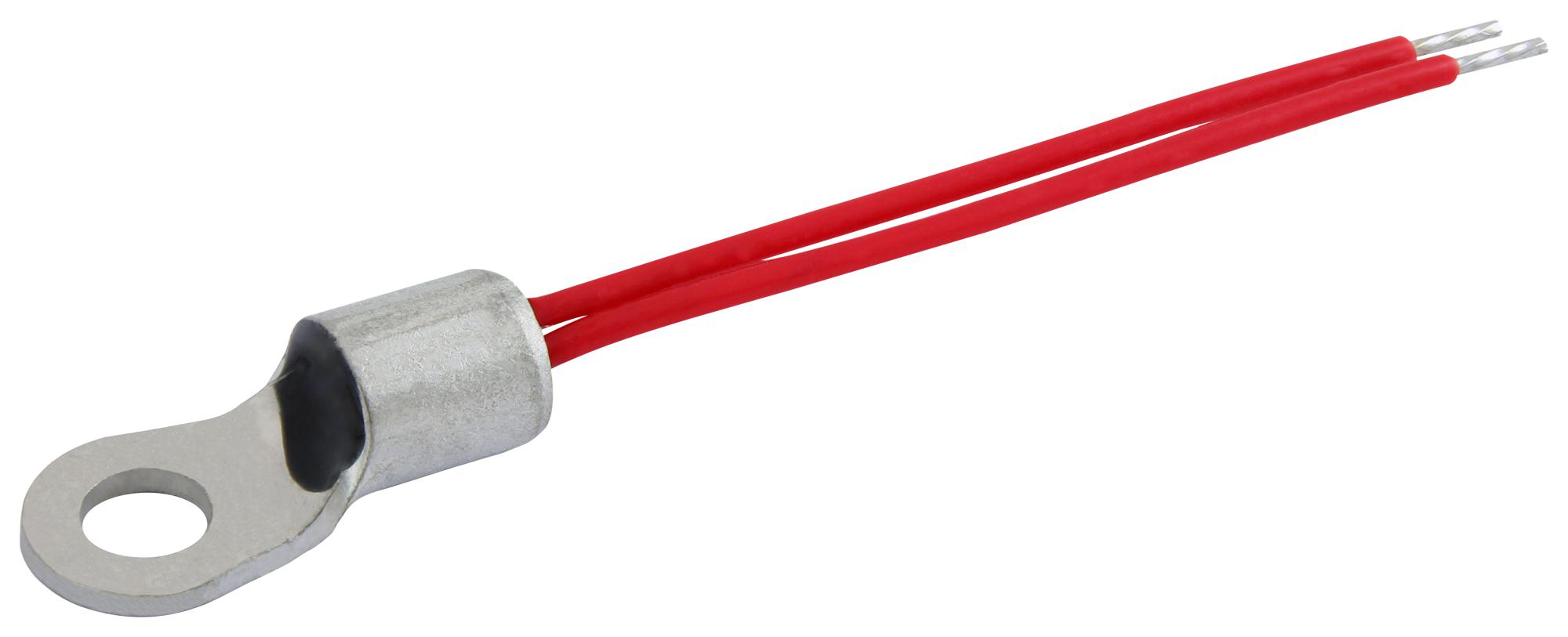

Vishay NTCALUG02A502G Surface Temperature Sensor
This low thermal gradient lug mount NTC thermistor sensor is ideal for surface temperature measurement and control in automotive, industrial, electronic, and consumer applications. AEC-Q200 Grade 1 qualified and UL recognized, it features epoxy-coated chips mounted in a tin plated copper ring lug with PEEK insulated leads. Suitable for screw mounting on metal surfaces, it provides accurate readings with minimal thermal gradient. Available in various resistance values, it is easily soldered or connected to PCBs, making it a reliable choice for temperature sensing where high precision and durability are essential.
Vishay NTCALUG02A502G Surface Temperature Sensor Specifications:
- Resistance Values: 4.7K, 5K, 10K, 100K (±2%), (±1%) tolerance available
- Temperature Range: -40°C to +125°C
- Resistance at 25°C: 4.7K, 5K, 10K, 100K
- Tolerance on Resistance: 2% or 1%
- B-Value (Bases Value): varies from 3435K to 4190K depending on model
- Operating Voltage: 1500 Vac dielectric withstand voltage between terminals and lug
- Thermal Gradient: <0.05 K/°C
- Construction: Epoxy coated thermistor chip in tin-plated copper ring lug
- Leads: PEEK insulated, AWG#30 (0.25 mm) mono-stranded silver-plated nickel
- Mounting: Screw mounting (M8, M3.5, M4, etc.), soldering, or connector
- Climatic Category: 55/126/56
- Weight: Approximately 1.0 g
- Compliance: RoHS, UL recognized, AEC-Q200 Grade 1 qualified
Buy the Vishay Series NTCALUGO2A Surface Temperature Sensor: NTCALUG02A502G
Order Vishay NTCALUG02A502G online today and enjoy reliable surface temperature measurement in automotive, industrial, and consumer applications. This high-quality lug mount NTC thermistor features epoxy coating, PEEK insulated leads, and a copper ring lug for easy screw mounting. It provides accurate readings across a wide temperature range from -40°C to +125°C. The device is UL recognized and AEC-Q200 Grade 1 qualified, ensuring exceptional durability, minimal thermal gradient, and safe operation in demanding environments. Perfect for heat-sink monitoring, control systems, and temperature-sensitive equipment.
Get Vishay NTCALUG02A502G today—built for automotive and industrial surface temperature measurement with high accuracy and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay NTCALUG02A502G?
You can click on the BUY or RFQ button to purchase NTCALUG02A502G from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG02A502G?
You can download the NTCALUG02A502G datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG02A502G?
Vishay
