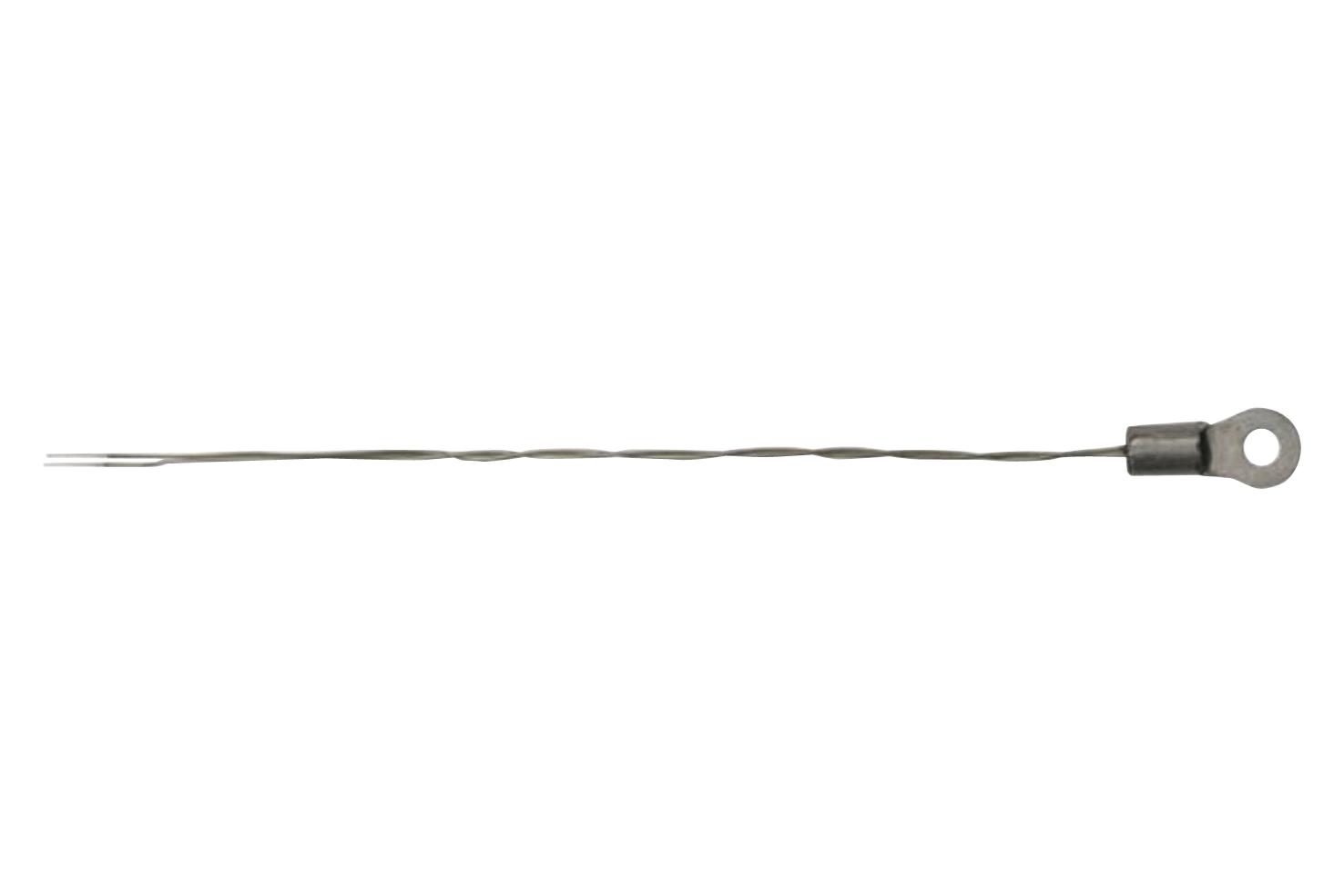

Vishay NTCALUG03A473HA Surface Temperature Thermistor
The NTCALUGO3A series features miniature insulated chip thermistors with a negative temperature coefficient, mounted inside a small tin-plated copper lug for surface temperature sensing. Ideal for limited-space applications, these sensors provide fast response times and accurate surface measurements in various electronic and industrial environments. They are suitable for computer equipment, power electronics, LED heat sinks, and automotive systems, offering reliable performance with optional connectors rated for +85°C, RoHS compliance, and UL/cUL recognition. Installation is versatile, using screws or soldered connections, with optional wire-to-wire or wire-to-board connectors.
Vishay NTCALUG03A473HA Surface Temperature Thermistor Specifications:
- Resistance value at 25 °C: 10K ohms
- Tolerance: 2% or 3%
- B25/50: 3740 to 3984 K
- Operating temperature range: -40°C to +125°C
- Response time: 35 ms
- Thermal time constant: <5 s
- Dissipation factor: 10 mW/°C
- Dielectric withstand voltage: 1000 Vac between terminals and lug
- Housing material: Tin-plated copper lug
- Lead wire: AWG#32 silver-plated nickel, diameter 0.20 mm, insulated with ETFE
- End wire: Soldered, welded, or crimped options
- Connector options: JST ZHR-2 crimped or wire-to-wire connectors
- Dimensions: approximately 11.52 mm length, 8.10 mm outer diameter, with mounting hole options
- Certifications: cULus, UL recognized, RoHS compliant
- Mounting: screw mounting via M2 or M3 screws, solder, crimp, or weld connections
Buy the Vishay Series NTC Surface Temperature Thermistor: NTCALUG03A473HA
Purchase the Vishay NTCALUGO3A surface temperature thermistor online today. Designed for precise surface sensing in limited space, it offers fast response, RoHS compliance, and UL recognition. Ideal for electronics, industrial, and automotive applications, this thermistor features a small copper lug, optional connectors rated for +85°C, and versatile mounting options. Enhance your system’s thermal management with this reliable, high-quality sensor that ensures accurate temperature control, durability, and easy installation—available now for quick online ordering.
Get Vishay NTCALUGO3A today—built for fast response and reliable surface temperature measurement in tight spaces.
Frequently Asked Questions
Where can I buy Vishay NTCALUG03A473HA?
You can click on the BUY or RFQ button to purchase NTCALUG03A473HA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG03A473HA?
You can download the NTCALUG03A473HA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG03A473HA?
Vishay
