Vishay NTCALUG54A103GA Surface Mount NTC Thermistor

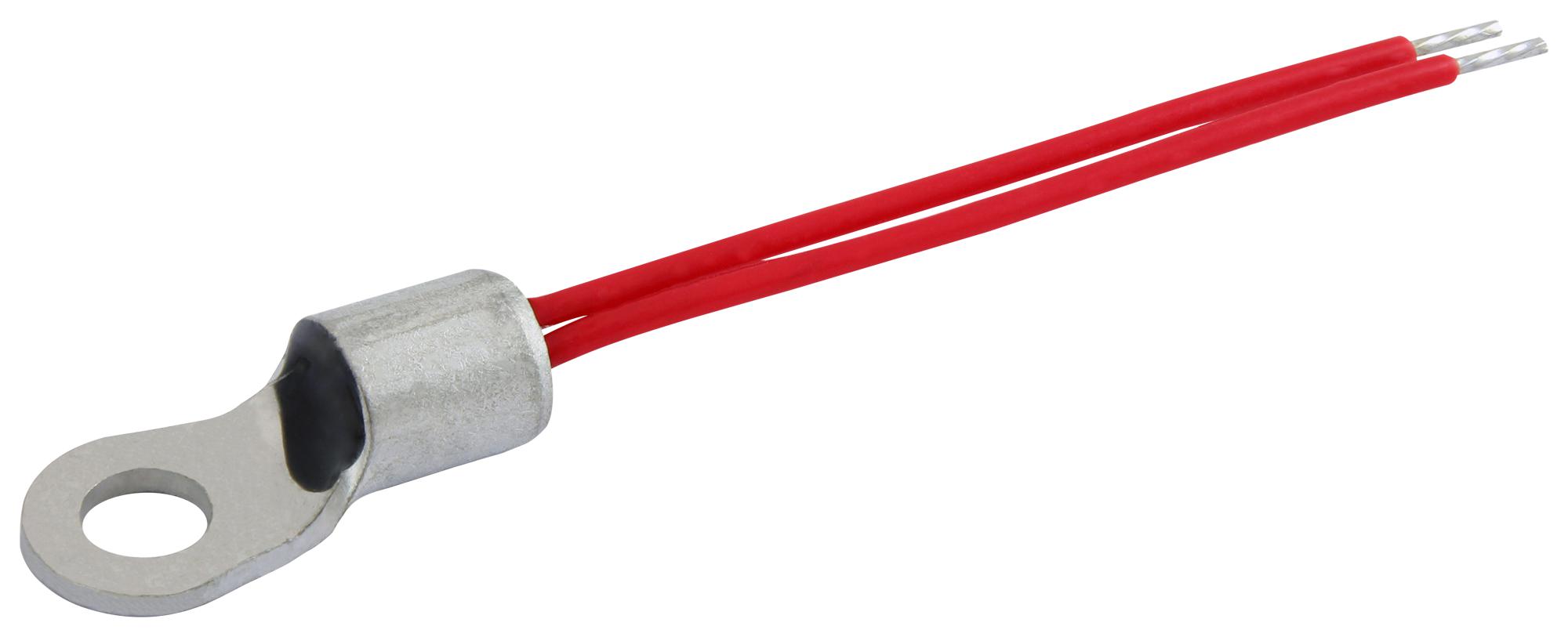

The NTCALUG54A103GA is a rugged, surface-mount NTC thermistor sensor designed for reliable thermal contact and electrical insulation in industrial applications. It features a soldered chip on AWG#24 stranded copper leads with PTFE insulation, attached to a tin-plated copper ring lug for easy mounting via M5 screw. Suitable for surface sensing, it offers excellent thermal contact with metal surfaces, high voltage withstand, and RoHS compliance. Perfect for temperature measurement and circuit protection in harsh environments, this thermistor provides durable, accurate performance with IEC and UL recognition.
Vishay NTCALUG54A103GA Surface Mount NTC Thermistor Specifications:
- Resistance value at 25 °C: 10K ohms
- Tolerance on R at 25 °C: ±2%
- Operating temperature range: -40 to +150°C
- Dissipation factor: 23 mW/K
- Thermal time constant: 275 s
- Voltage withstand: 1800 Vac between terminals
- Material: PTFE insulated copper leads, epoxy coating, tin-plated copper ring lug
- Mounting: M5 screw, leads suitable for soldering or crimping
- Cable length options: 38 mm, 150 mm, 350 mm
- RoHS compliant, UL recognized, PCB soldering compatible, rugged construction
Buy the Vishay NTCALUG54A103GA – Reliable Thermal Sensor for Industrial Applications
Enhance your industrial temperature sensing projects with the Vishay NTCALUG54A103GA. This rugged, easy-to-mount NTC thermistor features PTFE insulation, a tin-plated copper ring lug, and a wide operating temperature range. Suitable for surface sensing, it provides excellent electrical insulation and thermal contact. With UL recognition, RoHS compliance, and multiple cable length options, it ensures reliable performance in harsh environments. Purchase online now for high-quality temperature measurement solutions designed for durability and precision in industrial applications.
Order your Vishay Series NTCALUG54A103GA thermistor today and enjoy dependable temperature sensing with easy mounting and high-voltage resilience.
Frequently Asked Questions
Where can I buy Vishay NTCALUG54A103GA?
You can click on the BUY or RFQ button to purchase NTCALUG54A103GA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG54A103GA?
You can download the NTCALUG54A103GA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG54A103GA?
Vishay
