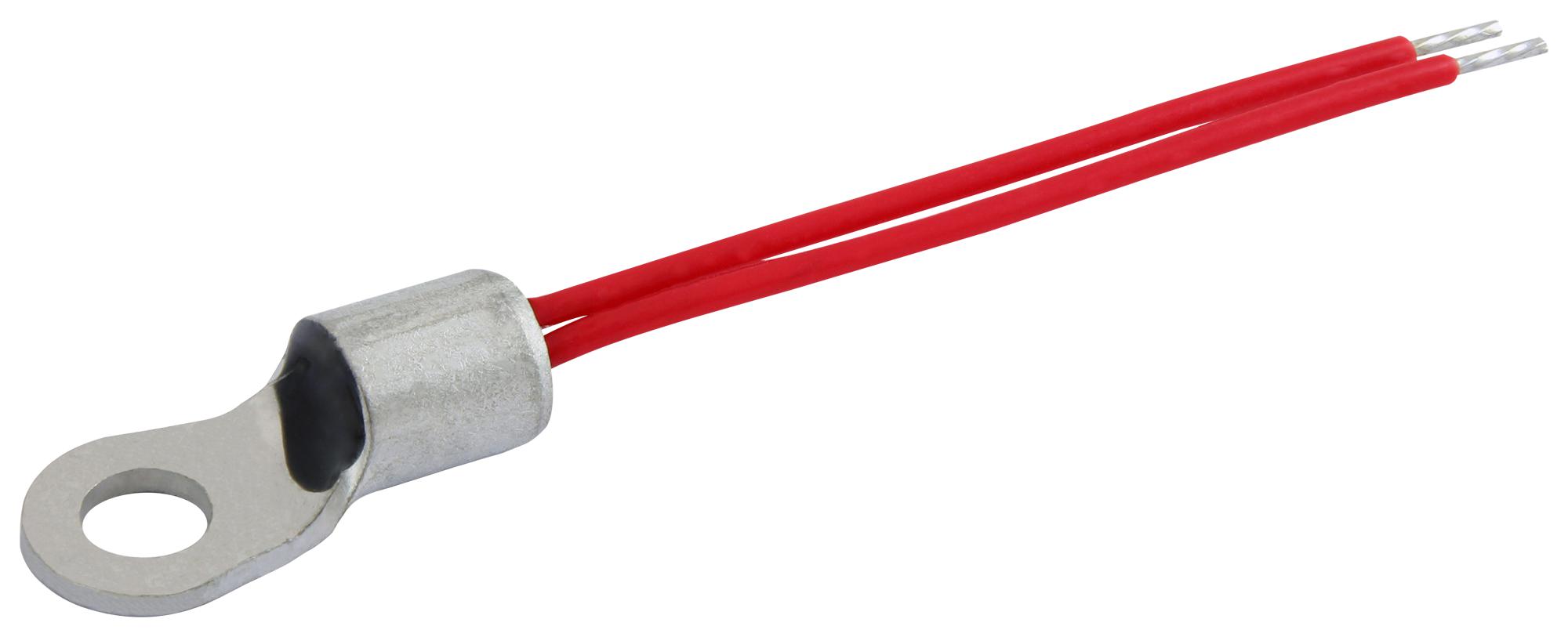

Vishay NTCALUG85A103GA Surface Sensing Thermistor
This rugged lug mount NTC thermistor sensor is ideal for surface sensing, offering easy mounting via a ring terminal, durable construction, and PTFE insulated cable. Suitable for automotive applications and qualified under AEC-Q200 grade 1, it ensures reliable thermal contact and electrical insulation. The sensor is UL recognized (file E148885), making it suitable for demanding environments. Its epoxy-insulated NTC chip soldered to AWG#24 stranded copper leads provides excellent thermal response. Available in various lengths, it is perfect for surface temperature monitoring in industrial and automotive settings.
Vishay NTCALUG85A103GA Surface Sensing Thermistor Specifications:
- Resistance value at 25 °C: 10K ± 2%
- Tolerance on resistance: 22%
- B-value (25/85°C): 3435 to 3084 K
- Operating temperature range: -40°C to +150°C
- Dissipation factor: 23 mW/K
- Thermal time constant: approximately 275 s
- Voltage between terminals: 1800 Vac
- Lead type: AWG#24 stranded silver-plated copper
- Cable insulation: PTFE, rated 600 V
- Mounting: M6 screw; suitable for screwing onto metal surfaces
- Material: epoxy-coated, copper lug and PTFE-insulated leads
- UL recognized, RoHS compliant, AEC-Q200 qualified
- Dimensions: Refer to detailed diagram, length options include 38 mm and 150 mm
- Weight: Approximately 9 grams
- Certifications: UL (file E148885), RoHS, AEC-Q200
Buy the Vishay Series NTCALUG85A Thermistor: NTCALUG85A103GA
Purchase Vishay NTCALUG85A103GA today and enjoy a rugged, reliable surface sensing thermistor with PTFE insulation, easy mounting, and automotive-grade AEC-Q200 qualification. Designed for precise temperature measurement in industrial and automotive applications, this UL recognized thermistor offers excellent thermal contact, durable construction, and versatile lengths for your specific needs. Order online now and ensure accurate, dependable temperature monitoring for your equipment with quick delivery and excellent support.
Get Vishay NTCALUG85A103GA today—built for durability, precision surface sensing, and automotive-grade reliability.
