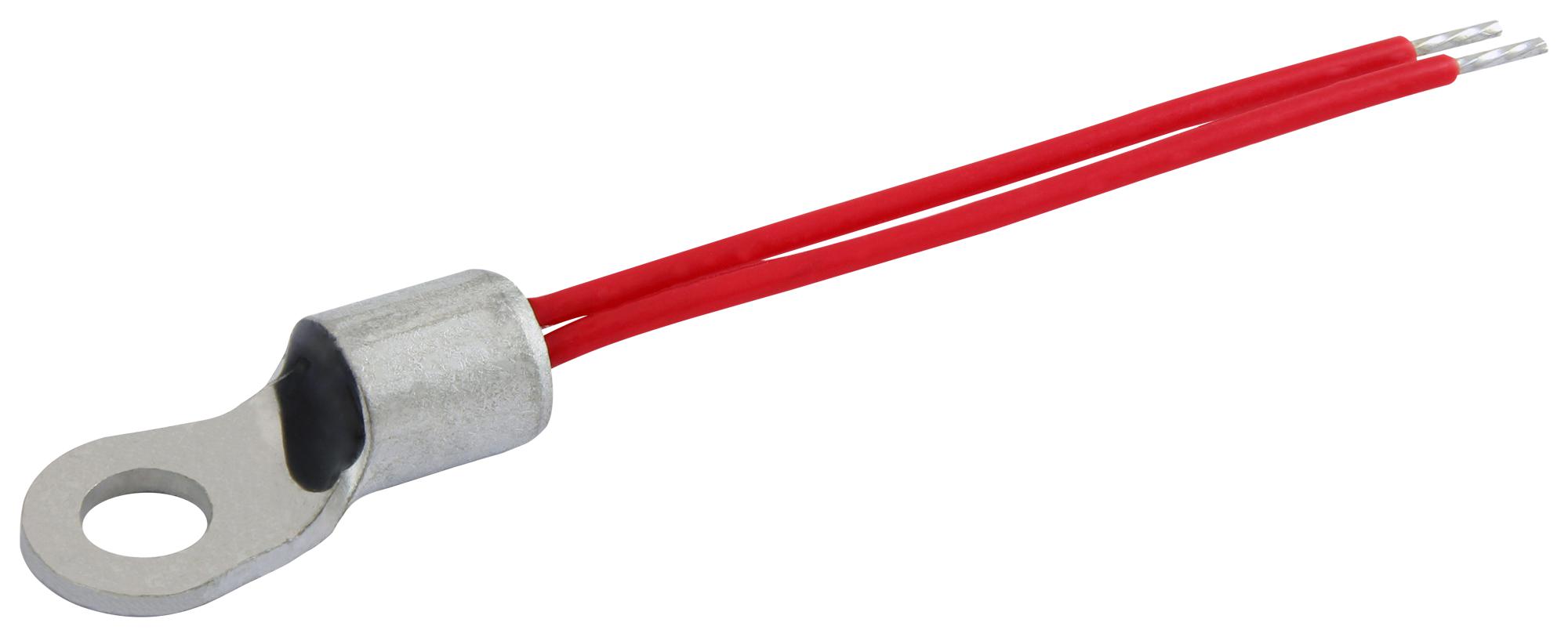

Vishay NTCALUG91A103GA Lug Mount Thermistor
This rugged lug-mount NTC thermistor sensor is designed for surface sensing applications requiring reliable electrical insulation and thermal contact. Featuring easy mounting with a ring tongue terminal, it uses PTFE-insulated cable rated for 600 V, and is suitable for automotive and industrial environments. Certified for AEC-Q200 Grade 1 and UL recognition, it ensures durability and safety in demanding conditions. The device is soldered to AWG#24 stranded silver-plated copper leads, with options for different cable lengths, making it versatile for various installation needs.
Vishay NTCALUG91A103GA Lug Mount Thermistor Specifications:
- Resistance value at 25 °C: 10K ±2%
- Tolerance on R25-value: #2 to #3%
- B value (B25/85): 3435 to 3084 K
- Tolerance on B value: +5 to -1%
- Operating temperature range: -40°C to +150°C
- Temperature coefficient: Negative temperature coefficient (NTC)
- Material: PTFE insulated cable, tin-plated copper ring lug
- Cable length options: 38 mm, 150 mm, 300 mm
- Rated voltage: 600 V AC
- Mounting: M4 stud screw, suitable for metal surfaces
- Certification: AEC-Q200 grade 1, UL listed (E148885)
- Weight: Approximately 9 grams
- Dimensions (millimeters): Refer to dimensions chart
- Construction: Rugged, with epoxy coating for insulation
- Application: Surface sensing, automotive, industrial equipment
Buy the Vishay Series NTCALUGO1A Thermistor: NTCALUGO1A103GA
Order the Vishay NTCALUGO1A103GA lug mount thermistor for reliable surface temperature sensing in demanding environments. Its rugged construction, PTFE-insulated cable rated for 600 V, and compatibility with metal surfaces make it ideal for automotive and industrial applications. Certified by AEC-Q200 Grade 1 and UL recognized, this sensor offers excellent thermal contact and electrical insulation. Available in customizable lengths, it ensures easy installation and durability. Buy online now to enhance your temperature measurement solutions and ensure long-term performance in challenging conditions.
Get Vishay NTCALUGO1A103GA today—built for precise temperature sensing and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay NTCALUG91A103GA?
You can click on the BUY or RFQ button to purchase NTCALUG91A103GA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG91A103GA?
You can download the NTCALUG91A103GA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG91A103GA?
Vishay
