Vishay NTCALUG91A103H151A Temperature Sensor

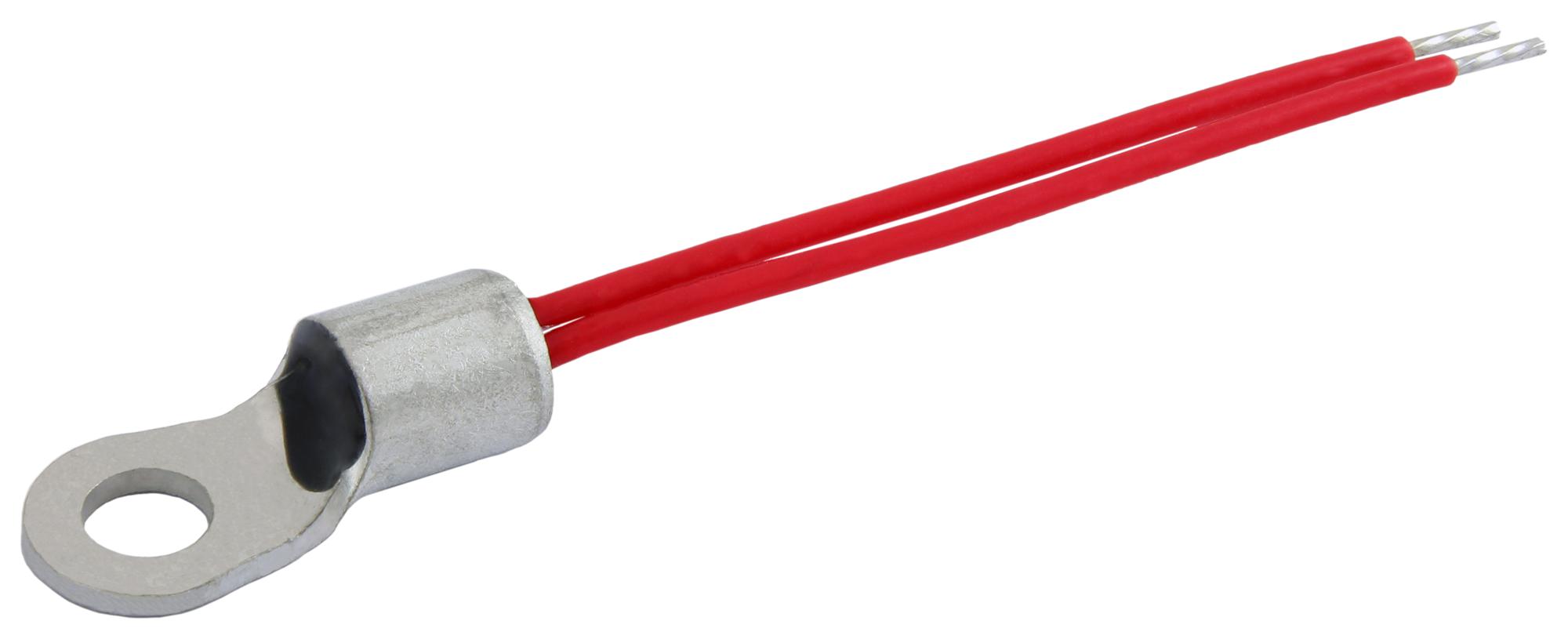

The NTCALUG91A103H151A is a rugged, surface-mount NTC thermistor designed for reliable temperature sensing and inrush current limiting in industrial and electronic applications. It features a high accuracy resistance value of 10K at 25°C, with a tolerance of ±3%. The thermistor is housed with PTFE insulation on AWG#24 stranded silver-plated copper leads, attached to a tin-plated copper ring lug for easy mounting. Suitable for use in electrical insulation and thermal contact applications, it complies with RoHS, UL, and AEC-Q200 standards, making it ideal for precise temperature control and sensing in challenging environments.
Vishay NTCALUG91A103H151A Temperature Sensor Specifications:
- Resistance at 25°C: 10K
- Tolerance: ±3%
- B-value: 3435K to 3084K
- Operating Temperature Range: -40°C to +150°C
- Dissipation Factor: 23 mW/K
- Thermal Time Constant: 275 seconds
- Voltage Between Terminals: 1800 Vac
- Weight: 1.6 grams
- Housing: PTFE insulated leads with epoxy coating, mounting on metal surfaces via M4 screw
- Material: Silver-plated copper leads, tin-plated copper ring lug
- Standards: RoHS, UL recognized, AEC-Q200 qualified
- Dimensions: Refer to dimensions in millimeters for mounting and electrical connections
Buy the Vishay 10K Series – Reliable Temperature Sensor for Industrial Applications
Buy Vishay 10K thermistor online—ideal for industrial temperature measurement, inrush current limiting, and thermal contact applications. This rugged, RoHS-compliant sensor features PTFE insulation on silver-plated copper leads, attached to a sturdy copper ring lug for secure mounting. Suitable for surface sensing in challenging environments, it offers high accuracy, UL recognition, and AEC-Q200 qualification. Easy to install via M4 screw, the sensor’s design ensures reliable operation, precise temperature measurement, and long-term stability in electrical and electronic systems. Order now to enhance your thermal management solutions.
Get Vishay 10K Series thermistor today—built for precise temperature sensing and long-lasting durability in industrial environments.
