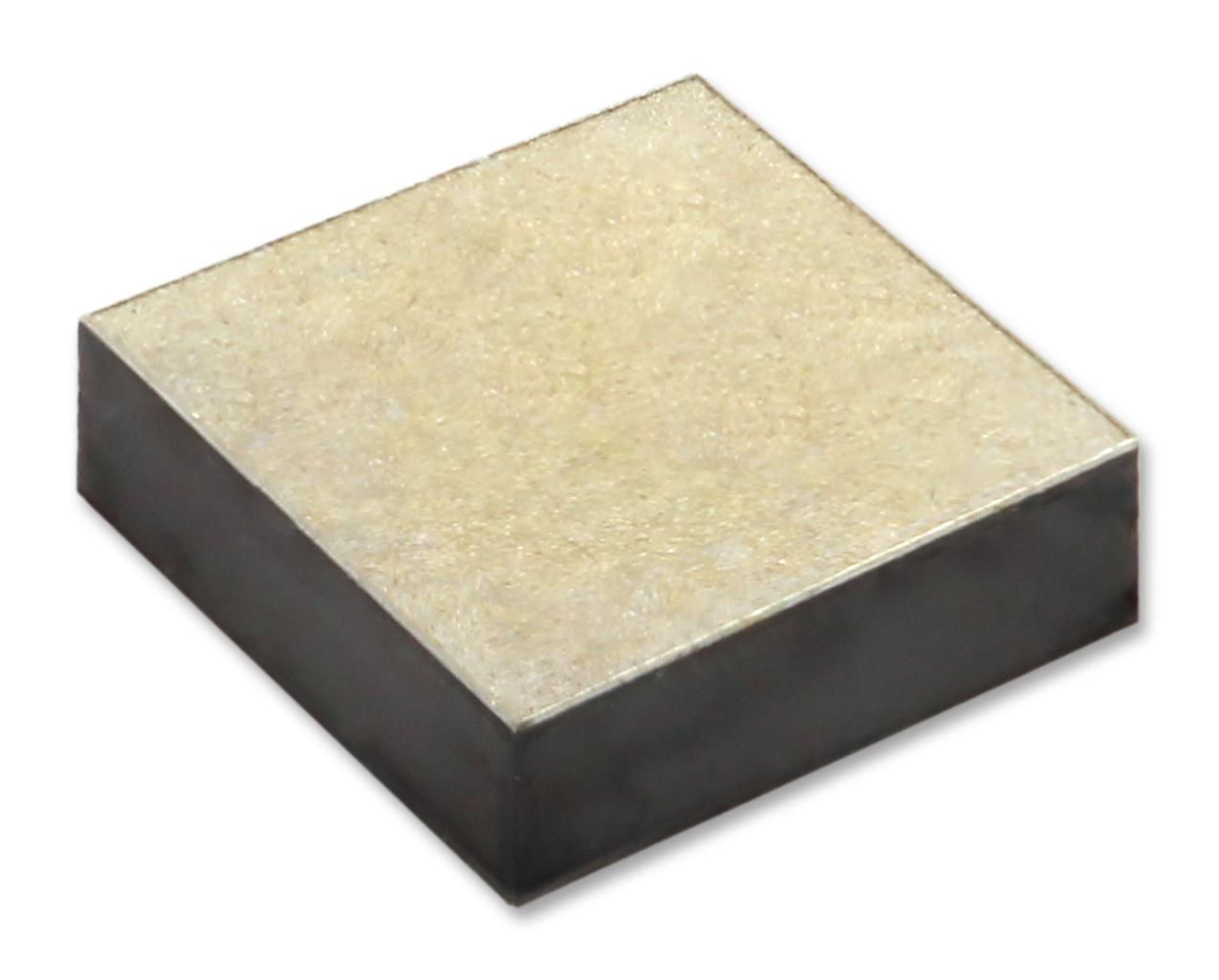

Vishay NTCC200E4123FT High-Temperature Thermistor Die
The Vishay NTCC200E4123FT is a leadless NTC thermistor die designed for high temperature sensing, control, and compensation in demanding environments. Suitable for wire bonding with aluminum or gold wires, this device features a wide operating temperature range from -55°C to +175°C, making it ideal for high-power applications such as IGBT modules in electric and hybrid vehicles, semiconductor protection, and inverter overheat protection. Its RoHS compliance and encapsulation options ensure long-term stability and reliability, supported by comprehensive design-in resources from Vishay.
Vishay NTCC200E4123FT High-Temperature Thermistor Die Specifications:
- Resistance value at 25°C: 4.7K to 20K ohms
- Tolerance: ±1%, ±2%, ±3%, ±5%
- Bosjas value: 3435 to 3865 K
- Operating temperature range: -55°C to +175°C
- Response time (63.2%): 3 seconds
- Maximum power dissipation: 50 mW
- Dimensions: WwW 2+01 mm, T 0.7 mm max
- Wire bonding surface: WwW 8+03 mm, F 3.5 mm ±0.05
- Encapsulation: Recommended for silicon or epoxy
- Delivery: On 8mm embossed blister tape, 2000 parts per reel
- Application: High temperature sensing, IC protection, inverter modules
- Qualification: AEC-Q200
Buy the Buy Vishay NTCC200E4123FT Part Number 3740 Online
Enhance your electronic systems with the Vishay High-Temperature Thermistor Die NTCC200E4123FT, designed for precise sensing in harsh environments. This leadless device offers excellent thermal stability, wide operating temperature from -55°C to +175°C, and is suitable for wire bonding with aluminum or gold wires. Delivered on blister tape, it supports automated assembly, ideal for automotive inverters, power modules, and semiconductor protection circuits. Trust Vishay’s quality to ensure long-term performance and reliability for your critical industrial applications.
Order your Vishay SeriesNTCC200E4123FT today and get reliable high-temperature thermistor die for precision sensing and system protection.
